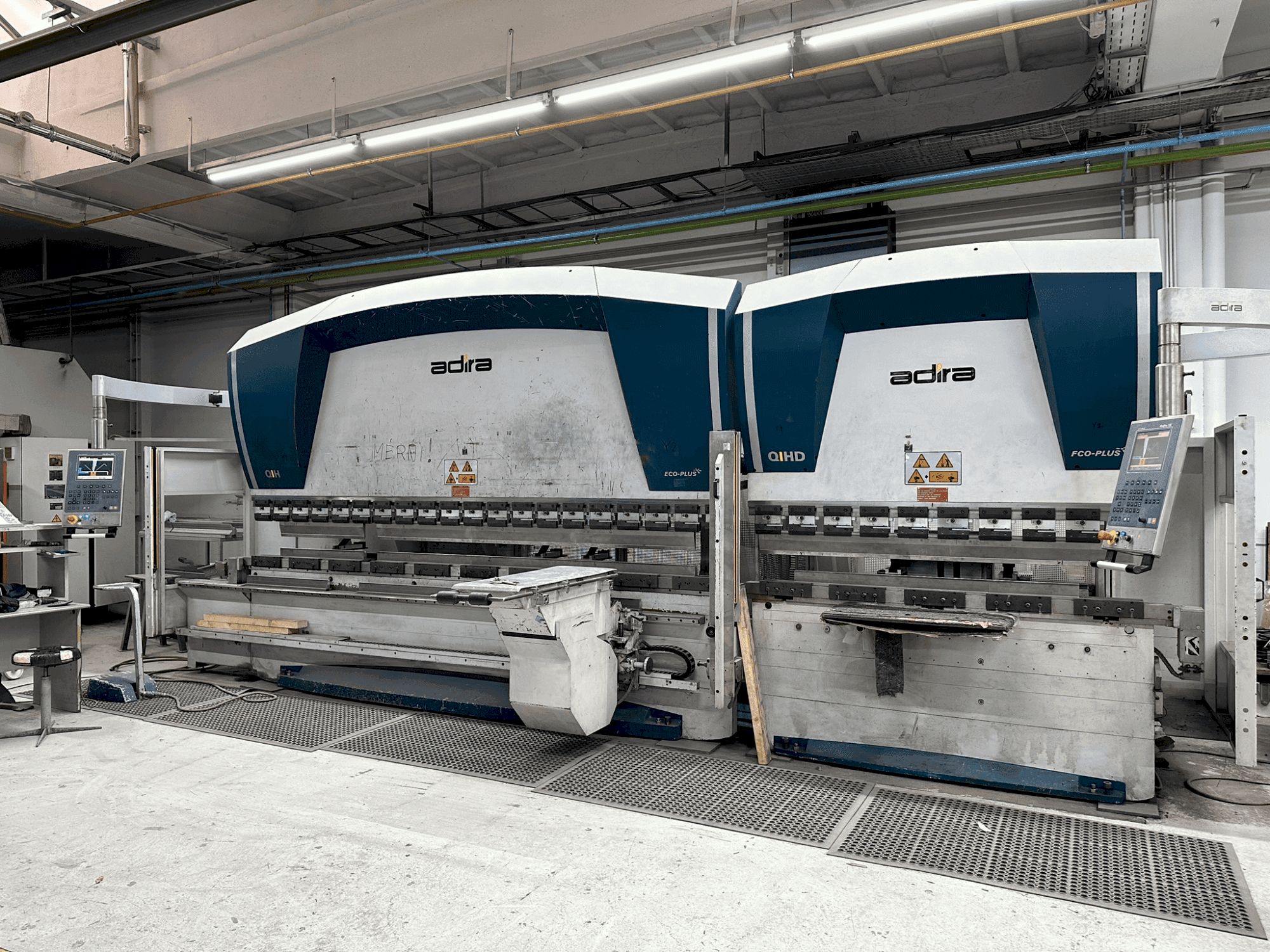

This ADIRA QIHD-5040 + QIHD-5020 bending was manufactured in 2008. It features a maximum bending length of 4000 mm and a machining length of 4050 mm for the QIHD-5040, and 2000 mm bending length with 2050 mm machining length for the QIHD-5020. Both models offer robust performance with significant force capacities and efficient speeds in pressing and returning. Ideal for high-precision tasks, the ADIRA press machine we have for sale is a valuable addition to any workshop. Contact us for more information.
Overview
- brand: ADIRA
- year: 2008
- MODEL: QIHD-5040 + QIHD-5020
- application type: Bending
- Location: Hungary
- machine type: Press Brake
Technical Information - ADIRA QIHD-5040 + QIHD-5020
Movement
- X-axis Travel: 630 mm
Technical Specification
- Bending Length: 4000 mm
- Pressing Force: 1500 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Back gauge speed:induction motor: 125 mm/s (0. 41 in/s)
- Servo motor: 500 mm/s (1. 64 in/s)
Technical Machine Benefits
- Approach speed: 100 mm/s (3. 87 in/s)
- Pressing speed: 7 mm/s (0. 28 in/s) at 50 hz, 8 mm/s (0. 31 in/s) at 60 hz
- Return speed: 65 mm/s (2. 52 in/s) at 50 hz, 80 mm/s (3. 1 in/s) at 60 hz
- Machining length: 4050 mm (13. 28 feet)
- Distance between columns: 3150 mm (10. 33 feet)
- Frame depth: 400 mm (15. 7 inches)
- Maximum stroke length: 160 mm (6. 3 inches)
- Free height (without tool): 400 mm (15. 7 inches)
- Closed height (without tool): 240 mm (9. 4 inches)
- Standard upper beam width: 195 mm (7. 7 inches)
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
