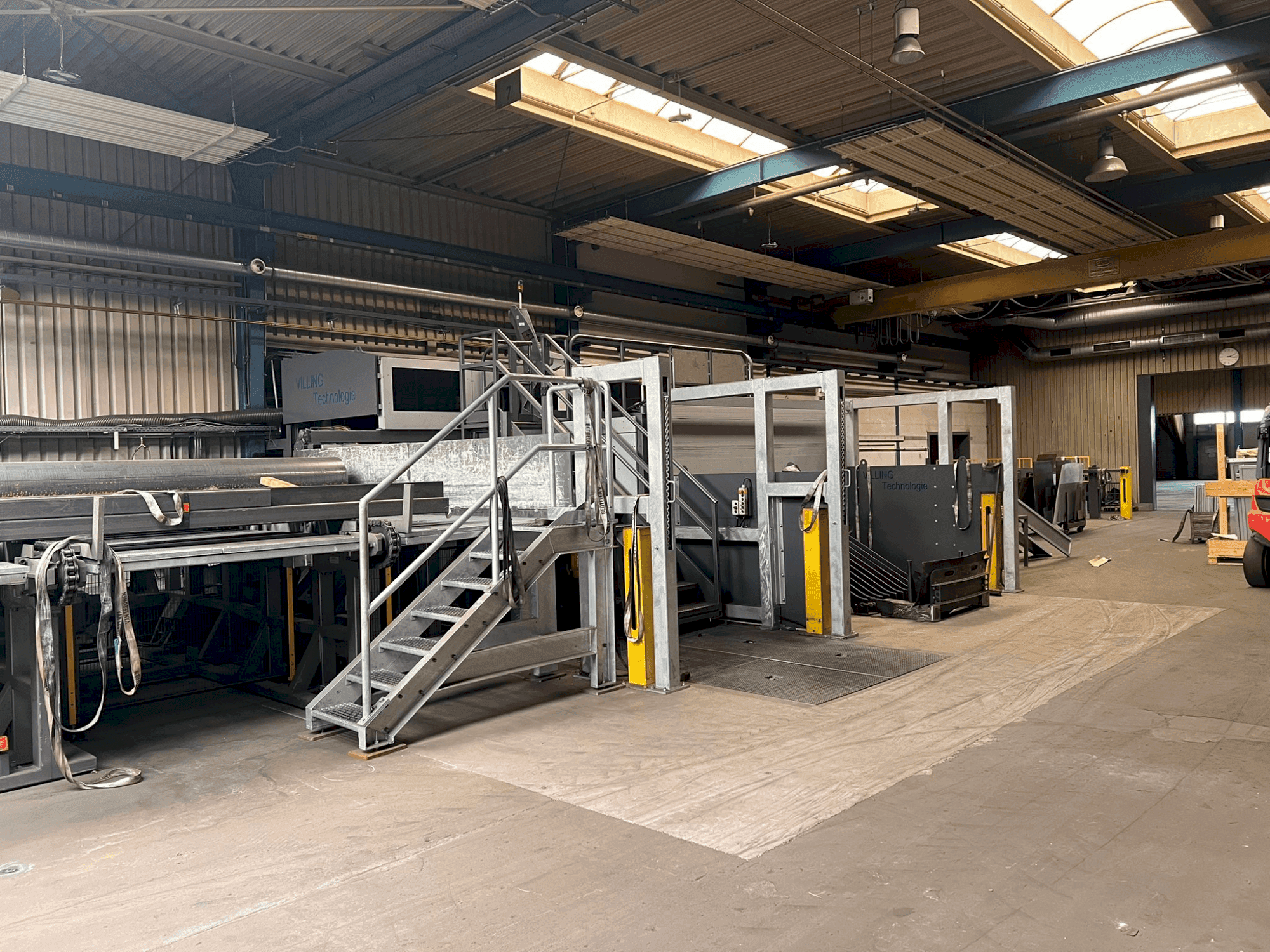

ADIGE LT 20

Photo Gallery

ADIGE - LT 20DE-CUT-ADI-2015-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used ADIGE LT 20 For Sale | gindumac.com

Show in original language

This 5-axis ADIGE LT 20 fiber laser cutting machine was manufactured in 2015. It features a 5-axis CNC-controlled system, capable of handling tube lengths from 4,000 mm to 14,000 mm and cutting steel pipes up to a wall thickness of 16 mm. It includes a ROFIN SINAR DC 035 CO2 laser source, Artube CAD and CAM 3D software, and a fully automatic unloading station. Consider the opportunity to buy this ADIGE LT 20 fiber laser cutting machine. Contact us for more information.

Overview

brand: ADIGE
year: 2015
MODEL: LT 20
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - ADIGE LT 20

Control Unit

Control Brand: SIEMENS

Movement

Number of Axes: 5
X-axis Travel: 2000 mm
Y-axis Travel: 1280 mm
Z-axis Travel: 700 mm

Additional Information

Additional equipment

5-axis CNC-controlled 3D tube laser cutting system
Protective cabin and safety fence
Tube loading station with single chain (double chain) L 14000 mm
Disposition for 18 m loader
Prefabricated part unloading station with single chain in basic version L 14000 mm
Cutting waste collection container and conveyor chain for fully automatic removal
Artube CAD 3D software with Artube CAD and CAM software modules
JUMBO Loader and Unloader Extensions and accessories
Renishaw LP2 Probe Module
Fine dust filter and extraction system

Machine Benefits

Technical Machine Benefits

Fully automatic settings with manual options
Integration with rofin sinar dc035 laser source without compensator
Indoor cooling unit installation with a closed circuit for laser source
Maximum wall thickness: 16 mm in 3d cutting for steel pipes
Maximum weight: 200 kg per meter
Machinable bar lengths: from 4000 mm to 14000 mm
Longer unloading length parts: from 3000 mm or up to 18000 mm
Unloading of long parts: 3000 - 18000 mm through fully automatic front unloading station
Unloading length of short parts: up to 3000 mm through a fully automatic front discharge station with finished part buffer

Extra Information

Tools Laser source power: 3500 W Cutting methods: 2D and 3D up to a maximum of 45 degrees Pipe measuring methods: Torsion, centering, precise location of reference machining using RENISHAW probe and measuring software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
