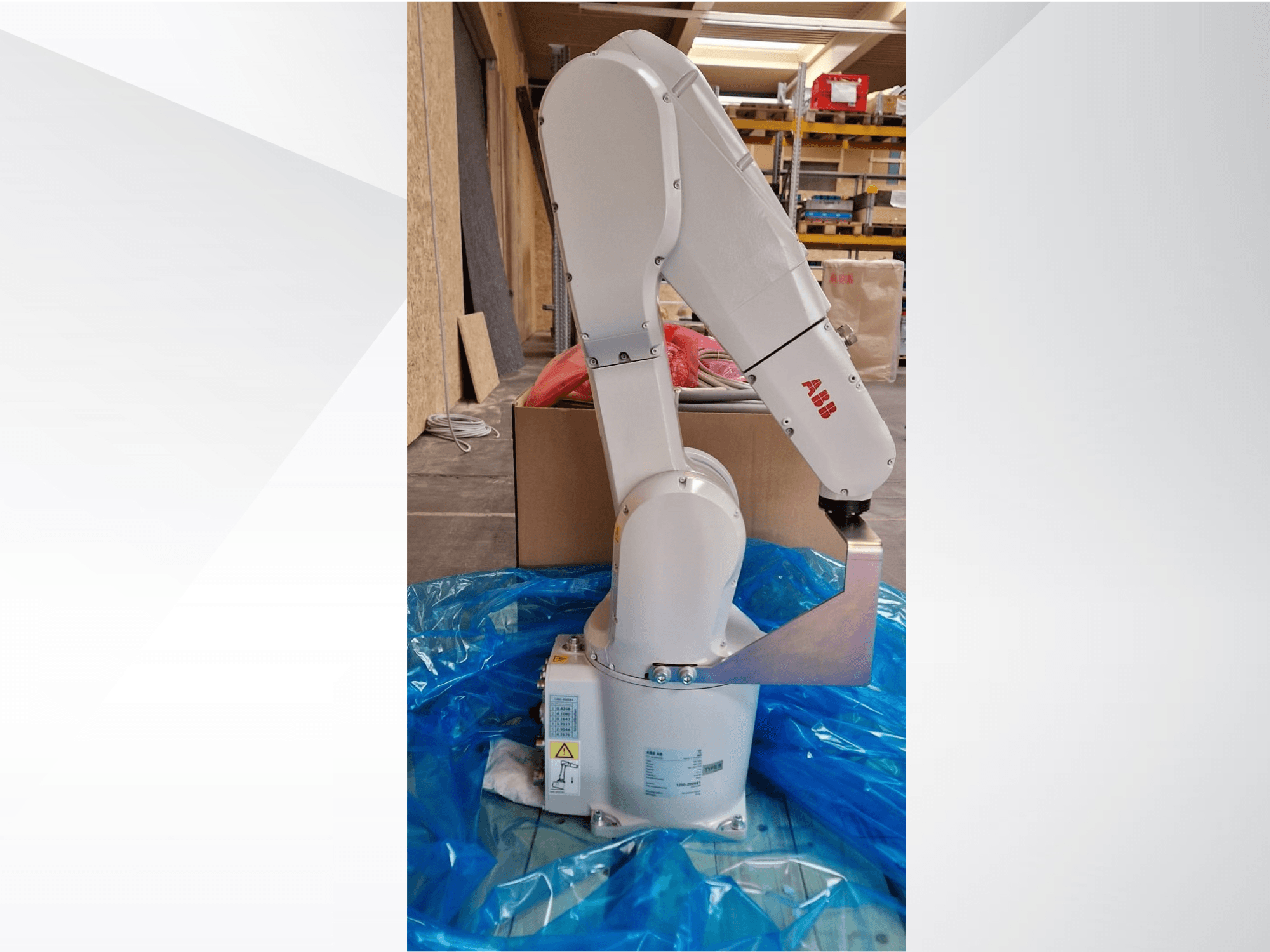

This ABB IRB 1200-7/0.9 Omicore robot arm was manufactured in 2025. It is brand new and in its original packaging with a manufacturer’s warranty valid until September 2026. It features a reach of 901 mm, supports a payload of 7 kg, and operates efficiently with a power consumption of just 0.38 kW. Its compact footprint (210 × 210 mm) and weight of 54 kg make it ideal for varied applications. Contact us for more information about this machine.
Overview
- brand: ABB
- year: 2025
- MODEL: IRB 1200-7/0.9 Omicore
- application type: Robotics
- Location: Austria
- machine type: Robot Arm
- control unit brand:
Technical Information - ABB IRB 1200-7/0.9 Omicore
Dimensions
- Machine Weight: 54 kg
Movement
- Number of Axes: 6
Additional Information
General

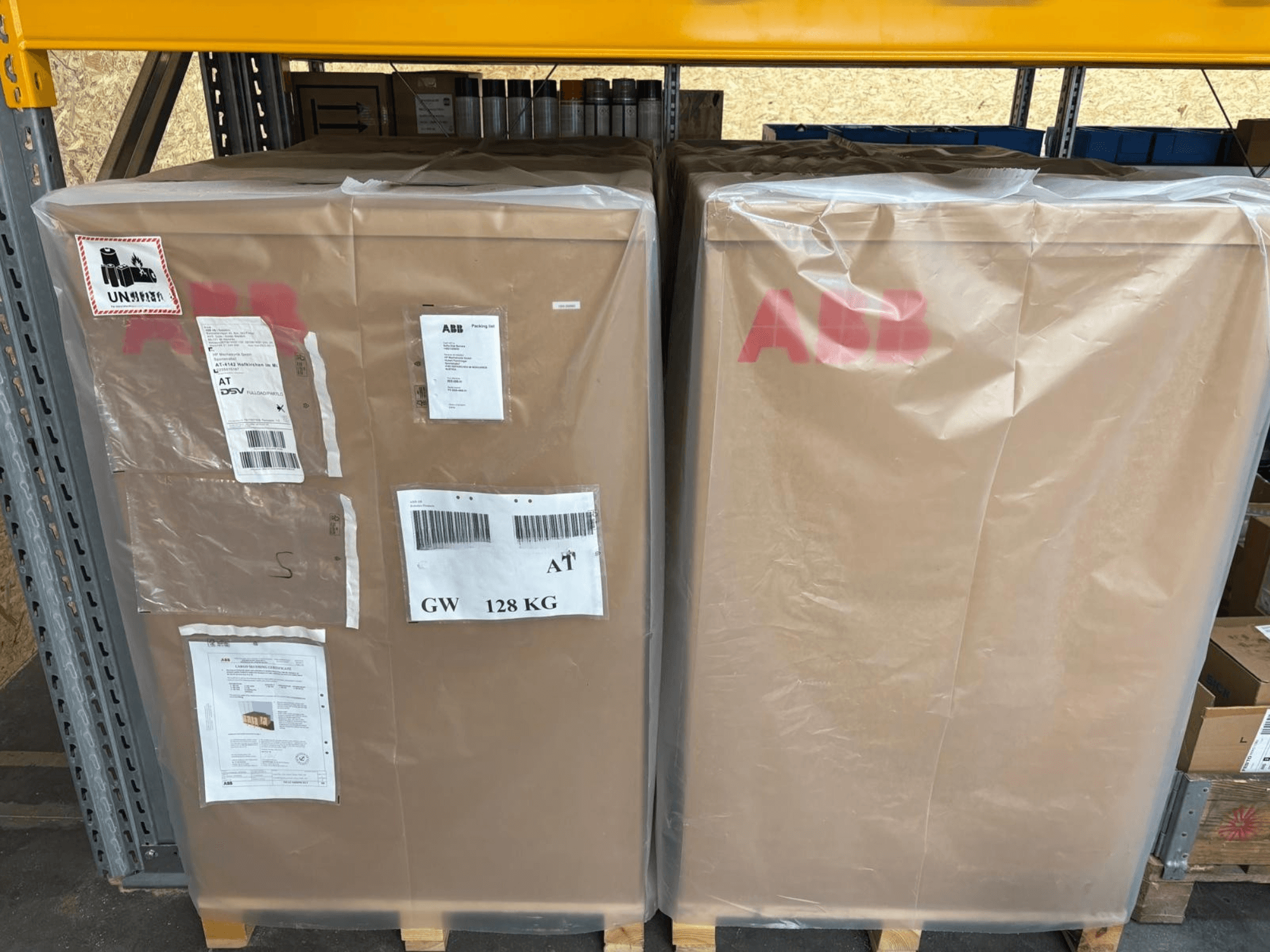

2 units available
Robot: brand new, in original packaging, manufacturer warranty until 23.09.2026
Type: ABB IRB 1200-7/0.9 OmniCore
Controller: OmniCore C30
SafeMove: No
Profinet: Yes
Ethernet: Standard
Environmental Conditions
Ambient temperature: +5 °C to +45 °C
Relative humidity: max. 95%
Noise level: max. 70 dB(A)
Emissions: EMC/EMI shielded, ESD certified
Performance
Reach: 901 mm
Payload: 7 kg
Additional arm load: 0.5 kg
Position repeatability: 0.013 mm
Cycle time (1 kg pick & place, 25 × 300 × 25 mm): 0.4 s
Speed & Acceleration
Max. TCP speed: 7.3 m/s
Max. TCP acceleration: 35 m/s²
Acceleration time (0–1 m/s): 0.06 s
Electrical Data
Mains voltage: 200–600 V, 50/60 Hz (controller: 220–230 V AC +10% / -15%)
Power consumption: 0.38 kW
Dimensions & Weight
Robot footprint: 210 × 210 mm
Weight: 54 kg
Manipulator
Variant: IRB 1200-7/0.9
Color: ABB Graphite White
Protection: Base 40
Cabling: from the side of the base
Controller
OmniCore C30
Housing: Base
19" rack mounting kit: Yes
Operating temperature: max. 45 °C
Network: wired LAN, 5-port Ethernet switch
Additional power supply: 24 V, 8 A
FlexPendant: 10 m
Digital I/O: 16 inputs / 16 outputs
Operating mode selector: 3 modes, keyless
Integrated PROFINET device
Cables
Manipulator cable: 7 m
Power cable: EU, 3 m
Ethernet cable: 7 m
Parallel cable: 7 m
Software (RobotWare)
World Zones
Path Recovery
RobotStudio Connect
FlexPendant Essential App Package
FlexPendant Program Package
Applications & Interfaces
Communication: Ethernet, parallel, air
Connector Axis 4: CP/CS Bus
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
