ABB - IRB 6660-205/1.9DE-ROB-ABB-2023-00003

Name: ABB IRB 6660-205/1.9
Brand: ABB
SKU: DE-ROB-ABB-2023-00003
Price: 4990138 INR
Availability: InStock

Rs. 4,990,138

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used ABB IRB 6660-205/1.9 Robot For Sale | gindumac.com

Show in original language

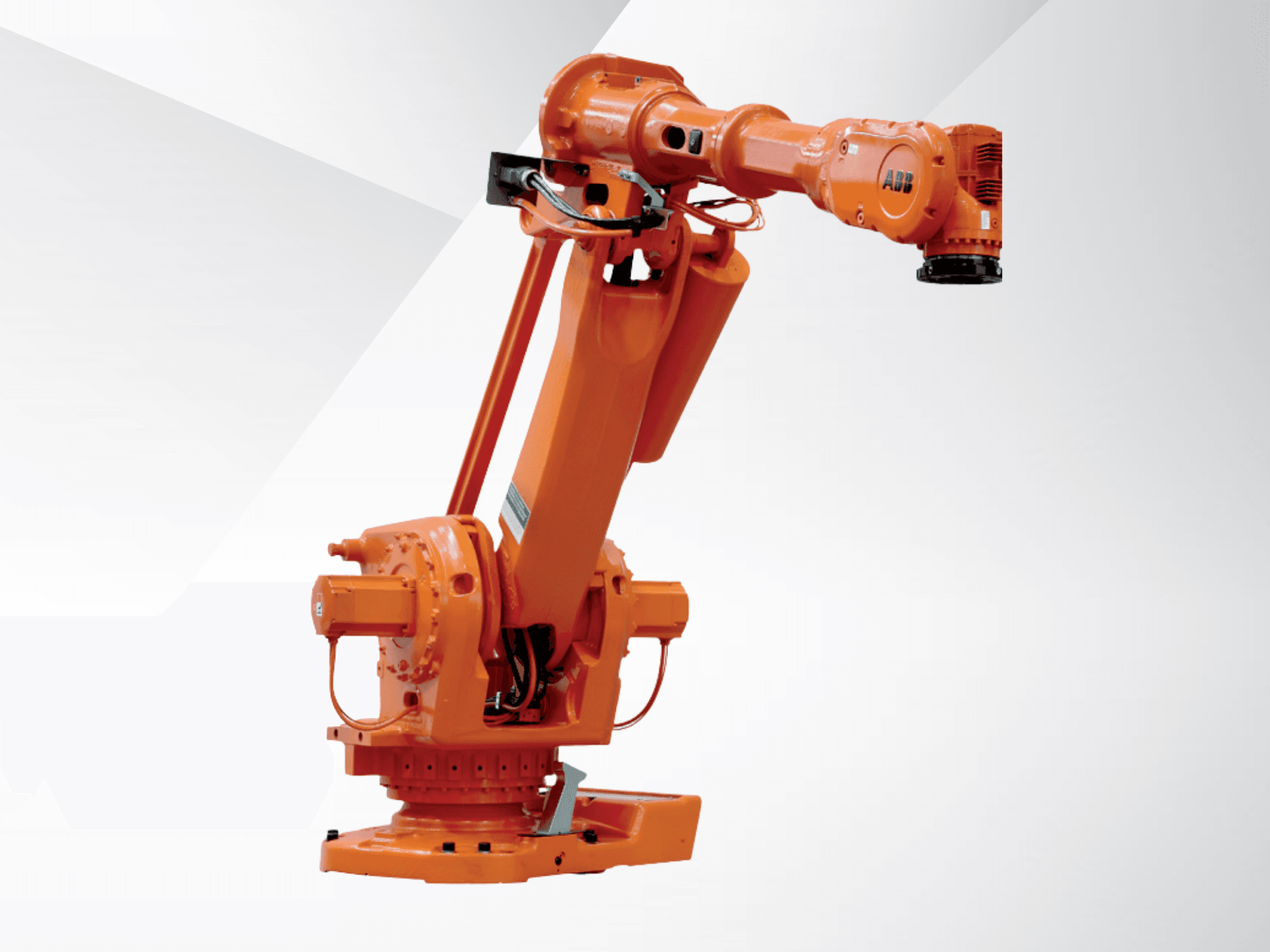

This 6-axis ABB IRB 6660-205/1.9 was manufactured in 2023. It features a payload capacity of 205 kg and a reach of 1.9 m, making it suitable for various applications. The robot arm is equipped with advanced software options, including Collision Detection and SafeMove Pro. If you are looking to get high-quality automation capabilities, consider the ABB IRB 6660-205/1.9 robot arm we have for sale. Contact us for further details.

Overview

brand: ABB
year: 2023
MODEL: IRB 6660-205/1.9
application type: Robotics
Location: Germany
machine type: Robot Arm

Technical Information - ABB IRB 6660-205/1.9

Dimensions

Machine Weight: 1730 kg

Movement

Number of Axes: 6

Technical Specification

Max. Handling Weight: 205 kg
Max. Reach: 1900 mm

Additional Information

- Maximum load/payload: 205 kg

- Protection Rating: Foundry Plus

- Controller Variant: Single Cabinet Controller (IRC5)

- Supply Voltage: 400V

- Main Switch: Rotary switch

- Cabinet Ambient Temperature: Up to max. 45°C

- Manipulator Cable Length: 7 m

- FlexPendant Cable Length: 10 m

- Software / Options: RobotWare 6, Absolute Accuracy, World Zones, Path Recovery, Collision Detection, PC Interface, FlexPendant Interface, Multitasking, MultiFunction, ProfiNet I/O Master/Slave, SafeMove Pro, PROFIsafe F-Device

- Process Configurations: Parallel and Ethernet user signals, Axis 3 connector set with BUS (CP/CS/BUS)

- 2 units available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
