➤ OTC Daihen FD19-V25L Robot For Sale | gindumac.com

Show in original language

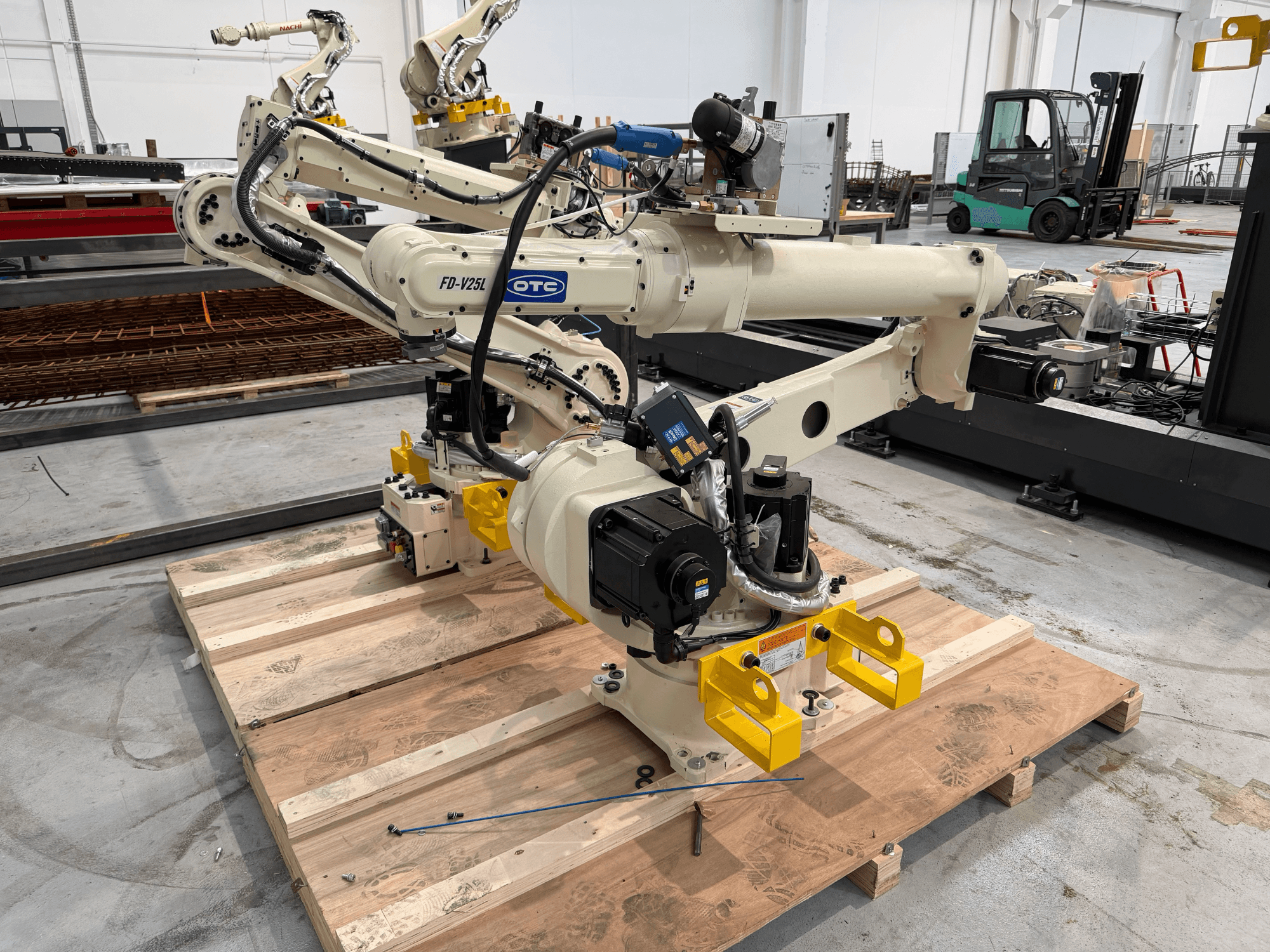

This 6-axis OTC Daihen FD19-V25L robot arm was manufactured in 2024. It is designed for versatility and precision in various applications. If you are looking to get high-quality automation capabilities, consider the OTC Daihen FD19-V25L robot arm we have for sale. Contact us for further details.

Overview

brand: OTC Daihen
year: 2024
MODEL: FD19-V25L
application type: Robotics
Location: Denmark
machine type: Robot Arm

Technical Information - OTC Daihen FD19-V25L

Movement

Number of Axes: 6

Technical Specification

Max. Handling Weight: 20 kg
Max. Reach: 3000 mm

Additional Information

Robot model: MEGAWELD-V25L
Robot module: MEGAWELD-V25L robot module
Robot controller: Included
Teach pendant: Included; 15 m cable

Additional equipment

External axis: 1-axis kit, 4.5 kW
External-axis servo motor: AC servo, 2.0 kW
External-axis cable: 20 m
Robot monitoring: Robot Monitoring Unit
Fieldbus: PROFINET board
Multi-axis software: Multi Synchromotion (up to 4 mechanisms)
Laser sensor: HD19-QF laser search
Sensor head: HD19-QF
Sensor controller: HD19-QF, 10 m
Shock sensor: Included
Welding system: WPS, type P403
Cooling: Water-cooling unit
Welding torch: 500 A, 45°, water-cooled, Fe/SUS
Wire feeder: 4R wire feeder
Pneumatic cleaning station: WRS-SC22XA SE
Transformer: 7 kVA
Control voltage/system: CE kit / transformer case & noise filter

The robot and welding quipment is brand new. Newer installed. We have 3 identical units for sale.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
