Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
ABA - EL 1006DE-GRI-ABA-1998-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used ABA EL 1006 Surface Grinder For Sale | gindumac.com

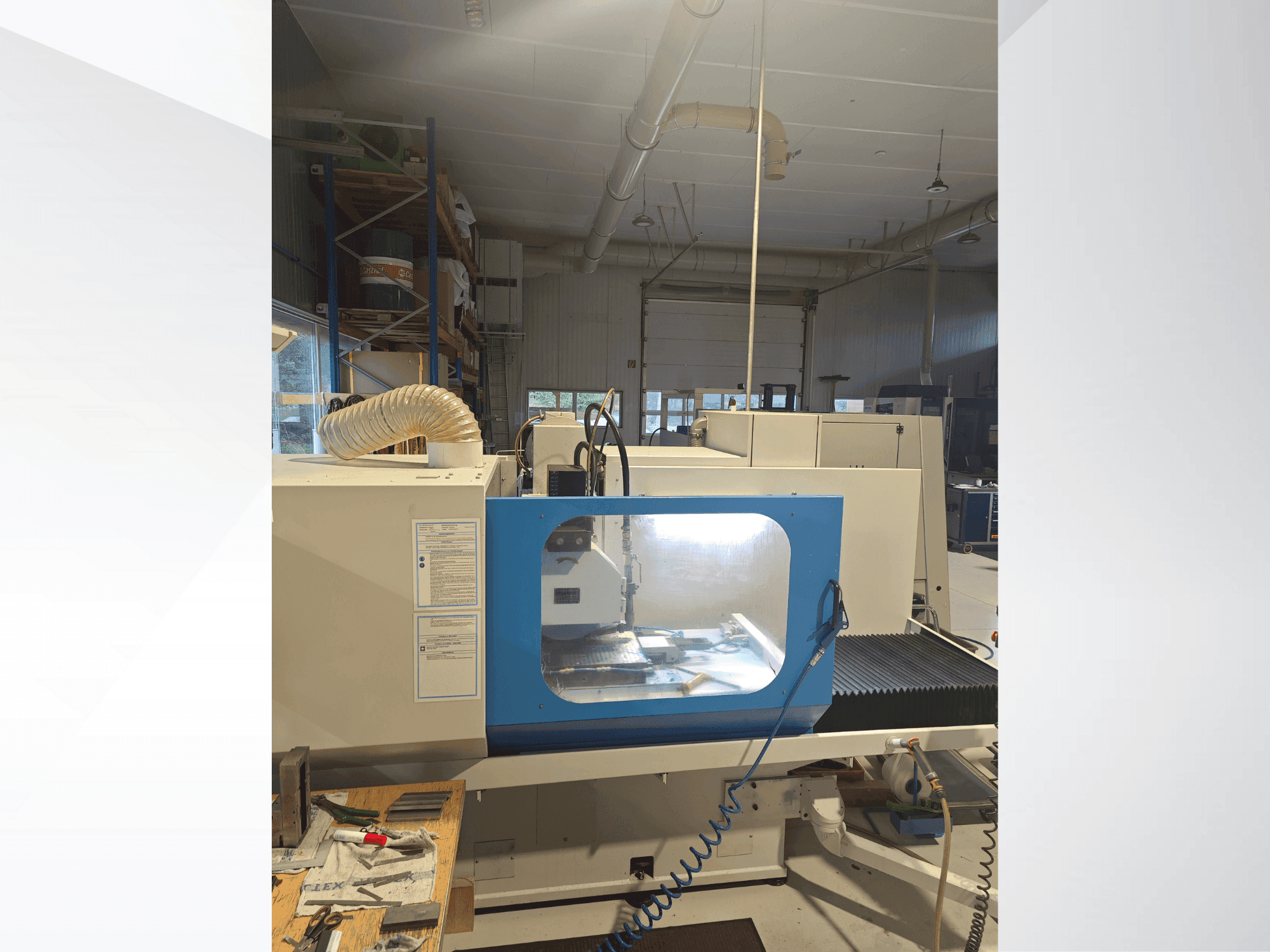

This 3-axis ABA EL 1006 surface grinding machine was manufactured in 1998. It features a sanding area of 1000x600 mm, a table load capacity of 1000 kg, and a grinding wheel diameter of 400 mm. The machine underwent a general overhaul in 2017, including a new spindle and X guides. If you are looking to get high-quality grinding capabilities, consider the ABA EL 1006 machine we have for sale. Contact us for more information.
Overview
- brand: ABA
- year: 1998
- MODEL: EL 1006
- application type: Grinding
- Location: Germany
- machine type: Surface Grinding Machine
Additional Information
Machine Benefits
Technical Machine Benefits
- Longitudinal movement (x-axis): 1300 mm / longitudinal feed speed: adjustable from 2000 to 35000 mm/min / vertical movement (y-axis): max 530 mm / vertical movement speed: adjustable from 0. 2 to 3500 mm/min / transverse movement (z-axis): max 600 mm / transverse movement speed: continuously adjustable from 5 to 5000 mm/min / intermittent lateral movement: adjustable from 2 to 65 mm/pulse / smallest programming value: 0. 001 mm
- Longitudinal movement (x-axis): 1300 mm / longitudinal feed speed: adjustable from 2000 to 35000 mm/min / vertical movement (y-axis): max 530 mm / vertical movement speed: adjustable from 0. 2 to 3500 mm/min / transverse movement (z-axis): max 600 mm / transverse movement speed: continuously adjustable from 5 to 5000 mm/min / intermittent lateral movement: adjustable from 2 to 65 mm/pulse / smallest programming value: 0. 001 mm
- Drive motor / grinding wheel (c-axis) / rated speed: 1500 min-¹ / power: 11 kw / grinding wheel diameter: Ø 400 mm / max width: 60 mm / bore: Ø 127 mm
- Drive motor / grinding wheel (c-axis) / rated speed: 1500 min-¹ / power: 11 kw / grinding wheel diameter: Ø 400 mm / max width: 60 mm / bore: Ø 127 mm
- 2017 general overhauled by aba/ new spindle / new x guides / new cylinder for machine table
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
