Zoller - Smile 420DE-MEA-ZOL-2023-00001

Name: Zoller Smile 420
Brand: Zoller
SKU: DE-MEA-ZOL-2023-00001
Price: 2959100 INR
Availability: InStock

Rs. 2,959,100

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Zoller Smile 420 For Sale | gindumac.com

Show in original language

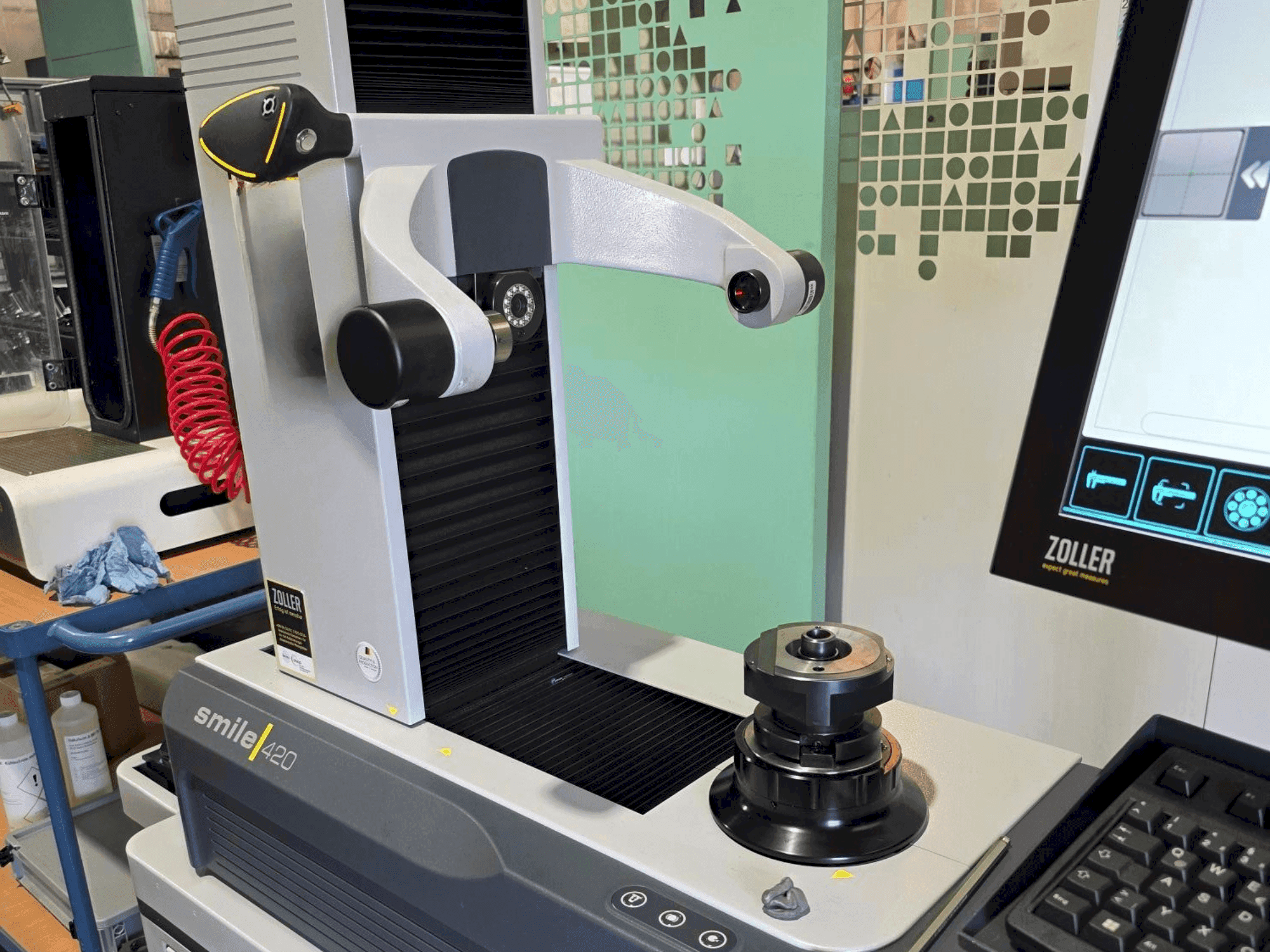

This 3-axis Zoller Smile 420 tool presetter machine was manufactured in 2023. It features a Z-axis travel of 420 mm, X-axis travel of 200 mm, and can handle workpieces up to 420 mm in diameter and 400 mm in length. Equipped with a high-precision SK 50 spindle, autofocus, and the Zoller "Pilot 4.0" control system, it's ideal for precise tool measurement. Consider the opportunity to buy this Zoller Smile 420 tool presetter machine. Contact us for more information.

Overview

brand: Zoller
year: 2023
MODEL: Smile 420
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine

Technical Information - Zoller Smile 420

General Data

Measurements width: 625 mm
Measurements depth: 1300 mm
Measurements height: 1600 mm
Machine weight: 200 kg

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 200 mm
Z-AXIS Movement: 420 mm

Workpiece

Workpiece drm: 420 mm

Tools

Max weight: 10 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece length: max. 400 mm
- - Max. Snap gauge diameter: 100 mm
- - Workpiece holder: sk 50 + sk40 adapter + hsk63 adapter + vdi 30 adapter
- - Repeatability: +/- 0. 002 mm
- - Display accuracy: 0. 001 mm
- - Concentricity: 0. 005 mm
- - Accessories: high-precision spindle sk 50 (concentricity 0. 002 mm, spindle brake), autofocus (cnc drive in the c-axis), rotary encoder (rod), pilot 4. 0 software, monitor mount, under-table system, maintenance unit, thermal label printer
- - Suitable for manual and automatic measurement of all types of cutting tools and grinding wheel packages
- - The zoller imaging and camera system enables fast, operator-independent measurement of all tool edges

Extra information

- Power supply: 230 V / 50 Hz Compressed air connection: approx. 6 bar Turn center measuring device/camera available or installed and fully functional ZOLLER measuring device control "Pilot 4.0" panel PC with 24" multi-touch display Industrial computer with Windows 10 64-bit operating system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
