➤ Used WU Automation RZ-3/35 For Sale | gindumac.com

Show in original language

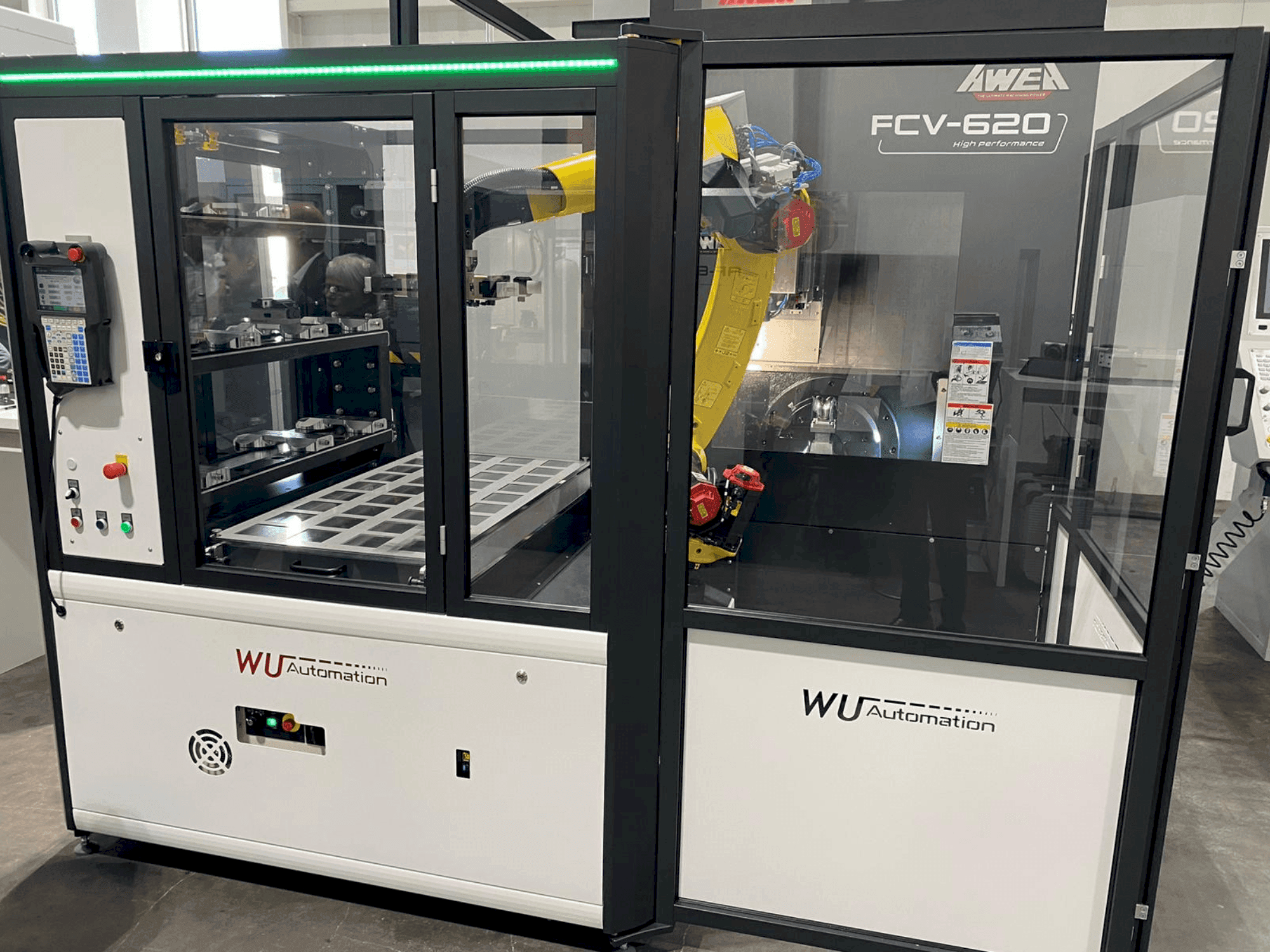

This 6-axis WU Automation RZ-3/35 was manufactured in 2023. A versatile robot cell with a compact design, it features a 6-axis robot capable of handling up to 35 kg. It includes an intuitive graphical interface, Schunk NSR 100 and JGP 125 gripper systems, and a safety package with movable safety fence. Ideal for efficient, flexible operations with minimal setup times. Compatible with all Hermle machines. If you are looking to get high-quality automation capabilities consider the WU Automation RZ-3/35 machine we have for sale. Contact us for more information.

Overview

brand: WU Automation
year: 2023
MODEL: RZ-3/35
production hours: 50
application type: Other Automation Equipment
Location: Germany
machine type: Automation Equipment

Technical Information - WU Automation RZ-3/35

General Data

Measurements width: 1300 mm
Measurements depth: 1900 mm
Measurements height: 2500 mm
Machine weight: 2000 kg

Main drive

Number of axis: 6

Additional equipment

- Vice Pallets: 18
- Safety Package: Movable safety fence and safety software
- Shelving System: Adjustable levels for up to 18 pallet spaces
- Valve Terminal: For controlling external elements

Additional Information

Machine Benefits

Technical Machine Benefits:
- - User-friendly operation: intuitive, graphical interface for fast operation
- - Short setup times: quick changeovers, even for small series
- - Optimal access: flexibly positioned for easy access and flexibility
- - Compact design: small footprint with integrated components
- - High flexibility: easy transport and relocation, connection to other machines
- - Easy retrofitting: standardized interfaces for external functions
- - Modular system: adaptable with various gripping and feeding systems
- - Installation area (lxwxh): 1700 mm x 1300 mm x 2200 mm
- - Max reach: 1810 mm
- - Transfer weight: up to 35 kg

Extra information

- Gripper Systems: 1x Schunk NSR 100 gripper system 1x JGP 125 gripper system 2x parallel grippers 2x compensation units 2x gripper jaw sets Compatible with all Hermle machines Front loading

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
