➤ Used Trotec Laser-Work-Station For Sale | gindumac.com

Show in original language

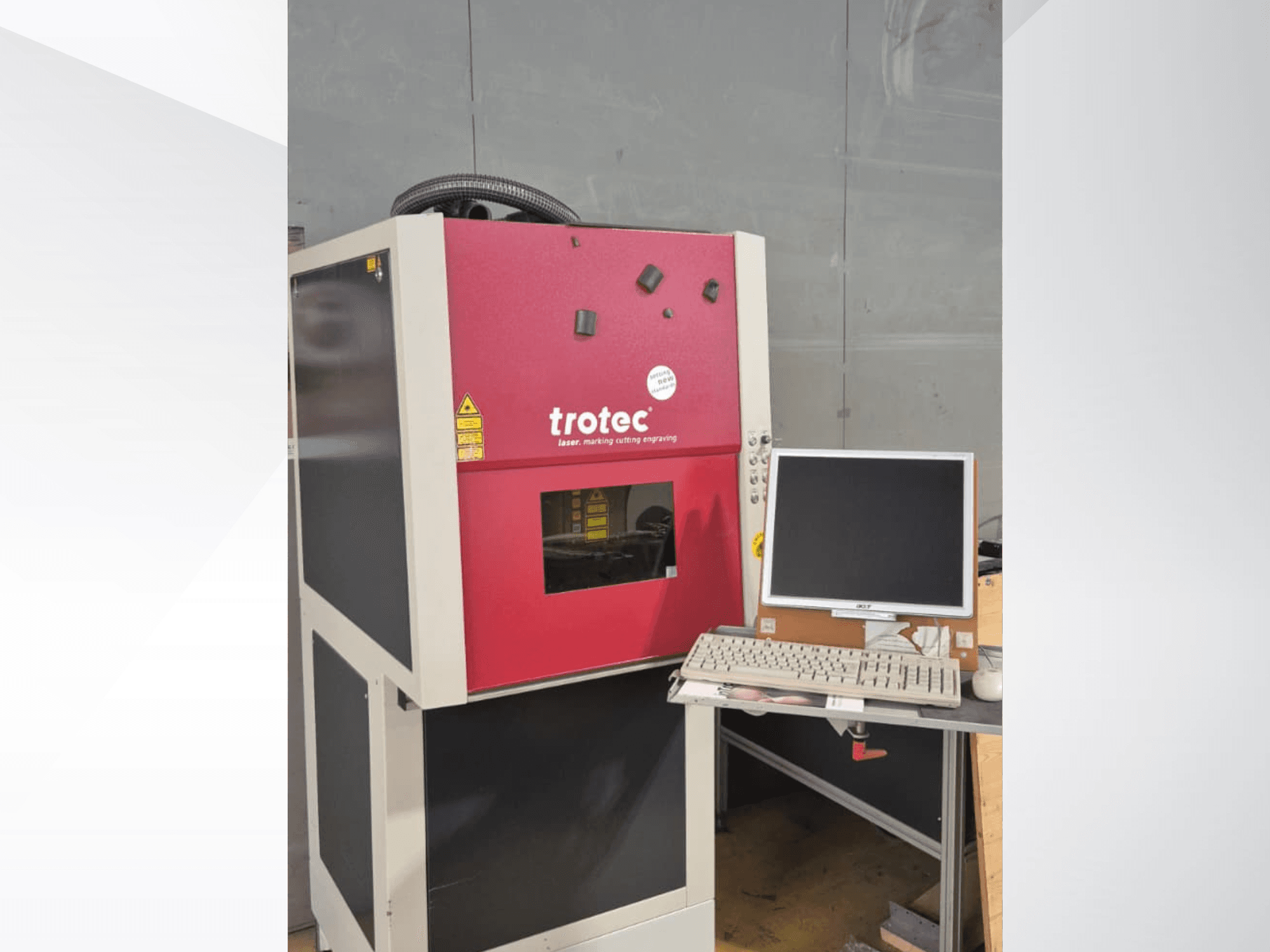

This 3-axis Trotec Laser-Work-Station was manufactured in 2009. It features a powerful 20 W Nd:YAG / Pulsed Yb Fiber Laser with a marking field of 110 × 110 mm and a Z-axis travel of approximately 400 mm. The machine is designed for various applications including laser marking, engraving, and part identification. If you are looking to get high-quality laser marking capabilities, consider the Trotec Laser-Work-Station machine we have for sale. Contact us for further details.

Overview

brand: Trotec
year: 2009
MODEL: Laser-Work-Station
application type: Other Automation Equipment
Location: Germany
machine type: Automation Equipment

Technical Information - Trotec Laser-Work-Station

Dimensions

Machine Height: 1600 mm
Machine Length: 960 mm
Machine Width: 780 mm

Movement

Number of Axes: 3

Technical Specification

Laser Power: 0.02 kW

Additional Information

Machine Type: Fiber Laser Marking Machine
Model: Laser-Work-Station
Laser System: SpeedMarker FL20
Laser Type: Nd:YAG / Pulsed Yb Fiber Laser
Wavelength: 1064 nm
Laser Power: 20 W
Laser Safety Class: Class 2 (Enclosed Workstation)
Marking Head: Galvanometer Scan Head
Lens: F-Theta 160 mm
Marking Field: 110 × 110 mm
Working Distance: Approx. 200 mm
Focus Diameter: Approx. 40 µm
Pulse Frequency: 20–80 kHz
Pulse Width: Approx. 100 ns (@ 20 kHz)
Maximum Pulse Energy: 1 mJ (@ 20 kHz)
Beam Quality: M² ≤ 1.5
Z-Axis: Electric
Z-Axis Travel: Approx. 400 mm
Maximum Workpiece Height: Up to 250 mm
Work Area: Approx. 400 × 400 mm
Worktable: T-Slot Plate
Automatic Safety Door
Dual Laser Pointer Focus Finder
Interior Workspace Lighting
Swiveling Monitor Arm
Operating Voltage: 230 V AC, 50/60 Hz
Total Power Consumption: < 500 W
Laser Unit Power Consumption: < 300 W
Cooling: Air-Cooled
Fiber Delivery Cable Length: 2 m
Operating System: Windows XP Professional
Control PC: Industrial PC
Processor: Intel Pentium 4, 3.0 GHz
Software: SpeedMark
24 V Digital I/O Interface
Supports Barcode Marking
Supports 2D Data Matrix Codes
Supports Text Marking
Supports Date & Time Marking
Supports Vector Graphics Import
Supports Bitmap Graphics Import
Suitable Materials: Steel, Stainless Steel, Aluminum, Brass, Gold, Coated Metals, Plastics, Ceramics
Applications: Laser Marking, Laser Engraving, Part Identification, Serialization, Barcode & Data Matrix Marking, Logo Marking, Industrial Traceability

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
