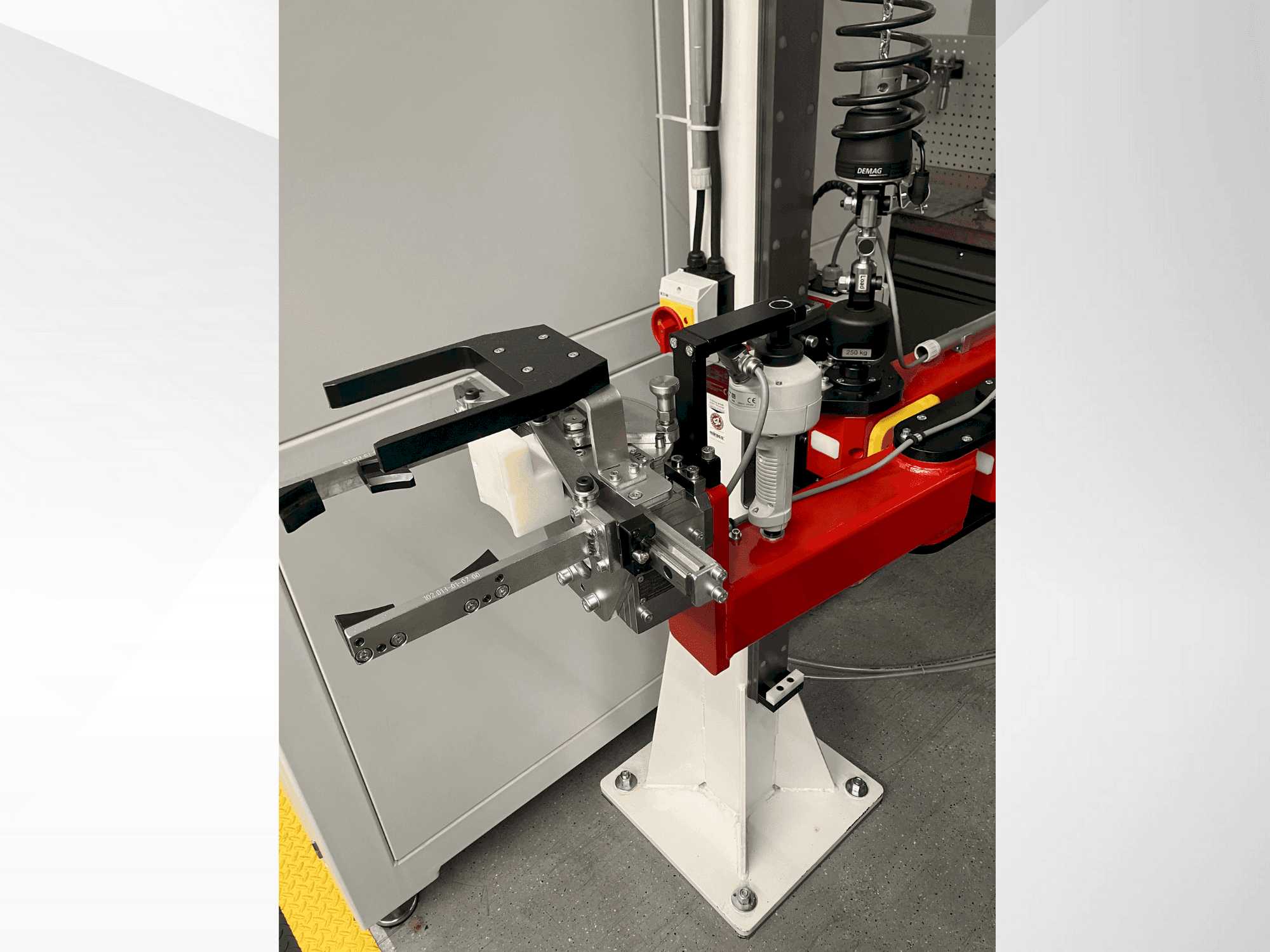

MIRECS - EasyLiftDE-OTH-MIR-2024-00001

Additional information

Movement

• Total Height: 3000 mm

• Vertical Stroke: 1500 mm

• Jib Length: 3000 mm

• Load Capacity: 150 kg

• Number of Arm Segments: 3

Workpiece

• Corrosion Protection: Galvanically galvanized

Media

• Mains Voltage: 400V/50 Hz, three-phase AC

Additional Equipment

• Lifting Mechanism: Demag Chain Hoist DCBS with balancer function for guiding and positioning loads

• Operation: Via DGrip-Servo operating handle near the load; load control also through direct impulses on the load

• Mechanical Load Handling Device (LAM)Description: Mechanical Load Handling Device (LAM) for mounting on adapter V44530TECOH201, including various tools

• Maximum Load Capacity: 60 kg

• Rotation Axis: Rotation angle from 0° up to max. 35° from the vertical

• Adaptation: Adaptation to easylift connection plate

Extra Information

• Base: Stable base plate for foundation fastening to the hall floor by anchor technology

• Welding Construction Standard: Required welding constructions according to EXC 2 for steel and metal construction, and EXC 3 for load handling devices

• Documentation Standard: According to European standard and Machinery Directive MRL 2006/42/EG in German language

• Documentation Components (in part): EC Declaration of Conformity, Test Book, Operating Manual, Operating Strength Certificate, 3D data of Load Handling Devices in step-format
