WFL M30

Photo Gallery

WFL - M30IT-TUR-WFL-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

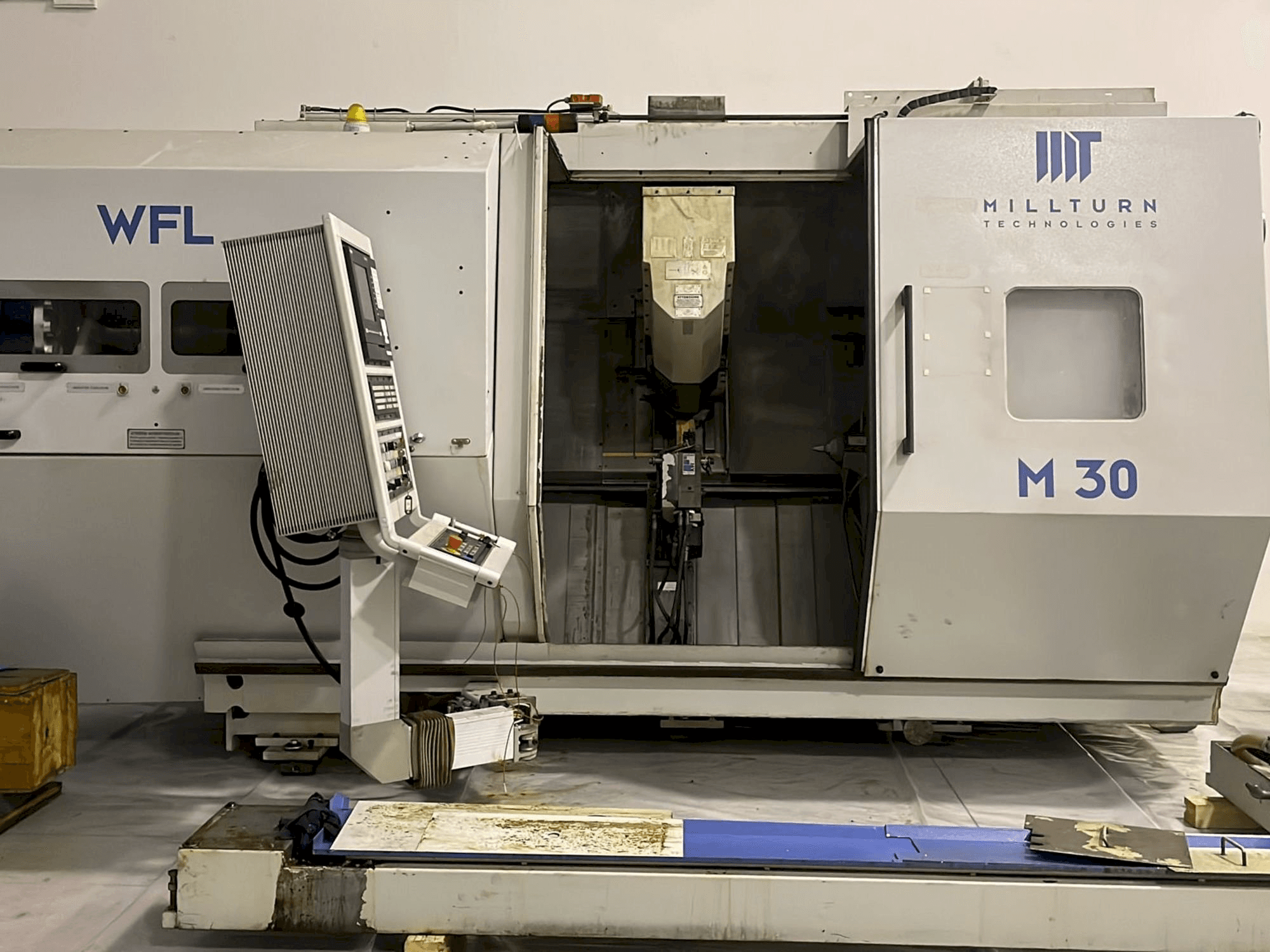

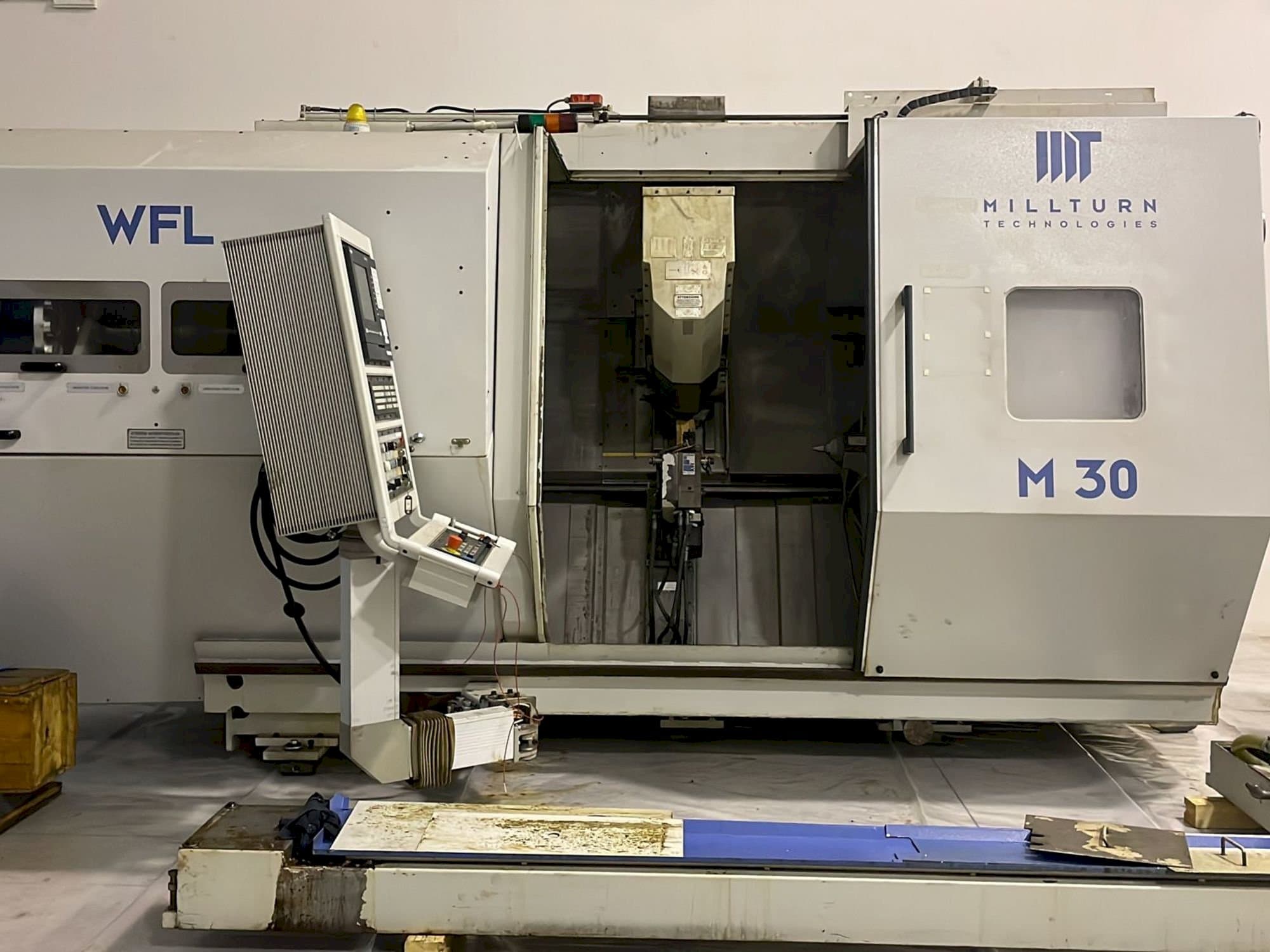

This WFL M30 Lathe was made in 2002. It is equipped with an SIEMENS Sinumerik 840 D control unit and has 5 axis. The machine has a spindle speed of 4000 rpm, is in good condition, and is well maintained.

Overview

brand: WFL
year: 2002
MODEL: M30
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - WFL M30

General Data

Machine weight: 11000 kg

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 4000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 420 mm
Y-AXIS Movement: 160( -80/+80 ) MM
Z-AXIS Movement: 1120 mm
C-AXIS Movement: 0.001 degrees

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in perfect conditions
Tooling set hsk a50 – high pressure pump with paper filter – refrigeration unit.

Technical Machine Benefits

Capacity: max. Turning length 1000 mm
Max. Turnable diam. Between tips diam. 300 mm
Spindle motor power 22/37 kw
Milling head: rpm 4000 - hsk-a50 connection
Spindle motor power 9 kw.
B-axis orientation angle -90/+90
Tailstock: sk 30
Bezel: autoblock mod. Slu31-zs
Tool change: 96 pos.
Accessories: chip conveyor – self-centering autoblock diam. 260mm –

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
