Weinbrenner GP400
Weinbrenner - GP400
2006
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Weinbrenner GP400 Bending machine

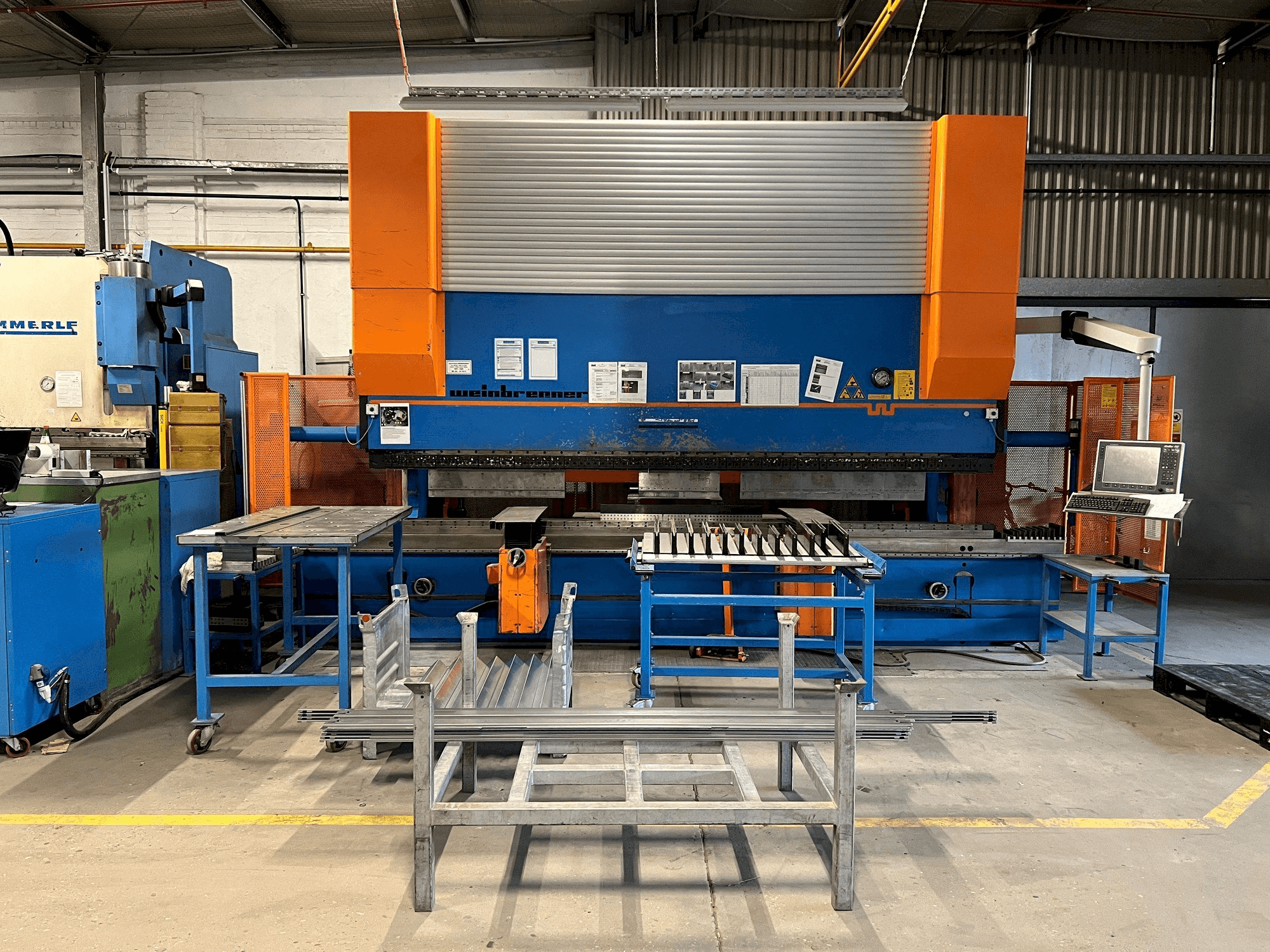

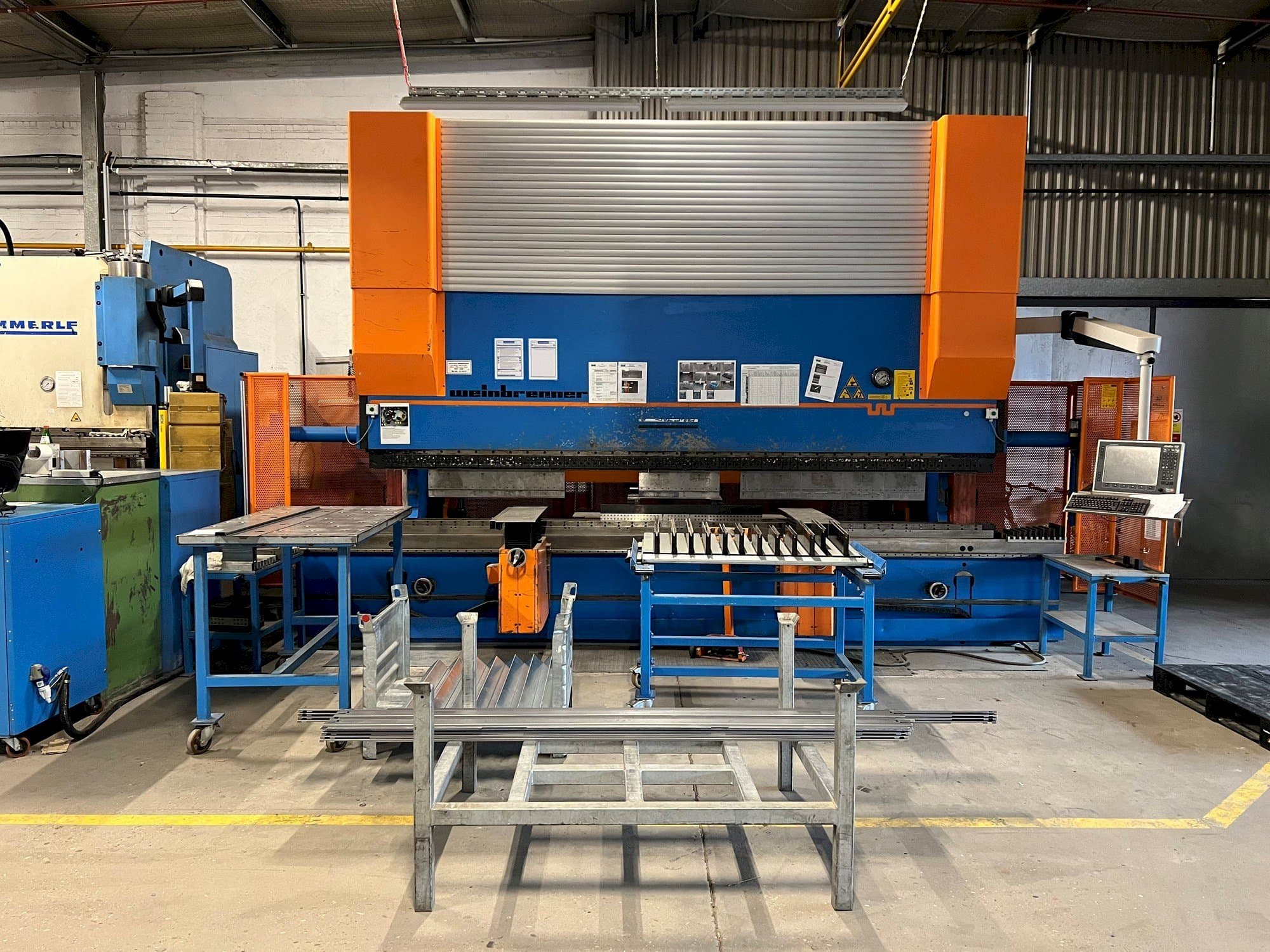

This Weinbrenner GP400 Bending machine was manufactured in the year 2006 and has 60000 production hours. It is equipped with a Cybelec ModEva 15S control unit. The machine has a pressing force of 4000 kN and a bending length of 4550 mm.
Overview
- brand: Weinbrenner
- year: 2006
- MODEL: GP400
- production hours: 60000
- application type: Bending
- Location: Germany
- machine type: Bending machines
- availability: Sold
- GINDUMAC ID: DE-BEN-WEI-2006-00002
Technical Information
General Data
- Measurements width: 9500 mm
- Measurements depth: 6500 m MM
- Measurements height: 3800 m MM
Controller
- Brand: Cybelec
- Model: ModEva 15S
Main drive
- Pressing force: 4000 kN
- Bending length: 4550 mm
Additional equipment
- - Various punches (R1; R3; doe foot with R1) and dies (V07; V09; V10; V12; V16; V20/24)
- - Double edging tool 300 mm segments (3 mm / 10.5 mm / 12 mm / 15.5 mm / 16.5 mm)
- - Safety device: AKAS rotating safety light grid
Additional Information
- Technical Machine Benefits:
- - Basic machine pressing force 4,000 kn
- - Bending length 4,550 mm
- - Clear stand width 4,050 mm
- - Working stroke 450 mm
- - Stand projection 400 mm
- - Ram stroke 450 mm
- - Tool holder 25 mm
- - Ral5015 sky blue / ral2003 pastel orange
- Qualitative Machine Benefits:
- - Estimated status: operating hours 60,000 h
- - Bends: 5,141,840 strokes + 724,223 strokes since control unit replacement
- - Space requirement: 6. 5 m x 9. 5 m x 3. 8 m (d x w x h)
- - Control system cybelec modeva 15s
- - New control system was installed in 03/2018 and runs under windows 7
- - Extended machine equipment: two bending aids at the rear cnc controlled // two bending aids at the front cnc-controlled die shift with four positions (pneumatic) // quick-change device for punch // quick clamping for dies
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
