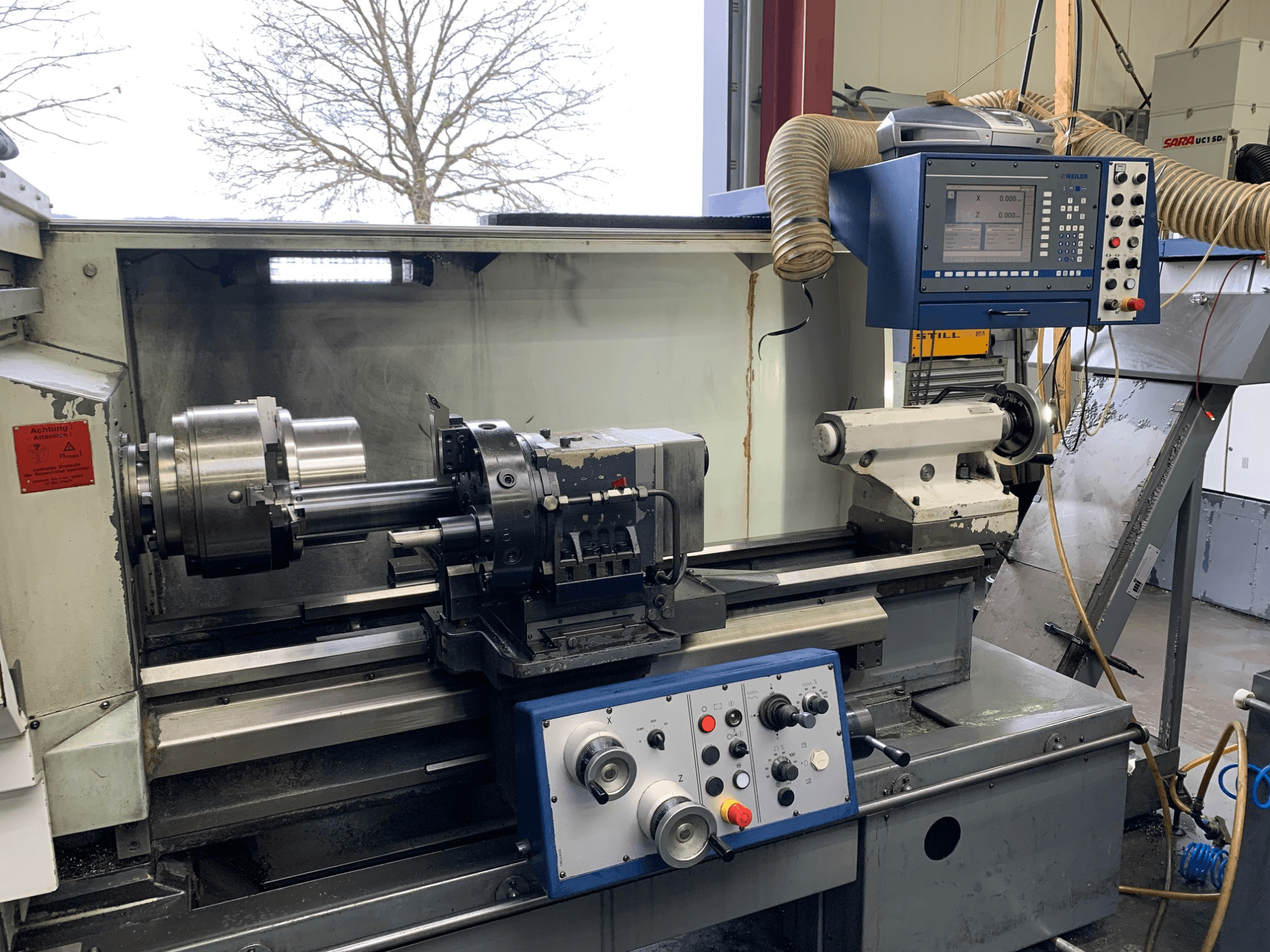

Weiler - E55X1000 DE-TUR-WEI-2004-00001

• 20 kW = real power (mechanical/electrical output)

• 27 kVA = apparent power (includes reactive power)

• Internal taper: metric 90

• Spindle diameter in front bearing: 120 mm

• Spindle bore: 83 mm

• Max. faceplate diameter: 500 mm

• Maximum chuck diameter: 315 mm

• Maximum torque: 1600 Nm

• Tool system: turret (VDI 40)

• Tool shank size: 32 x 25 mm

• Number of longitudinal slides: 1

• Number of cross slides: 1

• Center distance: 1100

• Cross travel: 340 mm

• Tailstock taper: MK 5

• Tailstock quill diameter: 80 mm

• Tailstock quill stroke: 200 mm

• Maximum tailstock travel: 1000 / 2000 mm

• Feed rate longitudinal: 0.001 – 20 mm/rev

• Feed rate cross: 0.001 – 20 mm/rev

• Rapid traverse longitudinal: 10 m/min

• Rapid traverse cross: 5 m/min

• Feed force longitudinal: 10000 N

• Feed force cross: 7000 N

• Metric thread range: 0.1 – 250 mm

• Whitworth thread range: 1/4 – 56 threads/inch

• Module range: 0.125 – 28

• DP range: 0.05 – 48

• Maximum cutting cross section: 2.25 mm²

• Cutting speed: 140 m/min

• Gear stage I: 89 rpm at 100% duty cycle

• Gear stage II: 355 rpm at 100% duty cycle

• Coolant consumption (normal): 30 l/min at 0.4 bar

• Coolant consumption (increased): 30 l/min at 3.5 bar

• Noise level: 80 dB(A)

• Electrical:

  • Operating voltage: 400 V

  • Control voltage: DC 24 V

  • Connected load: 30 kVA

  • Nominal current: 43 A

  • Frequency: 50 Hz

  • Main fuses: 50 A

• Condition note: A small actuator that switches between the gear stages is defective; both gear stages are functioning.

Additional equipment

• Chip conveyor
