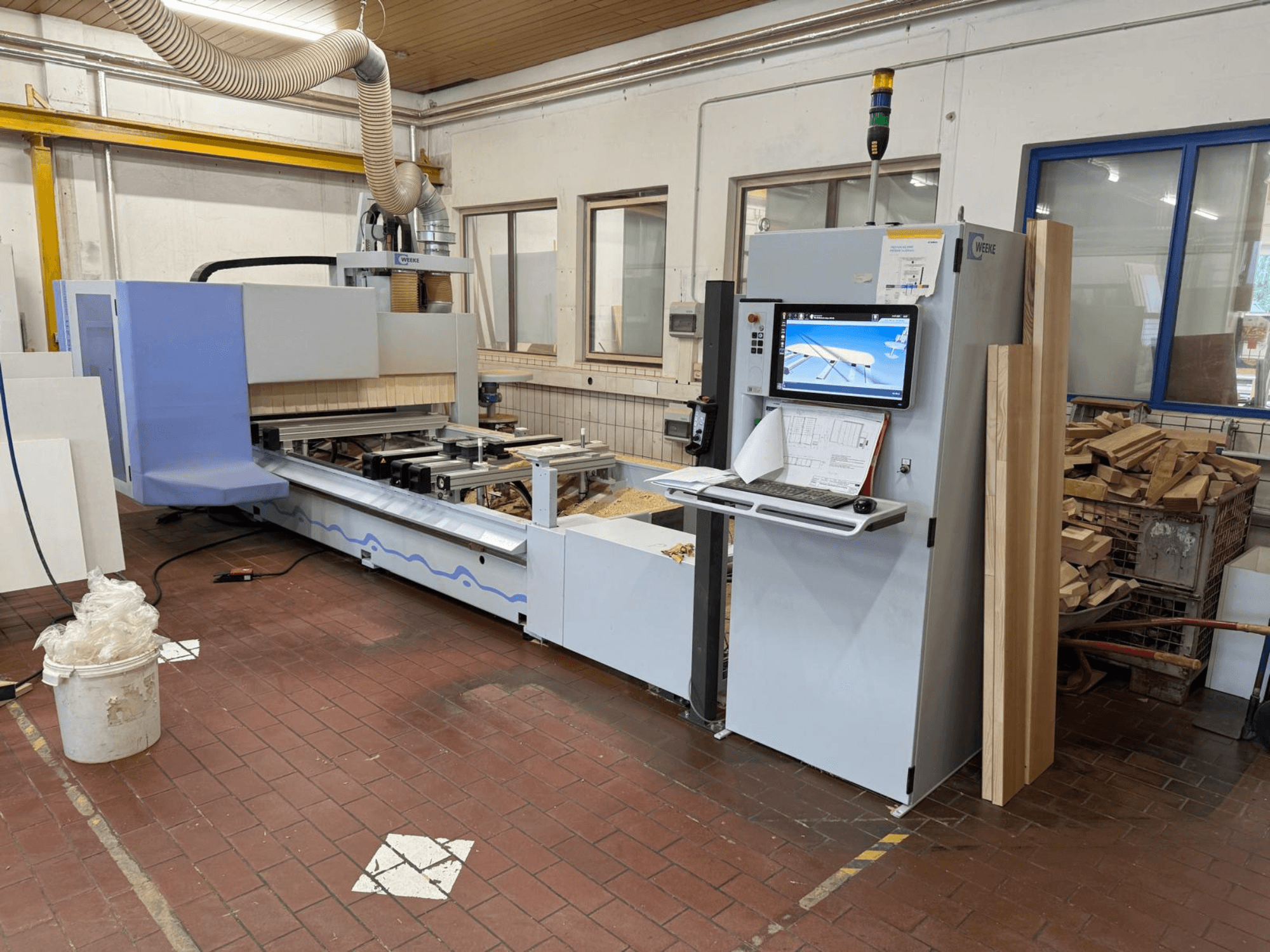

Weeke - PROFI BMG211/32/12/KDE-CNC-WEE-2015-00001

• X/Y-Axis Speed: 70 m/min

• Z-Axis Speed: 20 m/min

• Table Length X: 3250 mm

• Usable Table Length Y: 1150 mm

• Workpiece Clearance: 1250 mm

• Optional Usable Table Length Y: 1400 mm

• Optional Workpiece Clearance: 1600 mm

• Table Thickness Z: 125 mm

• Workpiece Clearance Height: 225 mm

• Workpiece Supports: 6

• Vacuum Fields: 2

• Vacuum Generator Capacity: 70/84 m³/h at 50/60 Hz

• Vacuum Cups: 12 × 114 × 160 × 100 mm

• Additional Vacuum Cups: 2 × 125 × 75 × 100 mm

• Pneumatic Side Stops: 2

• Pneumatic Longitudinal Stops: 6

• Manual Folding Stops: 4

• HPL Positioning Aids: 4

• Laser Vacuum Cup Positioning: Yes

• Laser Type: Crosshair Projection

• Main Usage: 1455 h

• Secondary Usage: 743 h

• Occupancy: 8586 h

Spindle / Drilling / Tooling

• Main Spindle: F1-HSK63-12 kW

• Spindle Speed: 1250–24000 rpm

• Spindle Power: Up to 10/12 kW

• Spindle Interface: HSK63

• Spindle Cooling: Air-Cooled

• Spindle Lubrication: Permanently Greased

• C-Axis: 360° Interpolating Axis

• Vertical Drilling Unit: V12 High Speed 7500

• Vertical Drilling Speed: 1500–7500 rpm

• Vertical Drilling Power: 2.3 kW

• Vertical Drilling Depth: Max. 38 mm

• Vertical Drilling Depth with Special Drill: Max. 55 mm

• Maximum Vertical Drill Diameter: 35 mm

• Vertical Drill Holder: Ø10 mm

• Vertical Spindle Pitch: 32 mm

• Horizontal Drilling Unit: H4X/2Y

• Horizontal Drilling Spindles: 6

• Horizontal Spindle Arrangement: 4 in X / 2 in Y

• Horizontal Drilling Speed: 1500–7500 rpm

• Horizontal Drilling Depth: Max. 38 mm

• Maximum Horizontal Drill Diameter: 20 mm

• Grooving Saw Unit: N1 X-Y 90°

• Grooving Saw Swivel Range: 90°

• Grooving Saw Cutting Depth: 30 mm

• Grooving Saw Diameter: 125 mm

• Grooving Saw Blade Thickness: Max. 5 mm

• Grooving Saw Speed: 1500–7500 rpm

• Tool Magazine: W14

• Tool Magazine Capacity: 14 Tools

• Tool Interface: HSK63

• Maximum Tool Weight: 6 kg

• Maximum Tool Diameter with Full Magazine: 130 mm

• Maximum Tool Diameter with Free Adjacent Positions: 260 mm

• Tool Change Time: Approx. 12–18 s

FLEX5+ / Control / Equipment

• HP FLEX5+ Aggregate: Sawing / Milling / Drilling

• FLEX5+ Milling Swivel Range: 0–100°

• FLEX5+ Drilling Swivel Range: 0–100°

• FLEX5+ Sawing Swivel Range: 0–90°

• FLEX5+ Maximum Milling Tool Diameter: 20 mm

• FLEX5+ Maximum Drilling Tool Diameter: 10 mm

• FLEX5+ Maximum Sawing Speed: 15000 rpm

• FLEX5+ Tool Interface: WFC40-25

• Control System: HOMAG Group powerTouch

• CNC Control: powerControl PC86

• Display: 21.5" Full HD Multitouch

• Processor: Intel Core 2 Duo

• Hard Drive: Min. 160 GB SATA

• Ethernet: 10/100 Mbit RJ45

• Operating System: Windows 7 Professional

• Software: woodWOP

• Automatic Tool Changer Loading Aid: Yes

• TeleserviceNet: Yes

• Electrical Supply: 400 V

• Frequency: 50/60 Hz

• Ambient Temperature: +10°C to +40°C

• CE Safety Equipment: Yes

• Supply Voltage: 400 V / 230 V

• Phase: 3 Phase

• Frequency: 50 Hz

• Maximum Operating Full Load Current: 38 A

• Fuse Rating: 50 A

• Control Voltage: 24 V

• CE Marking

• Sold without tools

Upon request, we can also offer suitable extraction systems (currently eligible for funding in Germany) and compressed air solutions
