WALTER - HELITRONIC POWERCZ-GRI-WAL-2005-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Walter Helitronic Power Grinding Machine

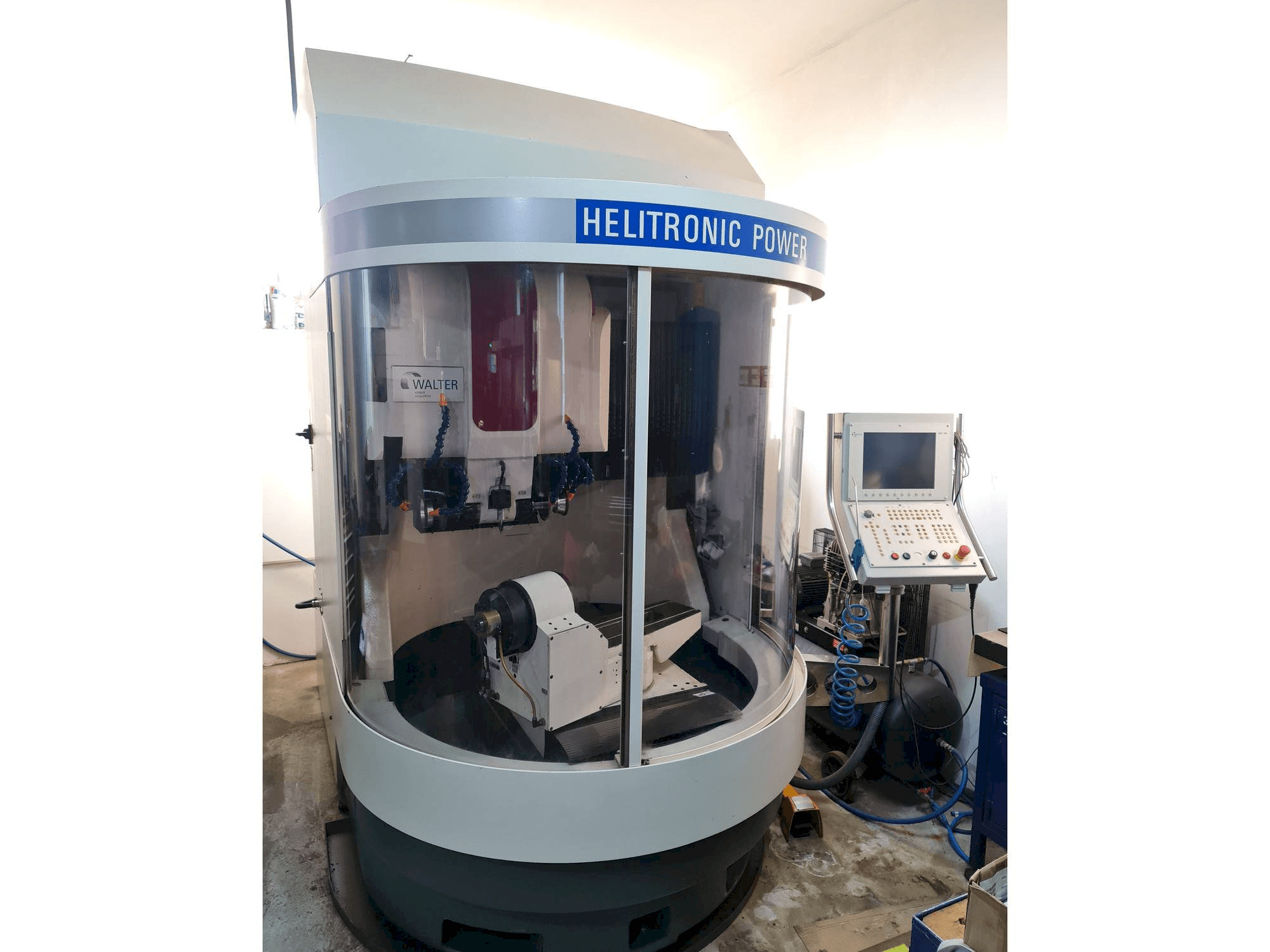

This WALTER HELITRONIC POWER Grinding machine was manufactured in the year 2005 in Germany. It is equipped with a WALTER HMC 600 XP control unit and 5 axis. The machine has a spindle speed of 9500 rpm, is in very good condition, and is well maintained.
Overview
- brand: WALTER
- year: 2005
- MODEL: HELITRONIC POWER
- application type: Grinding
- Location: Czech Republic
- machine type: Grinding Machine
- availability: Sold
Technical Information - WALTER HELITRONIC POWER
General Data
- Machine weight: 4650 kg
Control Unit
- Model: HMC 600 XP
Main drive
- Spindle speed range: 9500 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 460 mm
- Y-AXIS Movement: 320 mm
- Z-AXIS Movement: 660 mm
- A-AXIS Movement: 175 mm
Workpiece
- Workpiece drm: 320 mm
Additional Information
- Technical Machine Benefits:
- - Spindle power 11. 5 kw
- - Spindle diameter 80 mm
- - Max. Diameter of grinding wheel 200 mm
- - Helitronic tool studio software
- - Renishaw probe
- - Mist collector dsl
- - Ac unit plumberger
- - 20pcs clamps with grinding wheels, calibration mandrel
- Qualitative Machine Benefits:
- - Very good condition
- - "retrofitted in 2020: new ball screws in ""x"" and ""y"" axis new main grinding spindle system upgrade to hmc 600 xp including touch screen new axis covers"
- - "2023: new ""y"" axis control module electromagnetic cooling valve"
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
