- Walter Helitronic Power Diamond Grinding machine

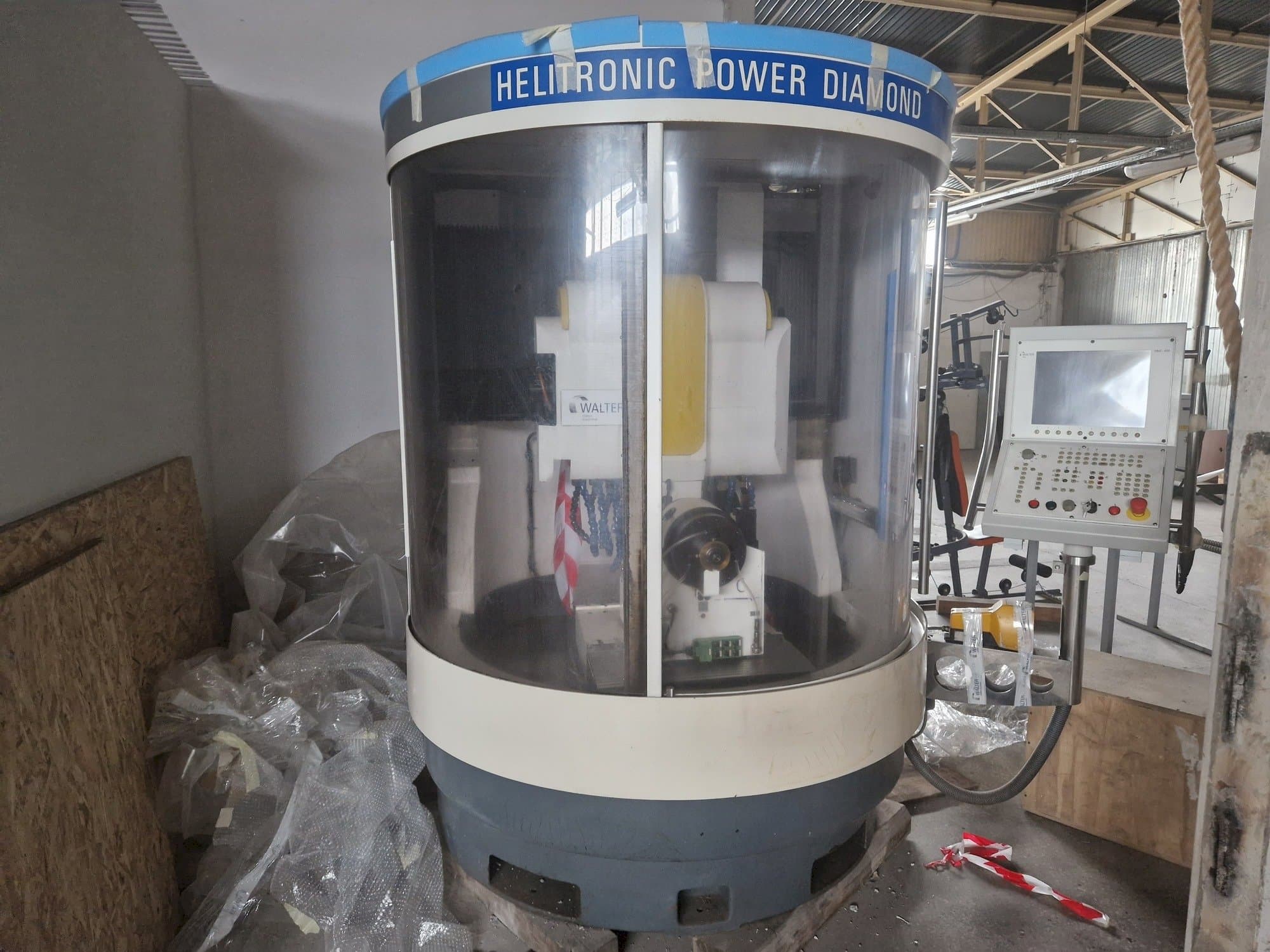

This Walter Helitronic Power Diamond Grinding machine was manufactured in the year 2006 in Germany. It is equipped with a Walter HMC 600 control unit and has 5 axis. The machine has a spindle speed of 0-7000 rpm.
Overview
- brand: WALTER
- year: 2006
- MODEL: Helitronic Power Diamond
- application type: Grinding
- Location: Poland
- machine type: Grinding Machine
- availability: Sold
Technical Information - WALTER Helitronic Power Diamond
General Data
- Measurements width: 2427 mm
- Measurements depth: 2930 mm
- Measurements height: 2273 mm
- Machine weight: 4600 kg
Control Unit
- Model: HMC 600
Main drive
- Spindle speed range: 0-7000 1/MIN
- Tool taper: ISO 50
- Number of axis: 5
Movement
- X-AXIS Movement: 460 mm
- Y-AXIS Movement: 320 mm
- Z-AXIS Movement: 660 mm
- A-AXIS Movement: unlimited MM
- C-AXIS Movement: +/- 200° MM
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 35 kVA
Additional Information
- Technical Machine Benefits:
- - Centre height (with / without worktable) 145 / 190 mm
- - Max dia. Of workpiece 320 mm
- - Max length of workpiece: 350 mm
- - Grinding spindle with 2 ends
- - Max. Diameter of wheel: 200 mm
- - Spindle diameter: 80 mm
- - Torque: 21 nm
- - Peak power: 24 kw
- Qualitative Machine Benefits:
- - Walter wwm
- - Toolstudio
- - Good technical condition and has an accuracy protocol performed by walter.
- - Full service history docs available.
- - Full documentation in en/de available.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
