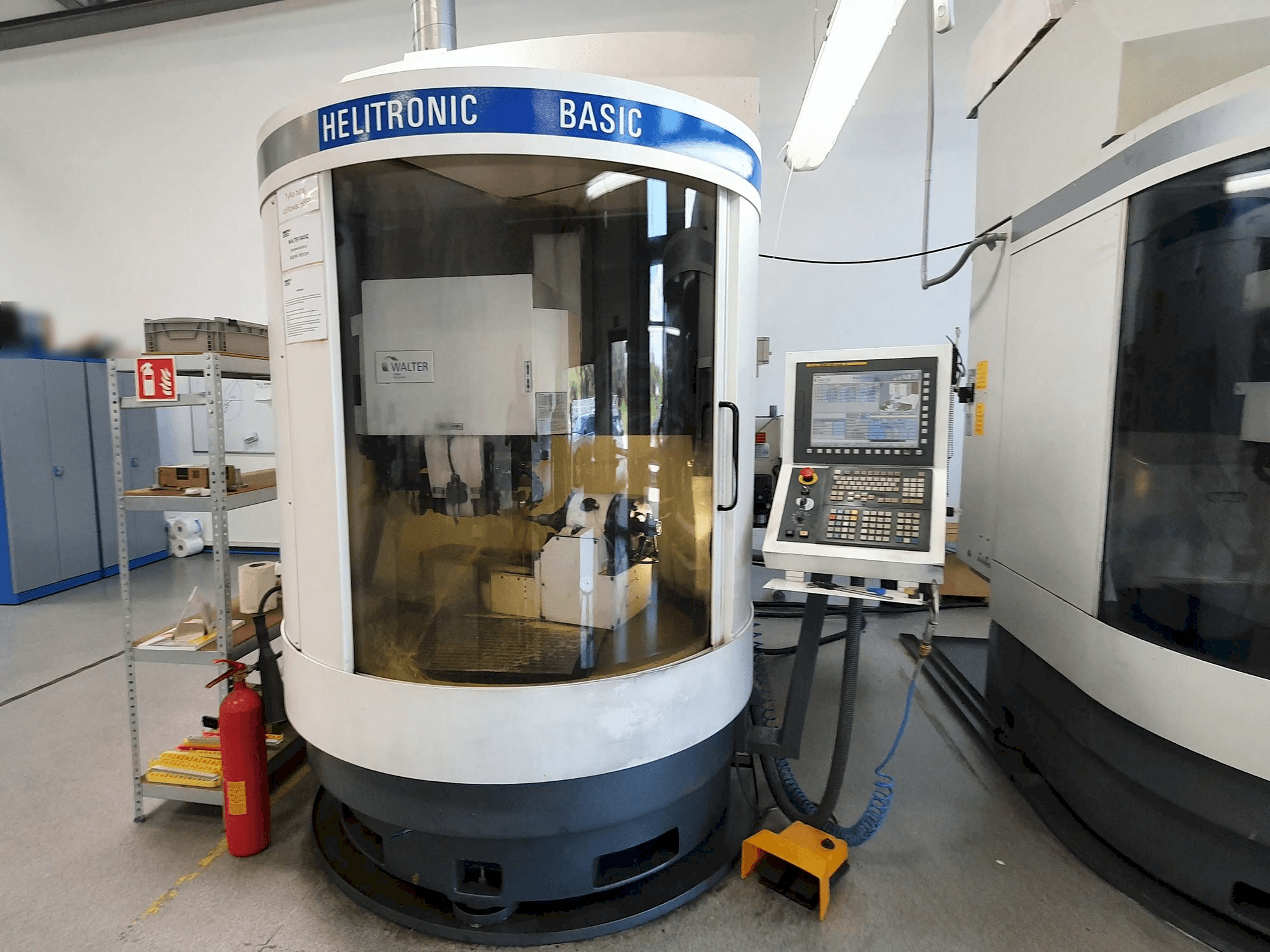

Front view of Walter Helitronic BASIC-F machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

WALTER Helitronic BASIC-F

Photo Gallery

WALTER - Helitronic BASIC-FPL-GRI-WAL-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Walter Helitronic BASIC-F

Show in original language

This Walter Helitronic BASIC-F Grinding Machine was manufactured in 2007 in Germany. It has approximately 30580 working hours. This machine is operated through a GE FANUC Series 310i- MODEL A5 control unit. It can work with a spindle speed range 0 - 8000 rpm. This machine includes several options as a fire extinguishing system and a tools studio software. It is in very good condition, still at production, ready for tests and with its full documentation available.

Overview

brand: WALTER
year: 2007
MODEL: Helitronic BASIC-F
application type: Grinding
Location: Poland
machine type: Cylindrical Grinding Machine
control unit brand: FANUC

Technical Information - WALTER Helitronic BASIC-F

Control Unit

Control Brand: FANUC
Control Model: Series 310i-MODEL A5

Dimensions

Machine Depth: 2930 mm
Machine Height: 2280 mm
Machine Weight: 4500 kg

Movement

X-axis Travel: 460 mm
Y-axis Travel: 320 mm
Z-axis Travel: 660 mm

Technical Specification

Spindle Power: 9 kW
Spindle Speed: 8000 RPM
Taper Size: ISO 50

Additional Information

Additional equipment

Fire extinguishing system
P1 software package - end mills, cylindrical radius mills, balls
P2 software package - Radius tapered end mills, spheres
P3 software package - drills and step drills
Software package - 16 (warming up)
Software package – 32 (Profile grinding software package)
Software package - 98 (automation)
Helicone (chip flute grinding of drill bits)
Heliflute (grinding the flute of cutters)
Tools Studio software

Machine Benefits

Qualitative Machine Benefits

Machine in very good condition
Ready for tests.
Full documentation available.
Still at production.

Technical Machine Benefits

C axis: +/- 200 deg
Max dia. For pieces: 320 mm
Max length of pieces: 350 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
