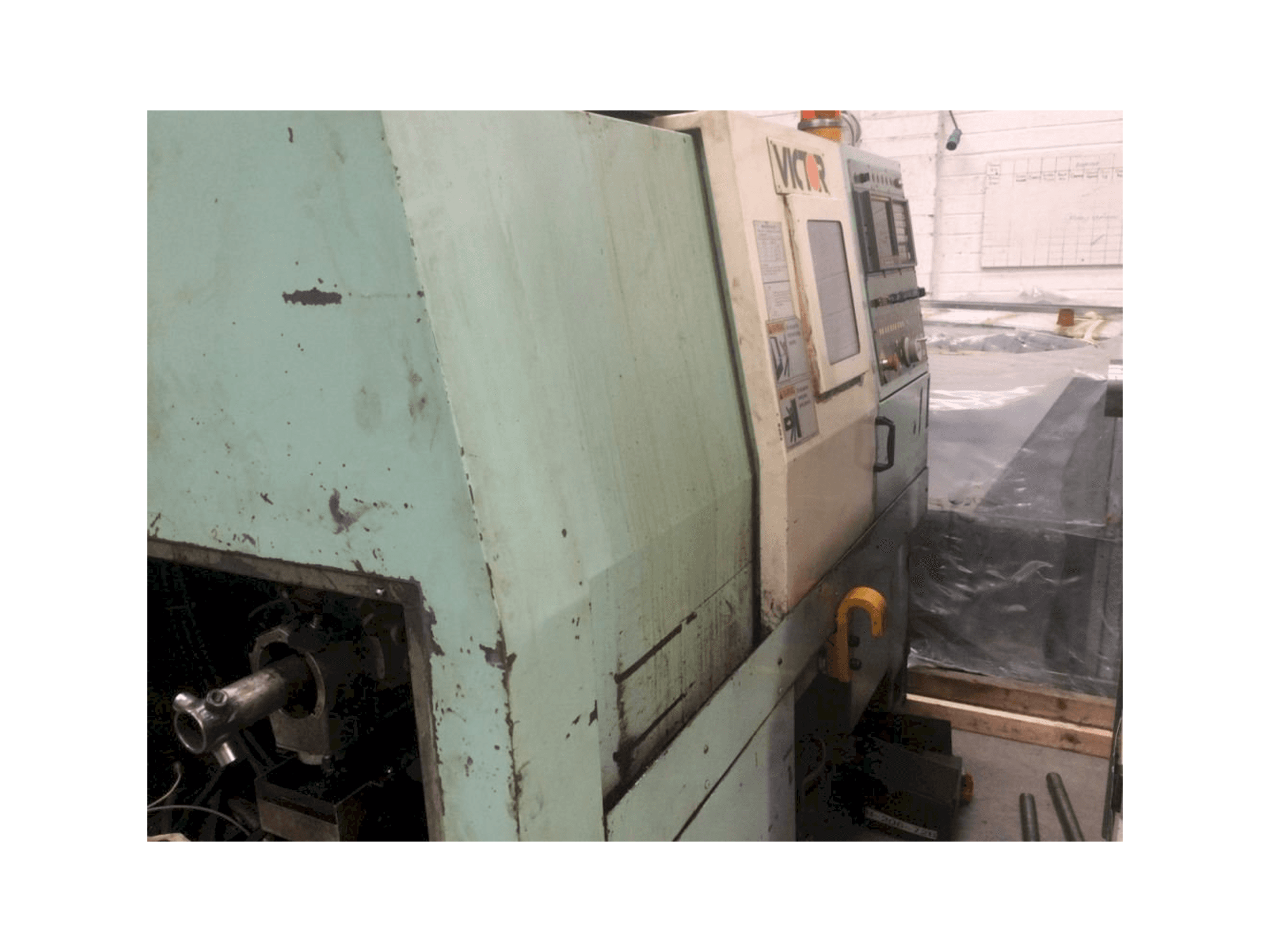

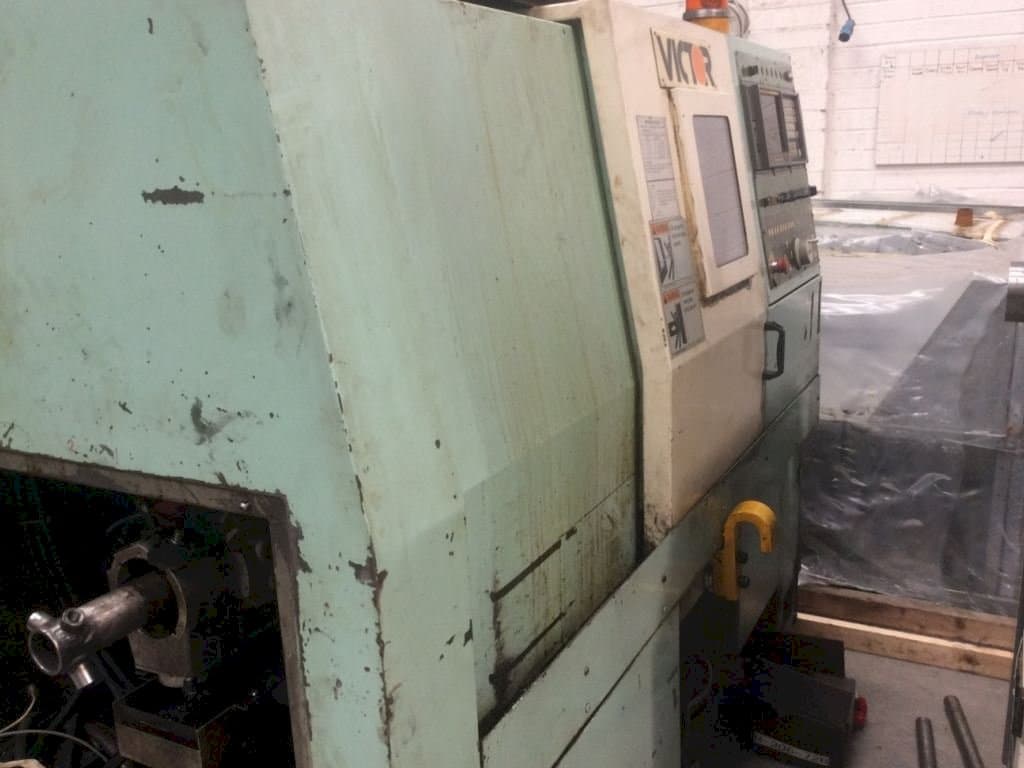

Victor VT Plus/15 Lathe

Show in original language

This Victor VT Plus/15 Lathe was manufactured in 1997 in Taiwan. Operated through a FANUC Series O-T Control unit, this machine incorporates 1 turret and can work with a spindle speed up to 6000 rpm.

Overview

brand: Victor
year: 1997
MODEL: VT Plus/15
application type: Turning
Location: Ireland
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - Victor VT Plus/15

General Data

Measurements width: 2050 mm
Measurements depth: 1525 mm
Measurements height: 1800 mm
Machine weight: 3800 kg

Control Unit

Model: Series O-T
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 150 mm
Z-AXIS Movement: 320 mm

Workpiece

Workpiece drm: 260 mm
Workpiece x: 420 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: 20mm Shank

Media

Main electronic connection: 380 V

Additional Information

Additional equipment

Kitagawa B-206 Hydraulic Chuck

Machine Benefits

Technical Machine Benefits

Swing over bed: 500mm
12 station static tool turret
Spindle nose: a2-5 (6")
Spindle bore: 52mm

Machine History

Industries

Hydraulic cylinders

End product

Hydraulic cylinders

Material type

Mild steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
