Victor V Turn-26 Lathe

Show in original language

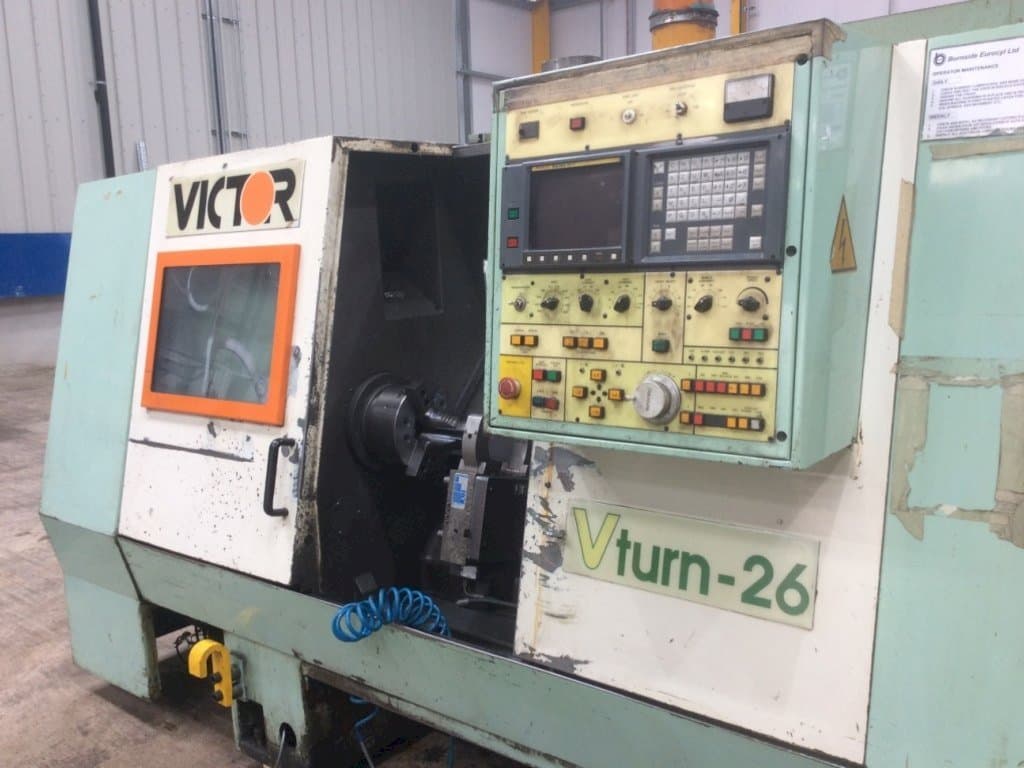

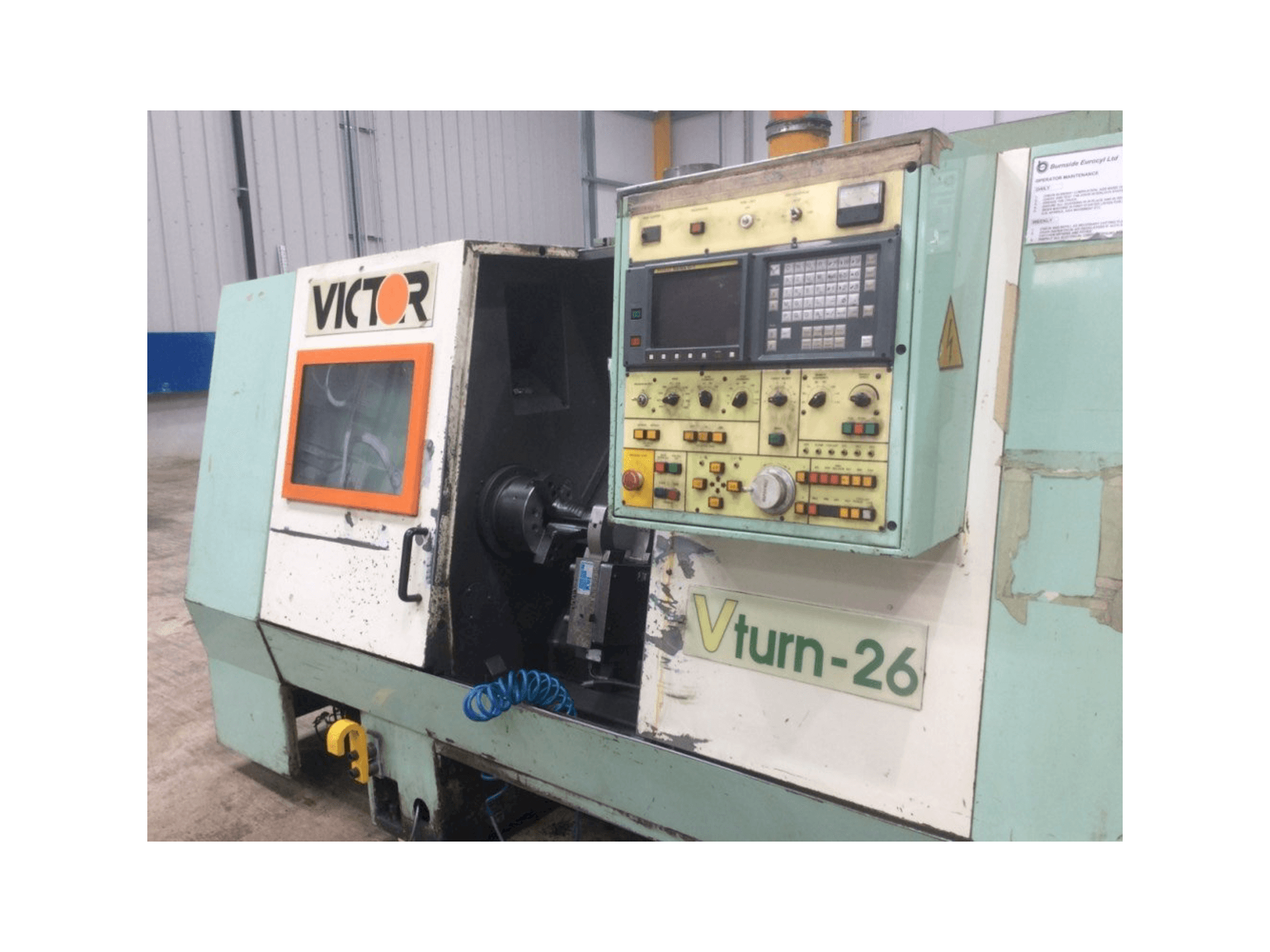

This Victor V Turn-26 Lathe was built in 1990 in Taiwan. Equipped with a FANUC Series O-T Control unit, this machine can operate with a spindle speed up to 3500 rpm. A Kitagawa B-210 Hydraulic Chuck is included additionally.

Overview

brand: Victor
year: 1990
MODEL: V Turn-26
application type: Turning
Location: Ireland
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - Victor V Turn-26

Control Unit

Control Brand: FANUC
Control Model: Series O-T

Dimensions

Machine Depth: 1580 mm
Machine Height: 2000 mm
Machine Weight: 5400 kg

Movement

X-axis Travel: 240 mm
Z-axis Travel: 610 mm

Technical Specification

Max. Workpiece Diameter: 380 mm
Number of Tools: 10
Spindle Speed: 3500 RPM

Additional Information

Additional equipment

Kitagawa B-210 Hydraulic Chuck

Machine Benefits

Technical Machine Benefits

Swing over bed: 520mm
Swing over carriage: 350mm
Centre distance: 650mm
Rapids- x: 12m/min; z:15m/min
Spindle nose: a2-8(10")
Spindle bore: 87mm

Extra Information

Steady in photos not included with the machine

Machine History

Industries

Machinery

End product

Hydraulic cylinders

Material type

Mild steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
