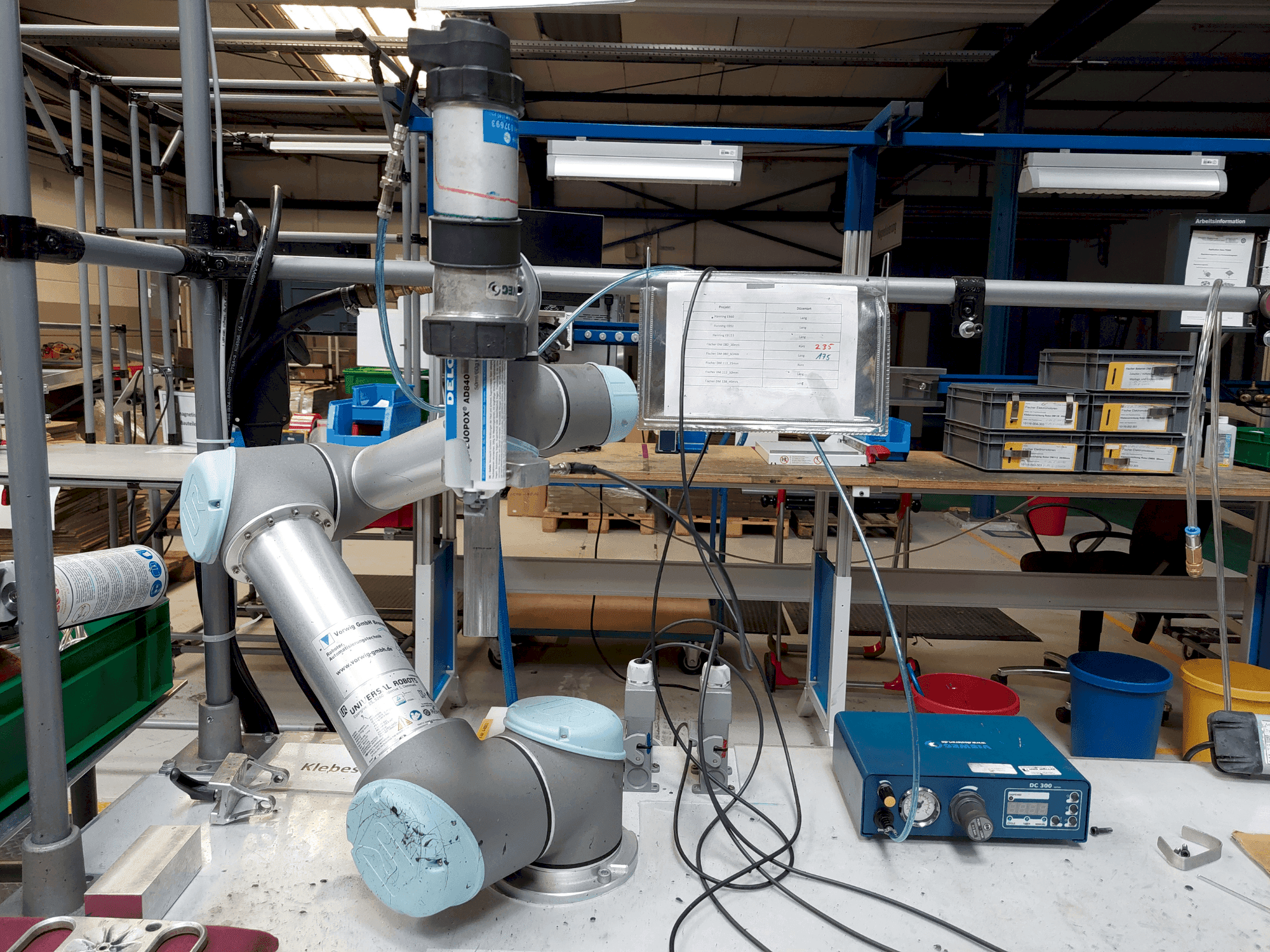

Front view of Universal Robots UR5 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Universal Robots UR5

Photo Gallery

Universal Robots - UR5DE-ROB-UNI-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used Universal Robots UR5 Robot For Sale | gindumac.com

Show in original language

This Universal Robots UR5 was manufactured in 2019. Ideal for automation tasks, this robot arm enhances precision and efficiency in various applications. Contact us for more information.

Overview

brand: Universal Robots
year: 2019
MODEL: UR5
application type: Robotics
Location: Germany
machine type: Robot Arm

Technical Information - Universal Robots UR5

General Data

Measurements width: 418 MM
Measurements depth: 462 MM
Measurements height: 268 MM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Footprint: Ø149 mm
Noise level: 72 db(a)
Ip classification: ip54
Cleanroom classification: robot arm: iso class 5, control box: iso class 6
Maximum average power: approx. 390 w
Maximum average power: approx. 390 w
Materials: aluminum, pp plastic
Temperature range: 0-50 °c
Temperature range: 0-50 °c

Technical Machine Benefits

I/o ports control box: 16 digital inputs, 16 digital outputs, 2 analog inputs, 2 analog outputs
Communication: tcp/ip 1000 mbit, ieee 802. 3u, 100base-t ethernet port, modbus-tcp, ethernet/ip adapter
Power supply: 24 v 2a (control box)
Programming: graphical polyscope interface on 12” touchscreen
Speed: joints max 180°/s, tool approx. 1 m/s
Degrees of freedom: 6 rotational joints
Pose repeatability: ± 0. 1 mm
Maximum payload: 5 kg
Robot type: ur5
Joint range: ± 360° for all joints

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
