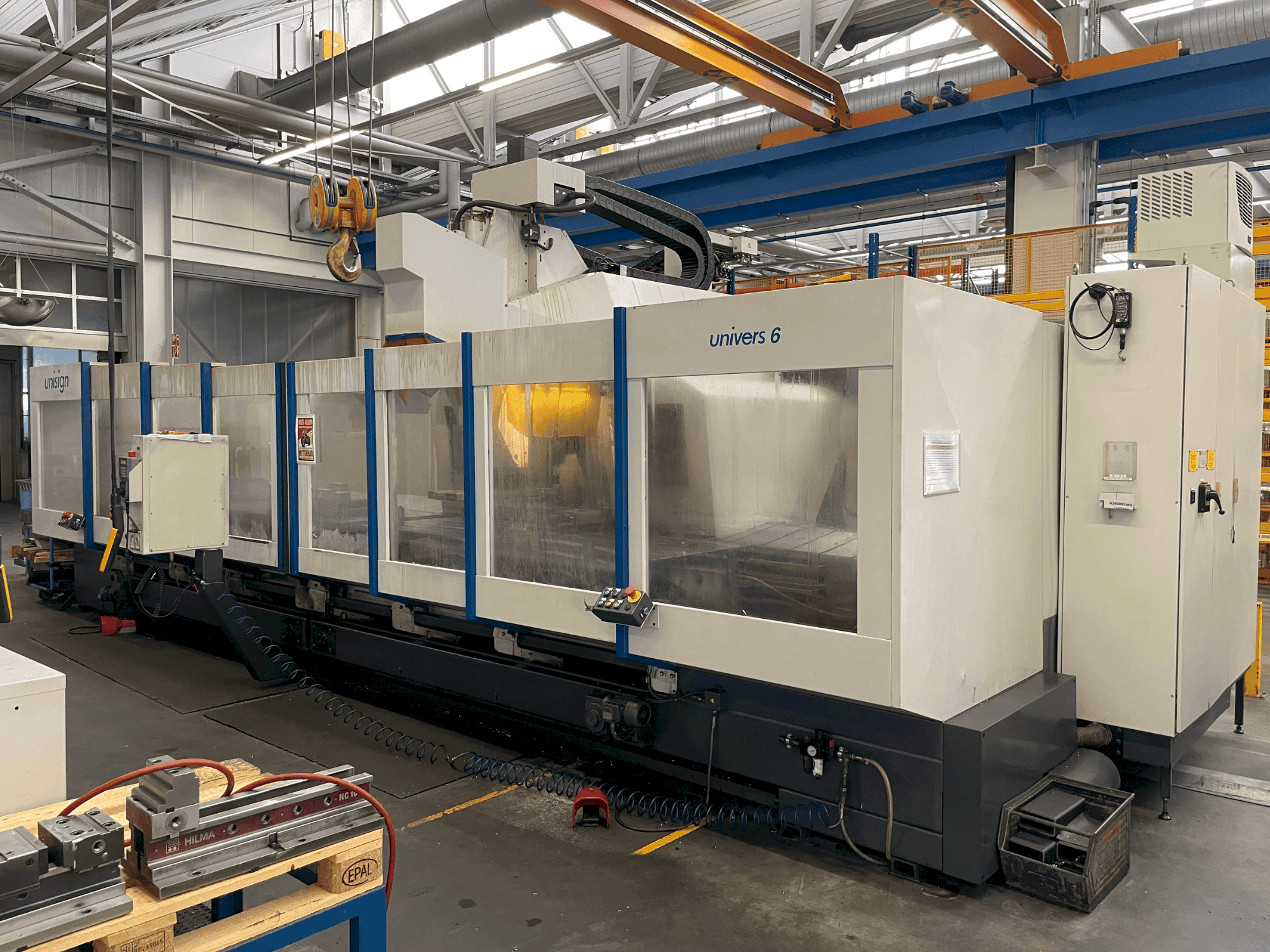

Unisign - UNIVERS 6DE-MIL-UNI-2008-00003

Additional equipment

• Number of tools: 52

Machine Benefits

Technical Machine Benefits

• Control: Siemens Sinumerik 840D

• Control language: German / French switchable

• Working area X: 5000 mm

• Working area Y: 800 mm

• Working area Z: 600 mm

• Drive power: 26 kW

• Spindle speed: 6000 rpm

• Spindle torque: 165 Nm

• Gear spindle torque: 650 Nm

• Tool holder: SK50

• Number of tools: 52

• Tool magazine capacity: 52 positions

• Machining capability: Long part machining or pendulum operation

• 5-side machining with interchangeable angle head

• Angle drilling and milling head for SK50 tools with pick-up station

• Tool swivel system for angle head tool change

• Chip conveyor hinge belt type

• Clamping table: 850 x 1200 mm

• Additional clamping table: 850 x 800 mm

• Touch probe system radio type (M&H)

• Central coolant through spindle and tool with rotary filter system

• Central coolant through horizontal spindle of the angle head

• Cleaning spray gun connected to separate pump

• Hydraulic system 250 bar with pump and piping

• 2+2 quick couplings

• 2 clamping circuits single acting

• Heat exchanger with cooling unit in electrical cabinet

• Electronic handheld control unit for Sinumerik 840D

• Movable operator panel

• Program and station selection for pendulum operation (2 stations)

• Cell operator panel for pendulum operation and clamping functions (2 units)

• Partition wall with viewing window

• Remote diagnostics system for Siemens Sinumerik 840D

• Diagnostic system UNISIGN for Siemens Sinumerik 840D

• Automatic door with manual control or M-function

• 220 V socket in electrical cabinet

• Installation and leveling elements set

• Control runtime: 55106 hours
