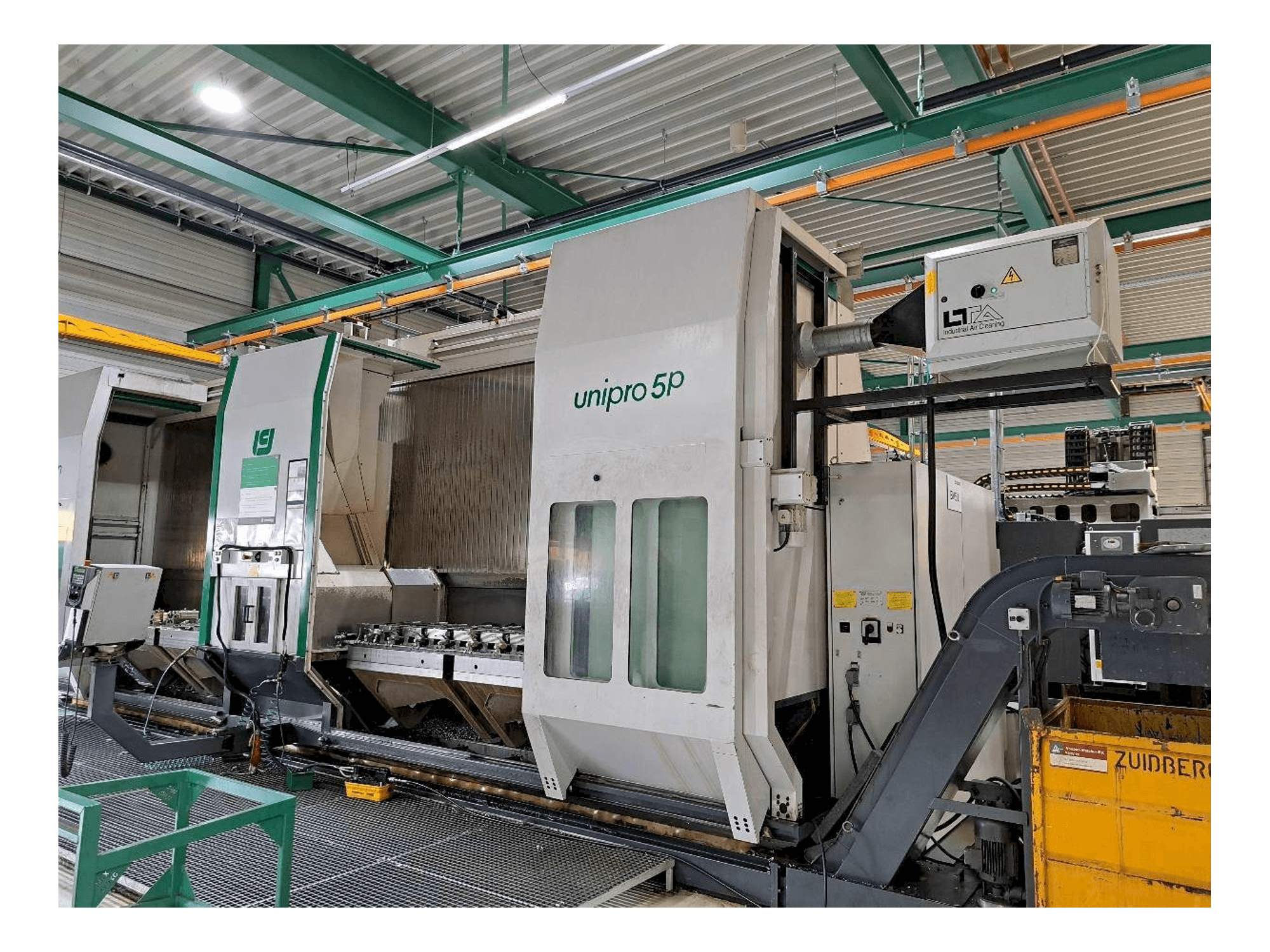

Front view of Unisign Unipro 5P  machine

Unisign Unipro 5P

Unisign - Unipro 5P

2004

Rs. 3,092,750

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Unisign Unipro 5P Drilling and Vertical Machining center was manufactured in the year 2004 in Netherlands. It is equipped with a Siemens Sinumerik 840D control unit. The machine has a spindle speed of 12000 rpm and a drill pressure of 1300 kN.

Overview

  • brand: Unisign
  • year: 2004
  • MODEL: Unipro 5P
  • application type: Milling
  • Location: Netherlands
  • machine type: Machining centers (vertical)
  • availability: 01 10 2023
  • control unit brand: Siemens
  • GINDUMAC ID: NL-MIL-UNI-2004-00001

Technical Information

General Data

  • Measurements width: 10500 MM
  • Measurements depth: 4500 mm
  • Measurements height: 3700 mm
  • Machine weight: 20500 kg

Control Unit

  • Brand: Siemens
  • Model: Sinumerik 840D

Main drive

  • Spindle speed range: 12000 1/MIN

Movement

  • X-AXIS Movement: 2 x 2000 mm
  • X-AXIS Rapid traverse: 60000 mm/min
  • Y-AXIS Movement: 800 mm
  • Y-AXIS Rapid traverse: 60000 mm/min
  • Z-AXIS Movement: 500 mm
  • Z-AXIS Rapid traverse: 60000 mm/min

Table

  • Table load: 2000 kg

Tools

  • Slots in storage: 63 + 99 (Extra magazine)
  • Max weight: 10 kg
  • Max tool diameter: 95 mm
  • Max tool length: 350 mm
  • Type of tool holder: HSK 63 A

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Drill pressure: 1300 kn
      • - Torque spindle 180 nm
      • - Main bearing diameter d = 70 mm
      • - Tool change time, approx. 4. 5 sec
      • - Drilling in c45 d = 50 mm
      • - Tapping in c45 m30
      • - Milling in c45 400 cm3/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
