TSUGAMI - M50SYE-IIIGB-TUR-TSU-2007-00001
Do you have further questions? Contact us.

Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com

- GINDUMAC
- Products
- Machine Tools

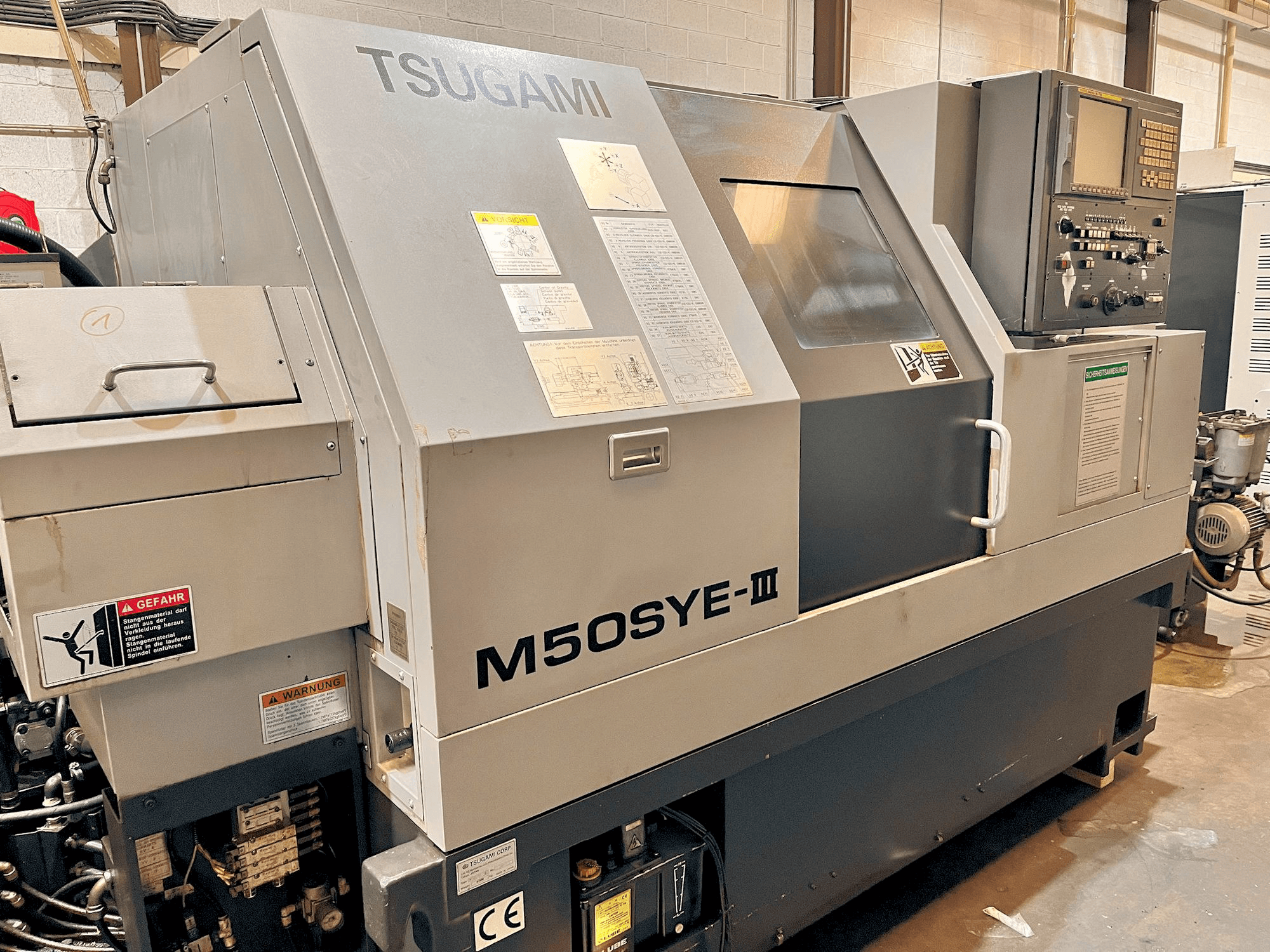

- TSUGAMI M50SYE-III lathe machine
This TSUGAMI M50SYE-III lathe machine was manufactured in 2007 in Japan. It is operated through a FANUC Series 18i-TB control unit. This 6 axis can work with a spindle speed up to 6000 rpm.
Overview
- brand: TSUGAMI
- year: 2007
- MODEL: M50SYE-III
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - TSUGAMI M50SYE-III
General Data
- Measurements width: 3710 mm
- Measurements depth: 1560 mm
- Measurements height: 1720 mm
- Machine weight: 6500 kg
Control Unit
- Model: Series 18i-TB
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 11/7.5KW
- Number of axis: 6
Movement
- X-AXIS Movement: 170 mm
- X-AXIS Rapid traverse: 20 m/min
- Y-AXIS Movement: +/- 50 mm
- Y-AXIS Rapid traverse: 10 m/min
- Z-AXIS Movement: 400 mm
- Z-AXIS Rapid traverse: 24 m/min
- B-AXIS Rapid traverse: 24 m/min
Turret
- Number of turrets: 1
Tools
- Slots in storage: 12
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Maximum cutting diameter: 150 mm
- - Maximum cutting length: 320 mm
- - Bar capacity: 51 mm
- - 6 controlled axes (x, z, y, c1, c2, b)
- - C axis: 0. 001 degree (both spindles)
- - Sub spindle motor speed: 11/7. 5kw, 6000 rpm
- - Sub spindle stroke: 520 mm
- - Tooling, swarf conveyor, parts conveyor
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
