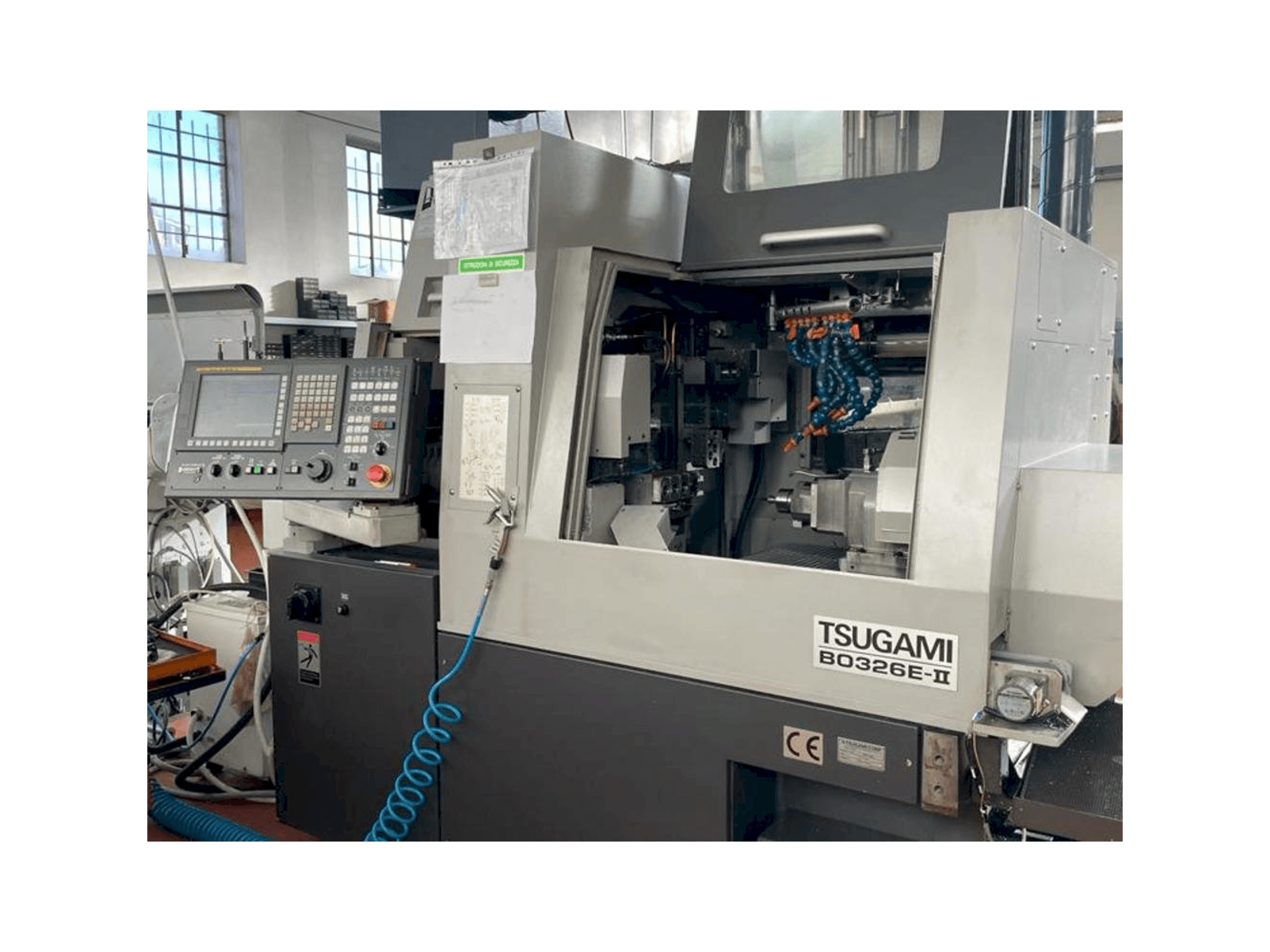

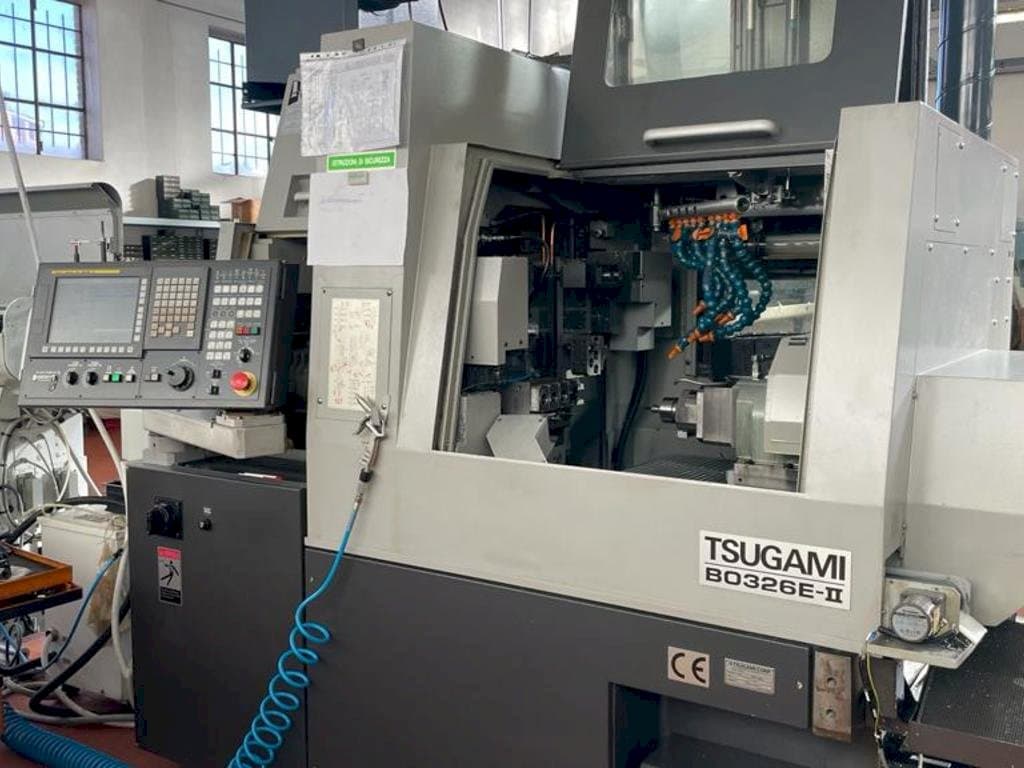

Front view of TSUGAMI B0326E-II  machine

TSUGAMI B0326E-II

TSUGAMI - B0326E-II

2016

Rs. 10,151,600

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TSUGAMI B0326E-II Lathe was manufactured in the year 2016. It is equipped with a Fanuc Series 32-i Model B control unit and has 8 axis. The machine has a spindle speed of 200-8000 rpm. Machine on hours are at 9,815h and cutting time hours 8,750h (see control unit panel in image gallery).

Overview

  • brand: TSUGAMI
  • year: 2016
  • MODEL: B0326E-II
  • production hours: 8750
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Fanuc
  • GINDUMAC ID: IT-TUR-TSU-2016-00001

Technical Information

Control Unit

  • Brand: Fanuc
  • Model: Series 32-i Model B

Main drive

  • Spindle speed range: 200-8000 1/MIN
  • Spindle motor power: 3.7-5.5 Kw
  • Number of axis: 8

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Bar turning diameter max. Ø 32 mm
      • - Turning length 320 mm
      • - Counter spindle - bar turning diameter max. Ø 12 mm rotation speed 200-8,000 rpm motor power 2,2 / 3,7 kw
      • - Index 0. 001 °
      • - Barfeeder included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
