TSUGAMI - BW208E-II IT-TUR-TSU-2015-00001

Name: TSUGAMI BW208E-II
Brand: TSUGAMI
SKU: IT-TUR-TSU-2015-00001
Price: 12126376 INR
Availability: InStock

Rs. 12,126,376

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TSUGAMI BW208E-II For Sale | gindumac.com

Show in original language

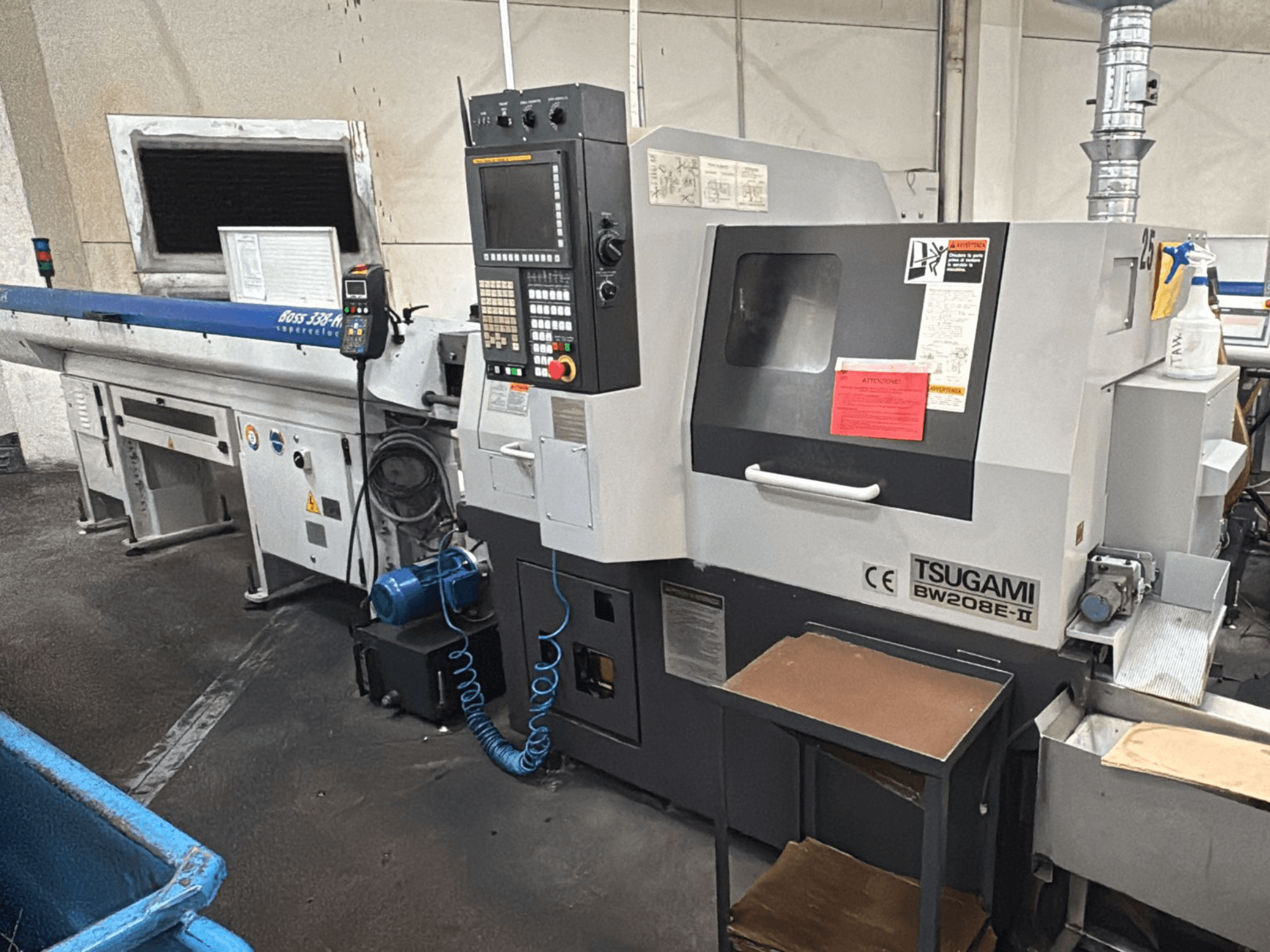

This 3-axis TSUGAMI BW208E-II Swiss type turning machine was manufactured in 2015. It features a maximum bar diameter of Ø20 mm, workpiece length up to 210 mm, and supports drilling and tapping on both main and sub-spindles. With spindle speeds up to 10,000 rpm and rapid movements up to 32 m/min, it ensures efficient production. Consider the opportunity to buy this TSUGAMI BW208E-II Swiss type turning machine. Contact us for more information about this machine.

Overview

brand: TSUGAMI
year: 2015
MODEL: BW208E-II
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine

Technical Information - TSUGAMI BW208E-II

Dimensions

Machine Height: 1750 mm
Machine Length: 2010 mm
Machine Weight: 2900 kg

Movement

Number of Axes: 3

Technical Specification

Spindle Power: 3.7 kW
Spindle Speed: 10000 RPM

Additional Information

Units available: 4
Max bar diameter: Ø20 mm
Max workpiece length: 210 mm (rotating guide bushing)
Drilling capacity (main spindle): Ø10 mm
Tapping capacity (main spindle): M10
Drilling capacity (sub-spindle): Ø8 mm
Tapping capacity (sub-spindle): M8
Back drilling/tapping: up to M5
Sub-spindle speed: 200–12,000 rpm
Sub-spindle power: 1.5 / 2.2 kW
Number of tools: 28
Tool size: 12 × 12 × 85 mm
Cross tool feed X1/X3: 12 m/min
Back tool slide Y1/Y3: 24 m/min
Rapid X2/Z1/Z2: 32 m/min
Rapid X1/X3: 12 m/min
Rapid Y2: 15 m/min
Controlled axes: 8
Cross drilling/milling motor: 1.0 kW
Back drilling/milling motor: 1.0 kW
Electrical consumption: 14.9 kVA
Air supply: 0.4 MPa or higher
Air consumption: 50 NL/min
Coolant tank capacity: 120 L

Additional equipment

Rear driven tool motor (optional): 0.25 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
