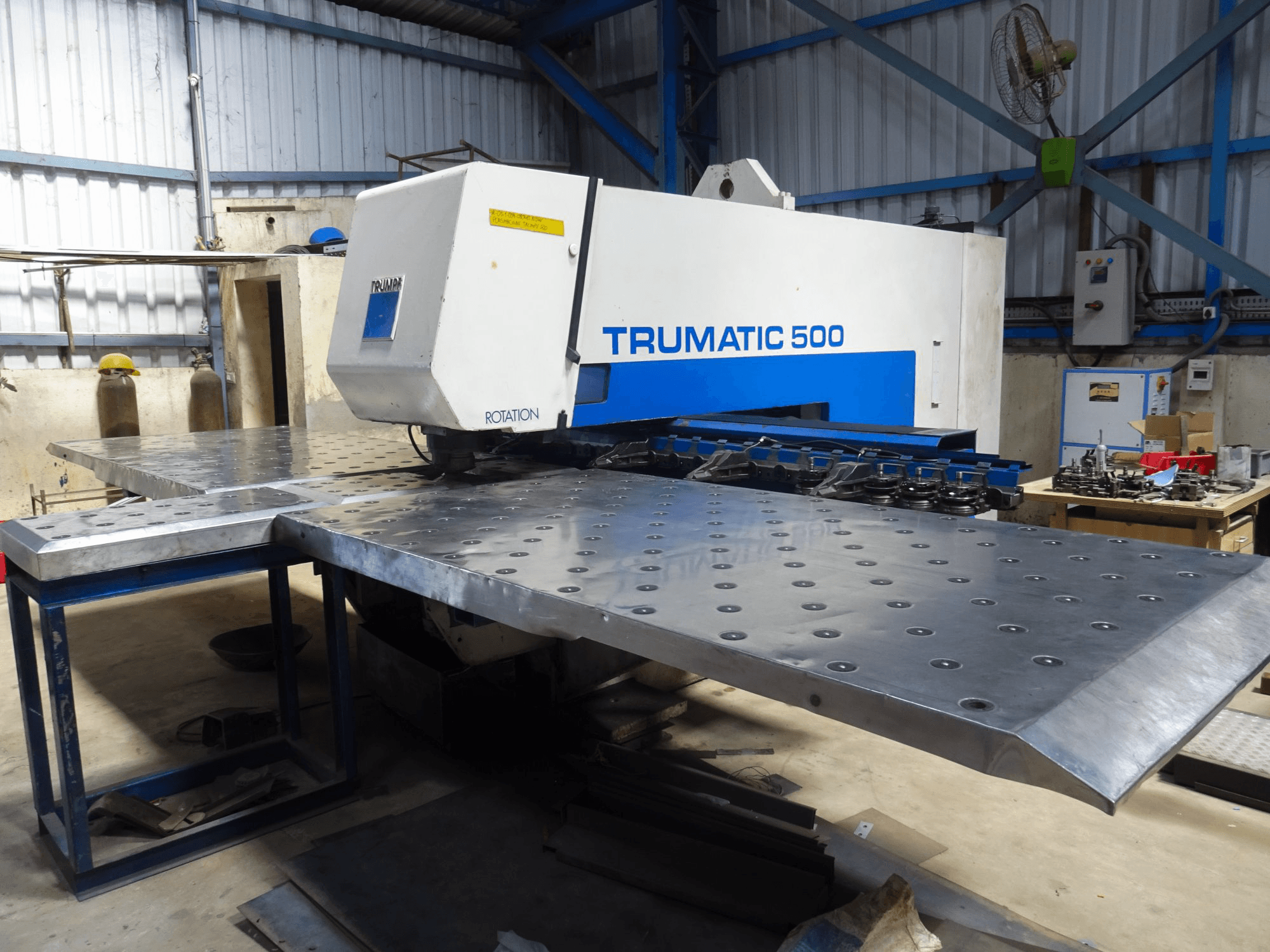

Right view of Trumpf Trumatic 500 Machine
Right view of Trumpf Trumatic 500 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic 500IN-PUN-TRU-1994-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf Trumatic 500 Turret Punching Machine was manufactured in 1994 and has worked approximately 55200 production hours ever since. This machine is equipped with a Bosch Trumagraph Control unit, working with a 220 kN strong punching force. In the past, this machine has worked mostly on up to 6 mm thick mild steel and stands out because of its stations, all 20 of which are auto indexed.

Overview

  • brand: TRUMPF
  • year: 1994
  • MODEL: Trumatic 500
  • production hours: 55200
  • application type: Punching
  • Location: India
  • machine type: Punch-Laser Combination
  • availability: Sold
  • control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500

General Data

  • Measurements width: 5200 mm
  • Measurements depth: 5200 mm
  • Measurements height: 2200 mm
  • Machine weight: 11050 kg

Control Unit

  • Model: Trumagraph
  • Brand: BOSCH

Main drive

  • Punching force: 220 kN
  • Maximum sheet thickness: 6 mm

Movement

  • X-AXIS Movement: 2500 mm
  • Y-AXIS Movement: 1250 mm

Tools

  • Number of index: 20
  • Number of stations: 20

Max Material thickness

  • Steel: 6 mm
  • Stainless steel: 3 mm
  • Aluminum: 2 mm

Media

  • Main electronic connection: 400 V
  • Power consumption: 17 kVA
  • Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
