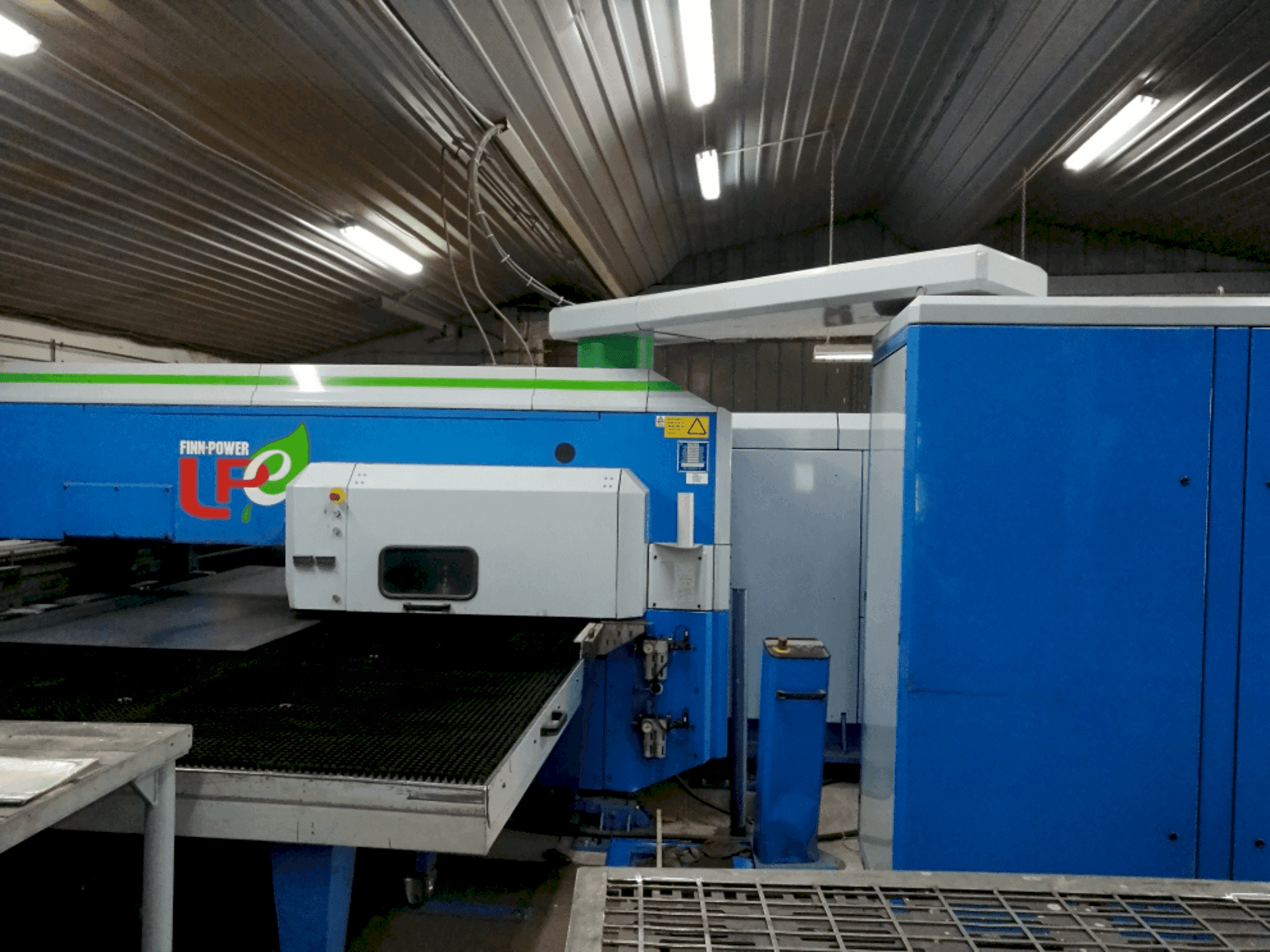

Front view of Finn-Power LPE5 SWUH  machine

Finn-Power - LPE5 SWUHHR-BEN-FIN-2002-00001

Rs. 2,585,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Finn-Power LPE5 SWUH punch-laser combination was manufactured in 2002. It features a Siemens Sinumerik 840D CNC, a ROFIN-SINAR laser with 2.5 kW power, and a servo-electric punching force of 20 tons. The work surface is 2500×1250 mm, and it includes 20 tool stations with a max tool diameter of 89 mm. Consider the opportunity to buy this Finn-Power LPE5 SWUH punch-laser combination. Contact us for more information about this machine.

Overview

  • brand: Finn-Power
  • year: 2002
  • MODEL: LPE5 SWUH
  • application type: Punching
  • Location: Croatia
  • machine type: Punch-Laser Combination
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - Finn-Power LPE5 SWUH

Control Unit

  • Brand: SIEMENS
  • Model: Siemens Sinumerik 840D

Main drive

  • Throat: Work Chute: Opening for cut pieces
  • Punching force: 20 tons (Servo-electric) KN
  • Number of axis: 3

Table

  • Outer length: 2500 mm
  • Outer width: 1250 mm

Turret

  • Number of tool slots: 20

Tools

  • Max tool diameter: 89 mm

    Additional equipment

    • - Sorting Unit (SU6): Capacity for up to 3 euro pallets, each dividable into 2 sections for a total of 6 sorting locations
    • - Offline Software License: x1
    • - Brush Table
    • - Protective Light Barrier around the machine

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Power: 2500 watts
        • - Tool type: thick turret
        • - Indexed cells: 2
        • - Hole punch (1st opening): 500×500 mm
        • - Laser (2nd opening): 300×400 mm
        • - Laser (3rd opening): 800×800 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
