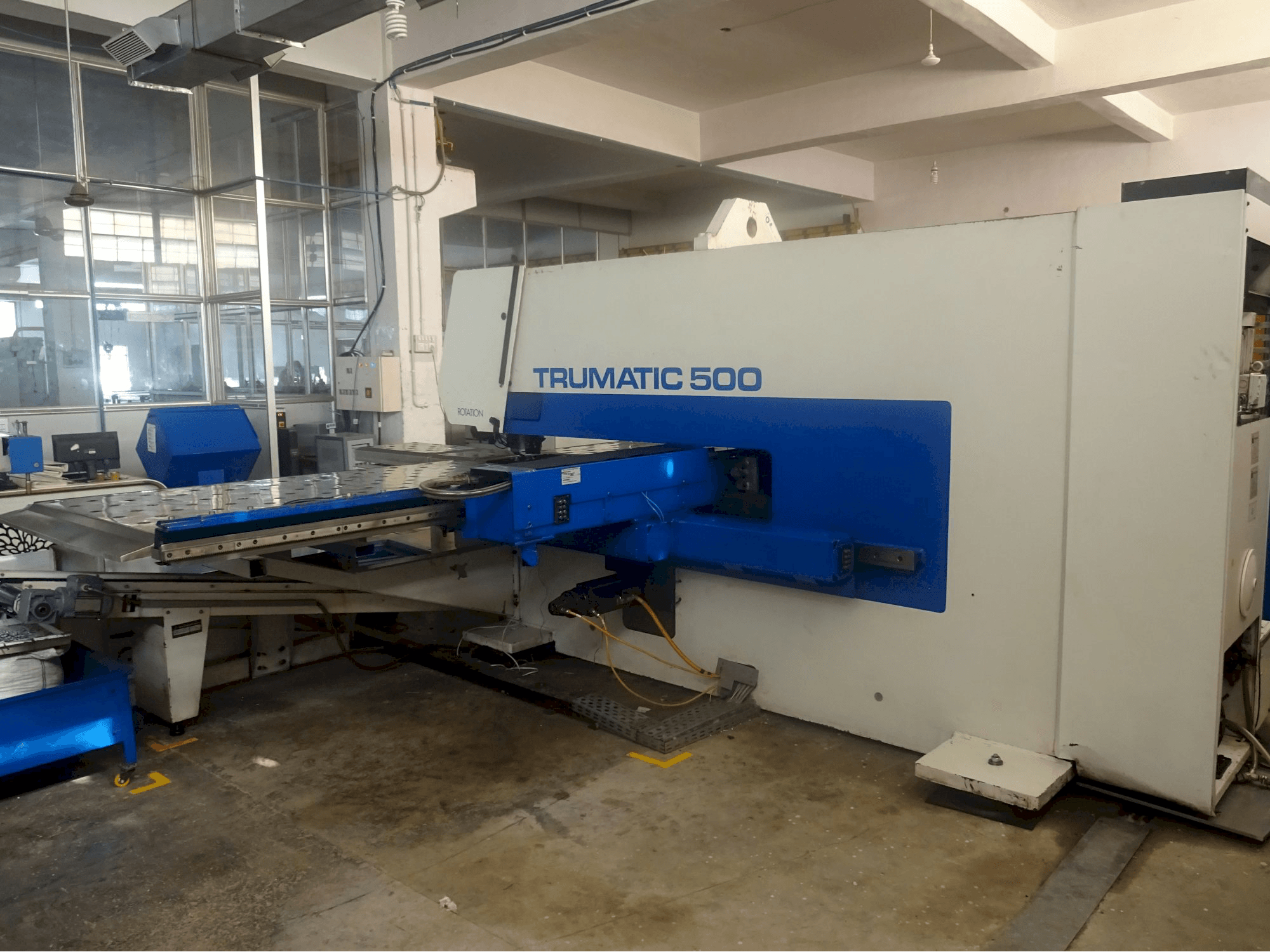

Right side view of Trumpf Trumatic 500 R Machine
Right side view of Trumpf Trumatic 500 R Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic 500 RIN-PUN-TRU-1995-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf Trumatic 500 R Turret Punching Machine was manufactured in Germany in the year 1995 and counts with 43127 production hours since then. Equipped with a BOSCH Trumagraph CC220S Control unit, this machine has mainly worked with stainless steel during the past up to 1.5 mm of thickness. This model stands out due to its large format and for having auto indexed stations. A Sheet Master and an Unloader are included among additional equipment.

Overview

  • brand: TRUMPF
  • year: 1995
  • MODEL: Trumatic 500 R
  • production hours: 43127
  • application type: Punching
  • Location: India
  • machine type: Punch-Laser Combination
  • control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500 R

General Data

  • Measurements width: 6501 mm
  • Measurements depth: 5842 mm
  • Measurements height: 2718 mm
  • Machine weight: 11050 kg

Control Unit

  • Brand: BOSCH
  • Model: Trumagraph CC220S
  • CNC main language: German
  • CNC language customizable: Yes

Main drive

  • Punching force: 220 kN
  • Maximum sheet thickness: 6 mm

Movement

  • X-AXIS Movement: 2500 mm
  • Y-AXIS Movement: 1270 mm

Tools

  • Number of index: 20
  • Number of stations: 20

Max Material thickness

  • Steel: 3 mm
  • Stainless steel: 4 mm
  • Aluminum: 2 mm

Media

  • Main electronic connection: 400 V
  • Power consumption: 19 kVA

    Additional Information

    Additional equipment

    • 12x Tool
    • Trumpf Sheet Master
    • Sheet Unloader

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
