➤ Pre-Owned Trumpf Trumatic 2000 R Turret Punching Machine

Show in original language

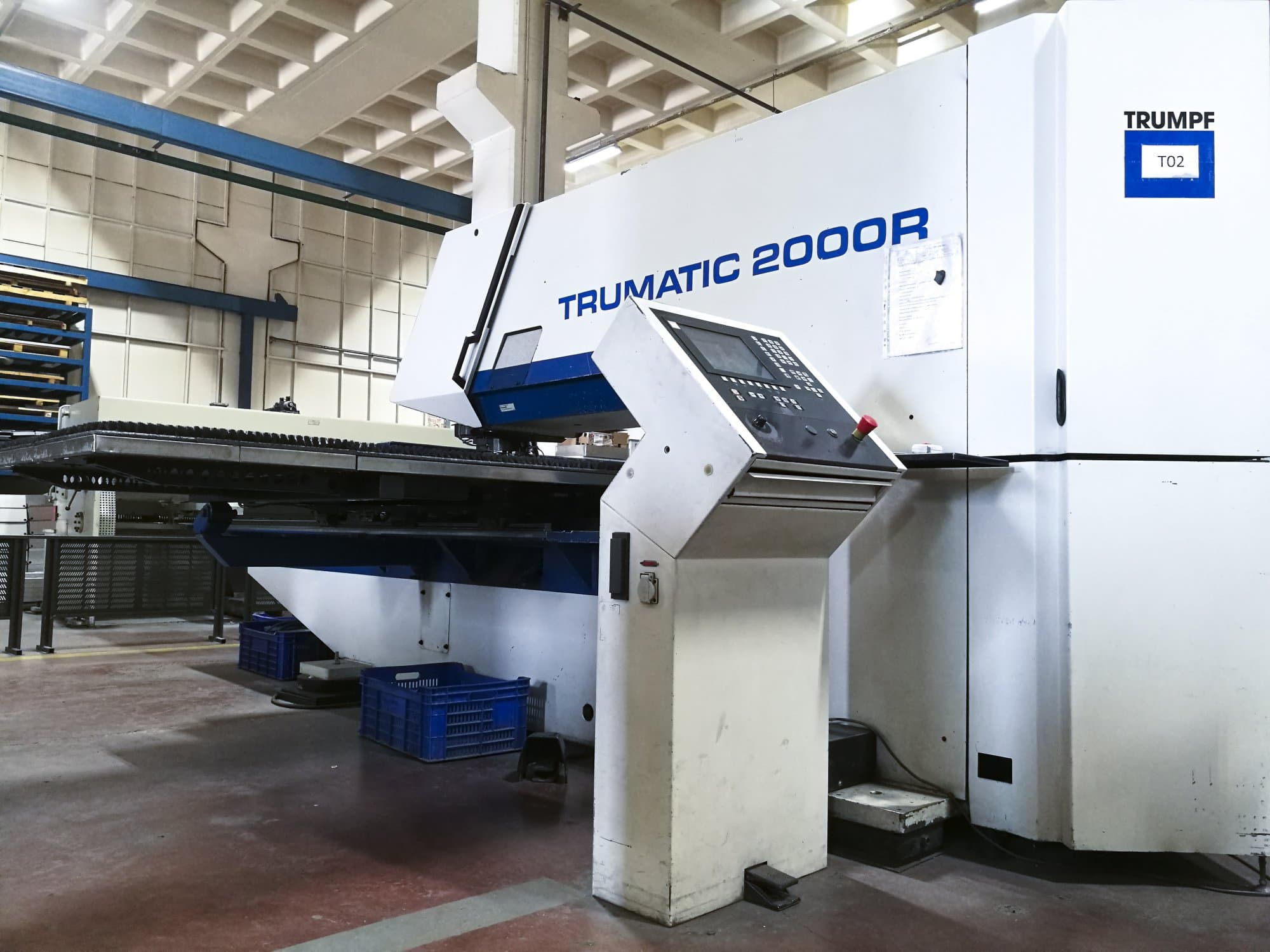

This Trumpf Trumatic 2000 R Turret Punching Machine from 2000 has a production record of 45242 hours. Operated through a Bosch Control Unit, the equipment stands out for its excellent condition.

Overview

brand: TRUMPF
year: 2000
MODEL: Trumatic 2000 R
production hours: 45242
application type: Punching
Location: Turkey
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 2000 R

General Data

Measurements width: 6000 mm
Measurements depth: 4100 mm
Measurements height: 2070 mm
Machine weight: 9200 kg

Control Unit

Brand: BOSCH

Main drive

Punching force: 180 kN

Movement

X-AXIS Movement: 2500 mm
X-AXIS Working Feed: 90 m/min
Y-AXIS Movement: 1250 mm
Y-AXIS Working Feed: 60 m/min
X-Y-Simultaneous Working Feed: 180 m/min
C-AXIS Movement: 360° MM
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece z: 6.4 mm
Workpiece weight: 75 kg

Table

Max punching diameter: 76 mm

Tools

Slots in storage: 10

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 17 kVA
Air pressure: 7-14 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
