➤ Trumpf Trumatic 2000 R Turret Punching Machine - Used

Show in original language

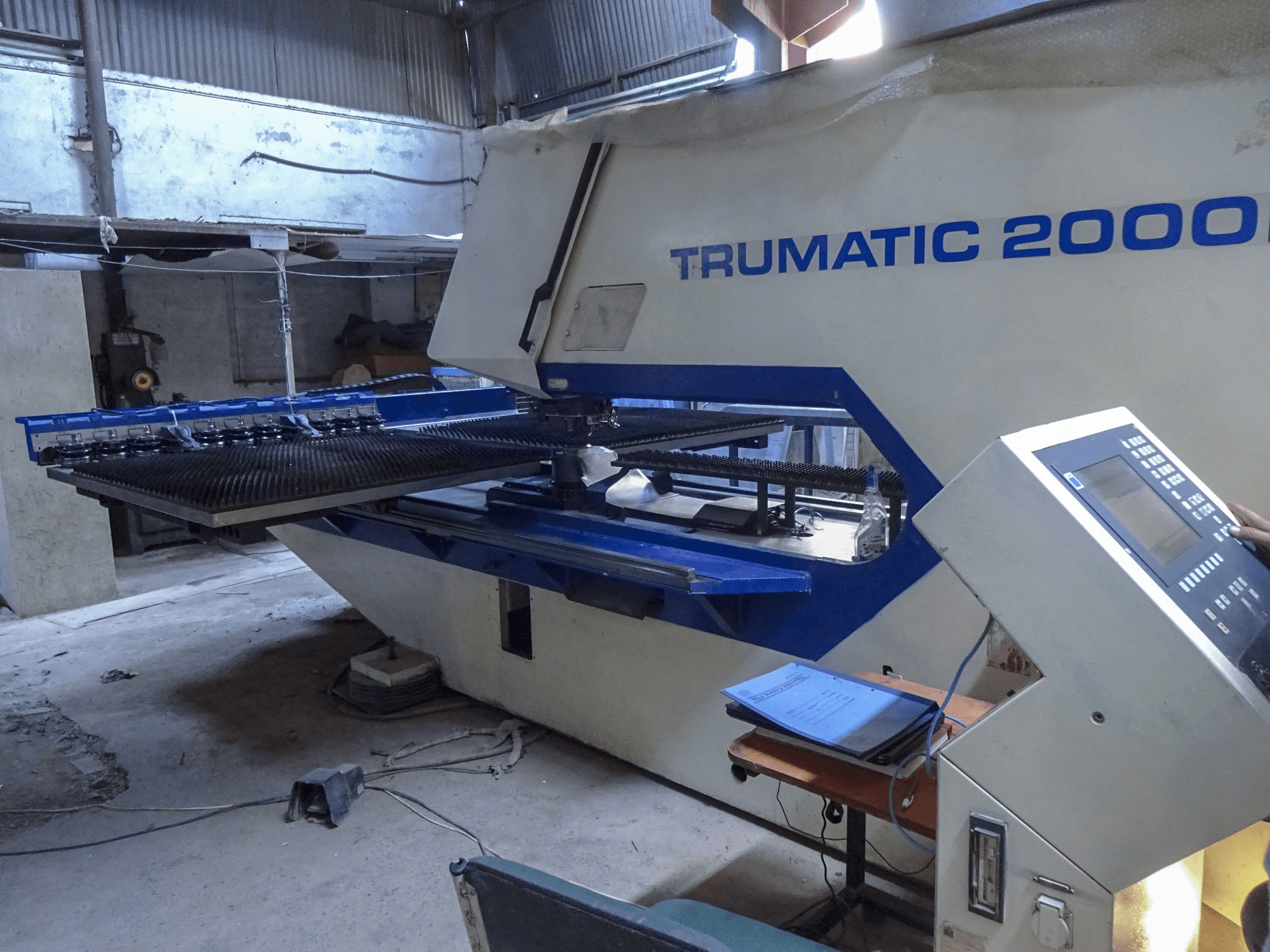

This Trumpf Trumatic 2000 R Turret Punching Machine from 2001 was manufactured in Germany in 2001 and has a working record of approximately 48600 production hours. With a Bosch Control unit with RS232 interface, in the past this machine has handled mainly mild steel of up to 3 mm of thickness. The model is a large format of punching machine and has the same number of auto index as stations. 10 complementary tools are included as additional equipment.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic 2000 R
production hours: 48600
application type: Punching
Location: India
machine type: Punch-Laser Combination
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 2000 R

General Data

Measurements width: 2800 mm
Measurements depth: 5500 mm
Measurements height: 2200 mm
Machine weight: 9200 kg

Control Unit

Interface: RS232
Brand: BOSCH

Main drive

Punching force: 180 kN
Maximum sheet thickness: 4 mm

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1250 mm

Tools

Number of index: 10
Number of stations: 10
Max tool diameter: 76 mm

Max Material thickness

Steel: 4 mm
Stainless steel: 2 mm
Aluminum: 5 mm

Media

Main electronic connection: 400 V/50 Hz
Power consumption: 17 kVA
Air pressure: 7 bar

Additional Information

Additional equipment

10x tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
