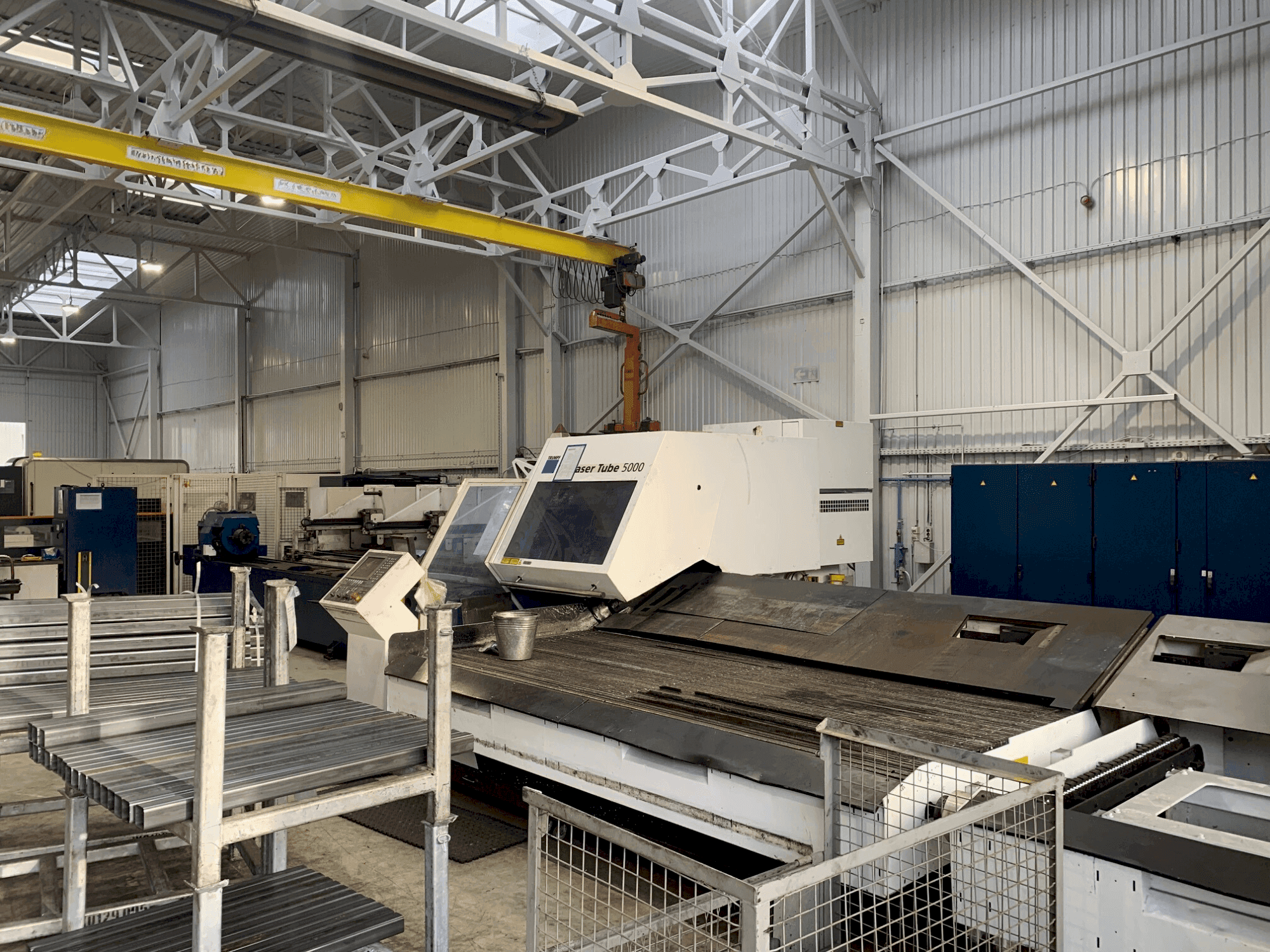

Front view of TRUMPF TruLaser Tube 5000 machine
Front view of TRUMPF TruLaser Tube 5000 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - TruLaser Tube 5000HU-LAS-TRU-2010-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TRUMPF TruLaser Tube 5000 Laser cutting machine was manufactured in 2010 in Germany and has 16681 laser hours (63477 Operating hours). Dispose of a Trutops (version: 17.0.0.161) used Software. This machine has these laser gas consumption (Purity): He (4.6): 13 l/h, CO2 (4.5): 1 l/h, N2 (5.0): 6 l/h.

Overview

  • brand: TRUMPF
  • year: 2010
  • MODEL: TruLaser Tube 5000
  • production hours: 16681
  • application type: Cutting
  • Location: Hungary
  • machine type: Tube Cutting Machine
  • availability: Sold

Technical Information - TRUMPF TruLaser Tube 5000

General Data

  • Measurements width: 15800 mm
  • Measurements depth: 8100 mm
  • Measurements height: 2400 mm
  • Machine weight: 17500 kg

Main drive

  • Laserpower: 3200 KW

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum machinable tube length: 6450mm
      • - Minimum raw material length for automatic feeding: 3000mm
      • - Minimum remaining tube length: 141mm
      • - Maximum profile that can be cut; tube: dia 20-150 mm
      • - Closed section: 95x95 mm
      • - Max. Sheet thickness (carbon steel): 6 mm (safely 5mm in current condition)
      • - Used software: trutops (version: 17. 0. 0. 161)
      • - Tubedesign (version: 6. 0. 0. 1560 13 nov 2015)
      • - Laser gas consumption (purity): he (4. 6): 13 l/h // co2 (4. 5): 1 l/h // n2 (5. 0): 6 l/h
      • - Operating hours: 63477 // laser hours: 16681

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
