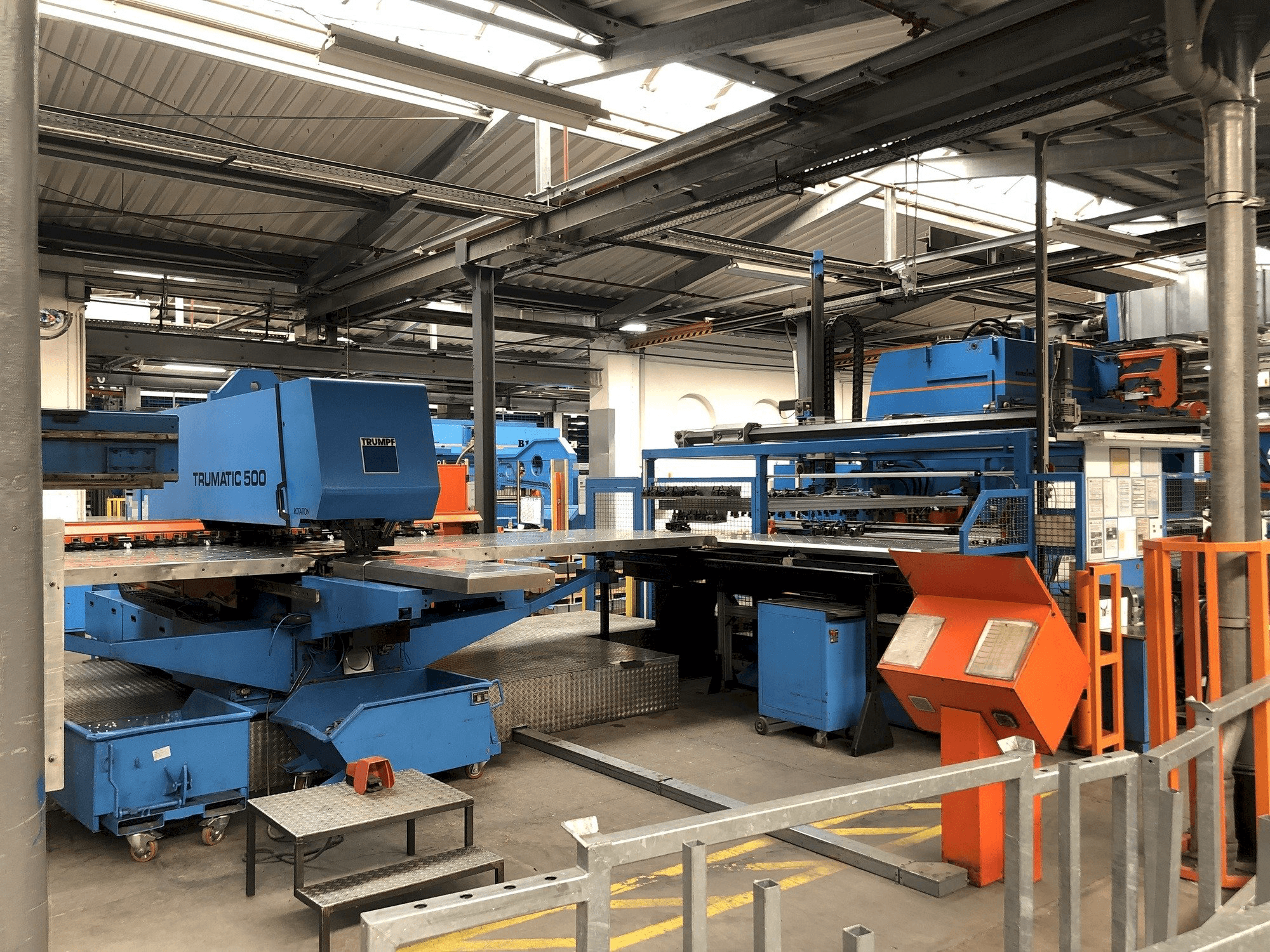

Trumpf TC 500 + Weinbrenner B12 Punching and Bending machine

Show in original language

This Trumpf TC 500 + Weinbrenner B12 Punching and Bending machine were manufactured in the year 1996 in Germany and has 113660 production hours. It is a combination center of two machines Trumpf TC500/ + Weinbrenner B12 and is equipped with a SIEMENS SINUMERIK control unit. The machine has a punching force of 220 kN, is in very good condition and well maintained.

Overview

brand: TRUMPF
year: 1996
MODEL: TC500/ - Weinbrenner B12
production hours: 113660
application type: Punching
Location: Germany
machine type: Punch-Laser Combination
control unit brand: SIEMENS

Technical Information - TRUMPF TC500/ - Weinbrenner B12

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK

Dimensions

Machine Depth: 6300 mm
Machine Weight: 13800 kg
Table Length: 3000 mm
Table Width: 1600 mm

Technical Specification

Punching Force: 220 Kn

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very well maintained

Technical Machine Benefits

Max. Stroke sequence: 780 1/min
Max. Sheet thickness: 8mm
X axis: 90 m/min y axis: 60 m/min simultaneous: 108 m/min c axis: 360°/s
Position deviation: +/- 0. 1mm
Average position spread: +/- 0. 03mm
Trumalift with sheetmaster
2 stopa raw sheet stations (movable)
Quick set quickload
36 complete punching tools incl. Tool cassettes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
