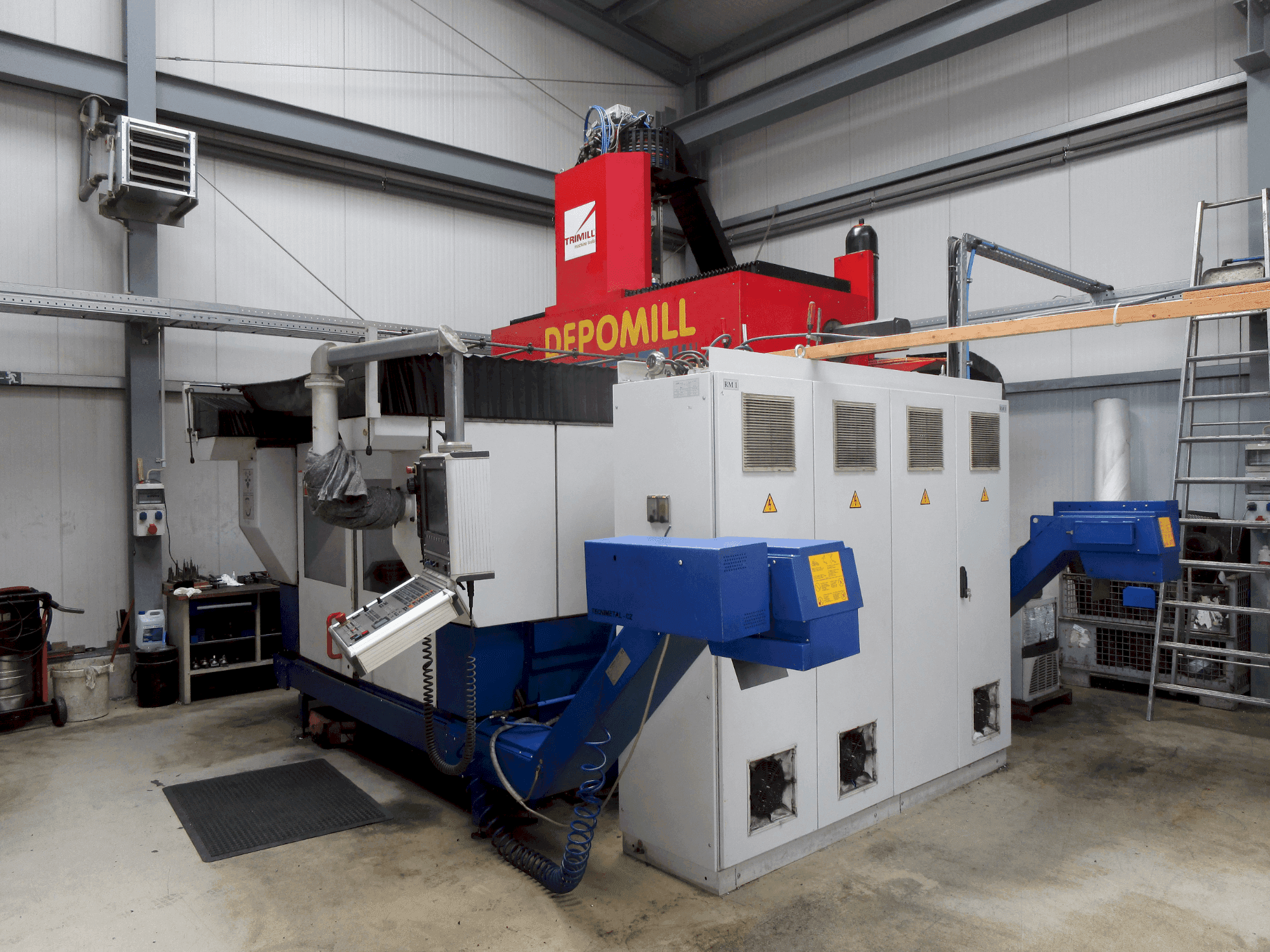

Front view of TRIMILL DEPO Mill  machine

TRIMILL - DEPO MillDE-MIL-TRI-2007-00002

Rs. 10,769,250
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis TRIMILL DEPO Mill was manufactured in 2007. A robust vertical machining center featuring a Heidenhain iTNC 530 control, a high-frequency spindle with a speed of 16,000 min-1, and a main spindle speed of 10,000 min-1. It supports a maximum workpiece weight of 20,000kg and offers a spacious clamping surface of 2300 x 1600 mm. For more information about this vertical machining center, please reach out to us.

Overview

  • brand: TRIMILL
  • year: 2007
  • MODEL: DEPO Mill
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - TRIMILL DEPO Mill

Control Unit

  • Brand: Heidenhain
  • Model: iTNC 530

Main drive

  • Spindle speed range: 1 - 12,000 1/MIN
  • Tool taper: HSK 100 A
  • Number of axis: 3

Movement

  • X-AXIS Movement: 2000 mm
  • Y-AXIS Movement: 1200 mm
  • Z-AXIS Movement: 800 mm
  • AXIS 1 Movement: +/- 180 °

Workpiece

  • Workpiece weight: Max 23,000kg

Tools

  • Slots in storage: 20

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Diameter of the front spindle bearing: 100mm
      • - Continuous torque: 200 nm
      • - Distance clamping surface/spindle nose: max 1010mm
      • - Air through spindle
      • - Main spindle weiss max speed: 10000
      • - High frequency spindle imt hsk40 with docking station speed: 16000

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
