TRAUB TNS 26 DGY

TRAUB - TNS 26 DGYPL-TUR-TRA-1991-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

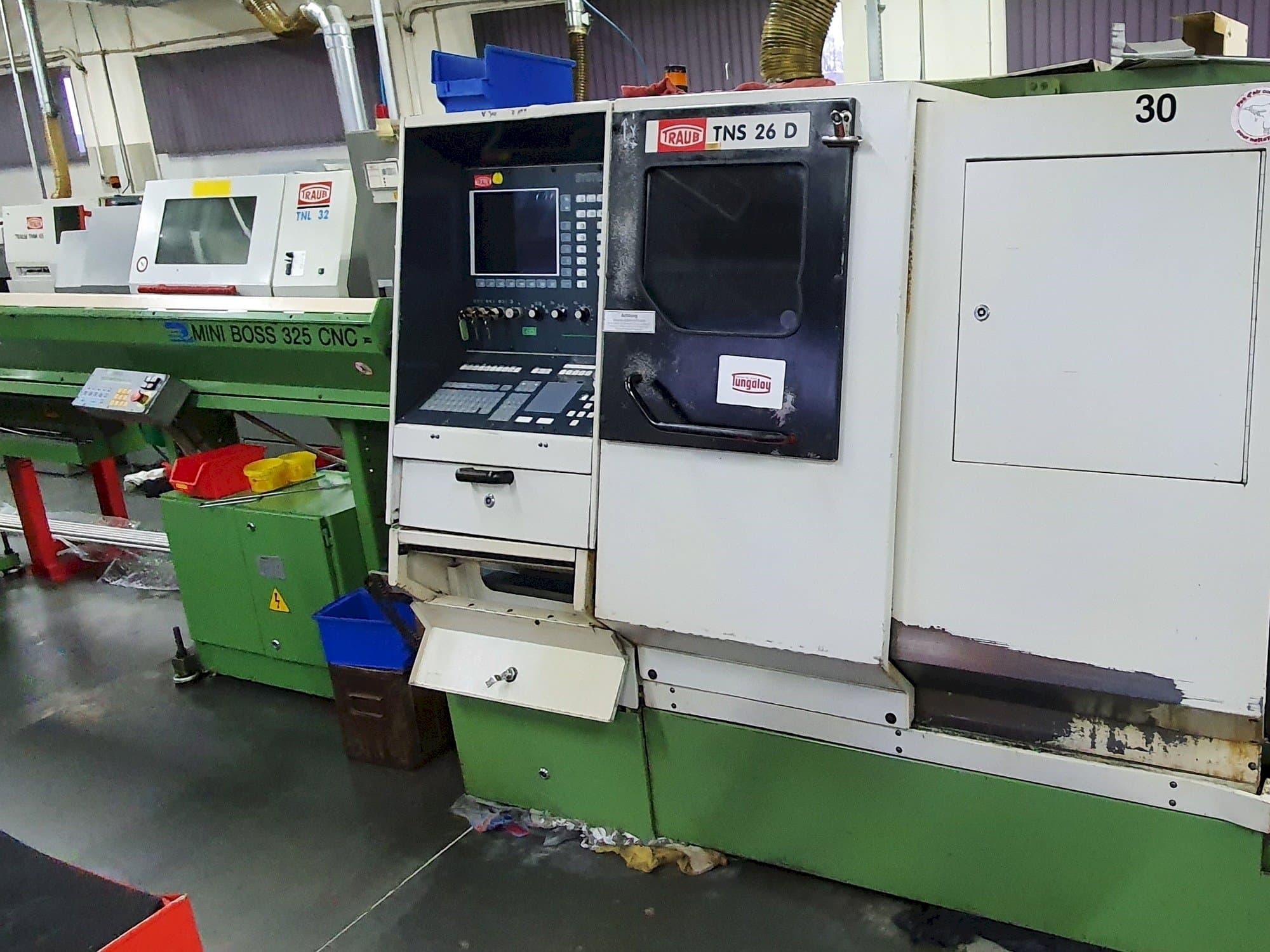

This Traub TNS 26 DGY lathe was built in 1991 in Germany. It has 67829 working hours. This machine operates through a TRAUB SYSTEM TX 8F control unit. It has a spindle speed up to 7000 rpm and a turning length 270 mm. This machine is in good working condition and ready for tests.

Overview

brand: TRAUB
year: 1991
MODEL: TNS 26 DGY
production hours: 67829
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine

Technical Information - TRAUB TNS 26 DGY

Dimensions

Machine Depth: 1900 mm
Machine Height: 2090 mm
Machine Weight: 4600 kg

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 7000 RPM

Additional Information

Additional equipment

Coolant tank
IEMCA MINI BOSS 325 bar magazine (YOM 1997)
No tooling

Machine Benefits

Qualitative Machine Benefits

Machine in good working condition
Ready for test
Full technical documentation.

Technical Machine Benefits

Turret 1 with axes: x, z, y, driven tools
Turret 2 with axes: x, z, driven tools
C axis and z axis (v)
Driven tool stations: 12 + 12 pcs
Max turning length: 270 mm
Spindle passage: 30 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
