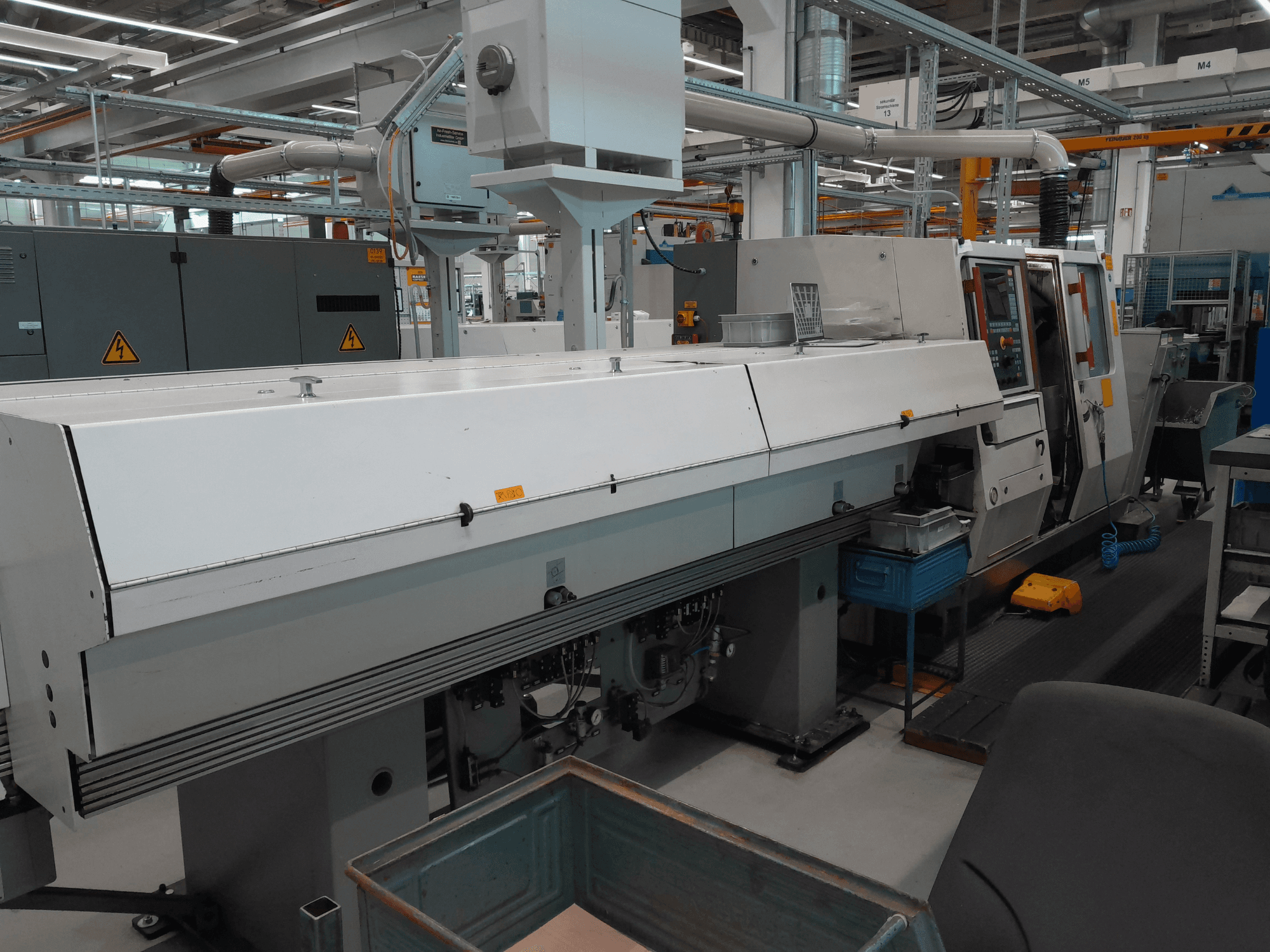

This 3-axis TRAUB TNA 300 horizontal turning machine was manufactured in 2000. It features a spindle diameter of 65 mm and includes a high-pressure coolant system, driven tools with 4 kW power, and an automatic bar change system. The machine is equipped with a chip conveyor and tool monitoring systems for enhanced efficiency. If you are looking to get high-quality turning capabilities, consider the TRAUB TNA 300 machine we have for sale. Contact us for further details.
Overview
- brand: TRAUB
- year: 2000
- MODEL: TNA 300
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand:
Technical Information - TRAUB TNA 300
Movement
- Number of Axes: 3
- X-axis Travel: 210 mm
- Z-axis Travel: 450 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
Additional Information
Spindle diameter: 65 mm
Machine version: without tailstock
Basic configuration: included
Hydraulic hollow clamping cylinder: included
High-pressure coolant system: 12 bar / 3 bar
Control system: TX8H, 32-bit technology; processor latest generation (at time of build); parameter data on diskette
Axes/functions:
C-axis: included (numerically controlled spindle positioning and turning axis)
Y-axis: not included
Driven tools: included; power 4 kW
Monitoring and safety:
Tool breakage monitoring: included
Tool wear monitoring: included
Automatic drive shutdown after material end: selectable via parameter
Error message via parameter: selectable
Guideway cover: included
Workholding:
Collet clamping system: ROHM
Collet system compatibility:
DIN 6343 size 185E, max diameter 60 mm
DIN 6343 size 48, max diameter 42 mm
Rubberflex series 52 compatible
Rubberflex series 36 compatible
Fahrion collet FM 1149 MB compatible
Fahrion collet FM 1148 MB compatible
Electrical:
Electrical system according to: VDE / EN 60204
Operating voltage: 400 V / 50 Hz
Accessory voltage: 230 V / 50 Hz
Control voltage: 24 V DC
Multi-voltage transformer: 460 / 400 / 380 / 220 / 200 V
EMC:
Compliance: industrial class A
Standards: EN 50081 / EN 50082 / EN 55011 / EN 55022
Machine standards: DIN EN 292; DIN EN 294; DIN EN 418; DIN EN 60204-1
Pneumatic system: Mannesmann Rexroth ISO
Additional equipment
Chip conveyor: included
Workpiece removal device: included; via conveyor, left side discharge
Bar feeder preparation: included
Bar feeder: TRAUB DNH 61-3000 (automatic)
Feeding: telescopic pusher system
Bar shapes: round / hexagonal / square
Maximum bar length: 3200 mm
Maximum bar diameter (long bars): 63 mm
Maximum bar diameter (short pieces): 65 mm
Automatic bar change: included
Residual piece removal: forward
Central adjustment of bar diameter: included
Stepless feed force adjustment: included
Central magazine adjustment: included
No guide channel change required
No clamping sleeve change required
Short remnant pieces possible
Transverse loading system
Transport weight: approx. 2100 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
