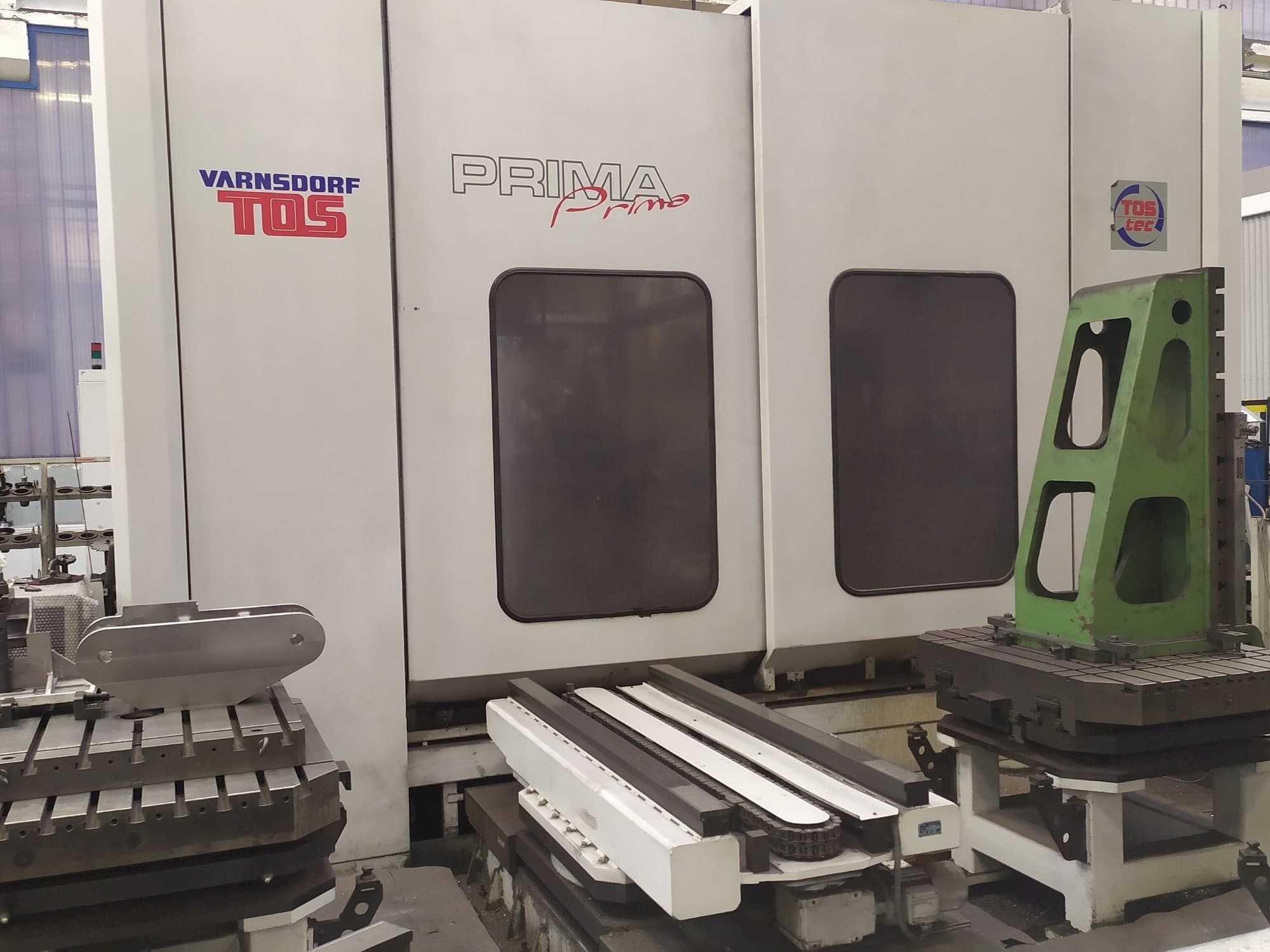

This TOS Prima horizontal machining center was built in 2007 in Czech Republic. It has a total of 65471 hours, of which 21744 are spindle hours. It is operated through a HEIDENHAIN iTNC 530 control unit. This 5 axis machine can perform with a spindle speed up to 5000 rpm and a work feed rate 20000 mm/min. It has been regularly maintained by TOS service only.

Overview

brand: TOS
year: 2007
MODEL: Prima
production hours: 65471
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - TOS Prima

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Table Length: 1250 mm
Table Width: 1000 mm

Movement

Number of Axes: 5
X-axis Travel: 2000 mm
Y-axis Travel: 1300 mm
Z-axis Travel: 1600 mm

Technical Specification

Max. Tool Weight: 25 kg
Number of Tools: 40
Spindle Power: 28 kW
Spindle Speed: 5000 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
Regularly maintained by tos service only
New spindle bearings installed at 16. 000 hours

Technical Machine Benefits

Spindle diameter 100 mm
Torque 874/1100 nm (s6/s1)
Work feedrate 20. 000 mm/min
Rapid feedrate 30. 000 mm/min
B axis (table) indexing 0. 001 degree
Through spindle coolant 30 bar
5-pallet machining center

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
