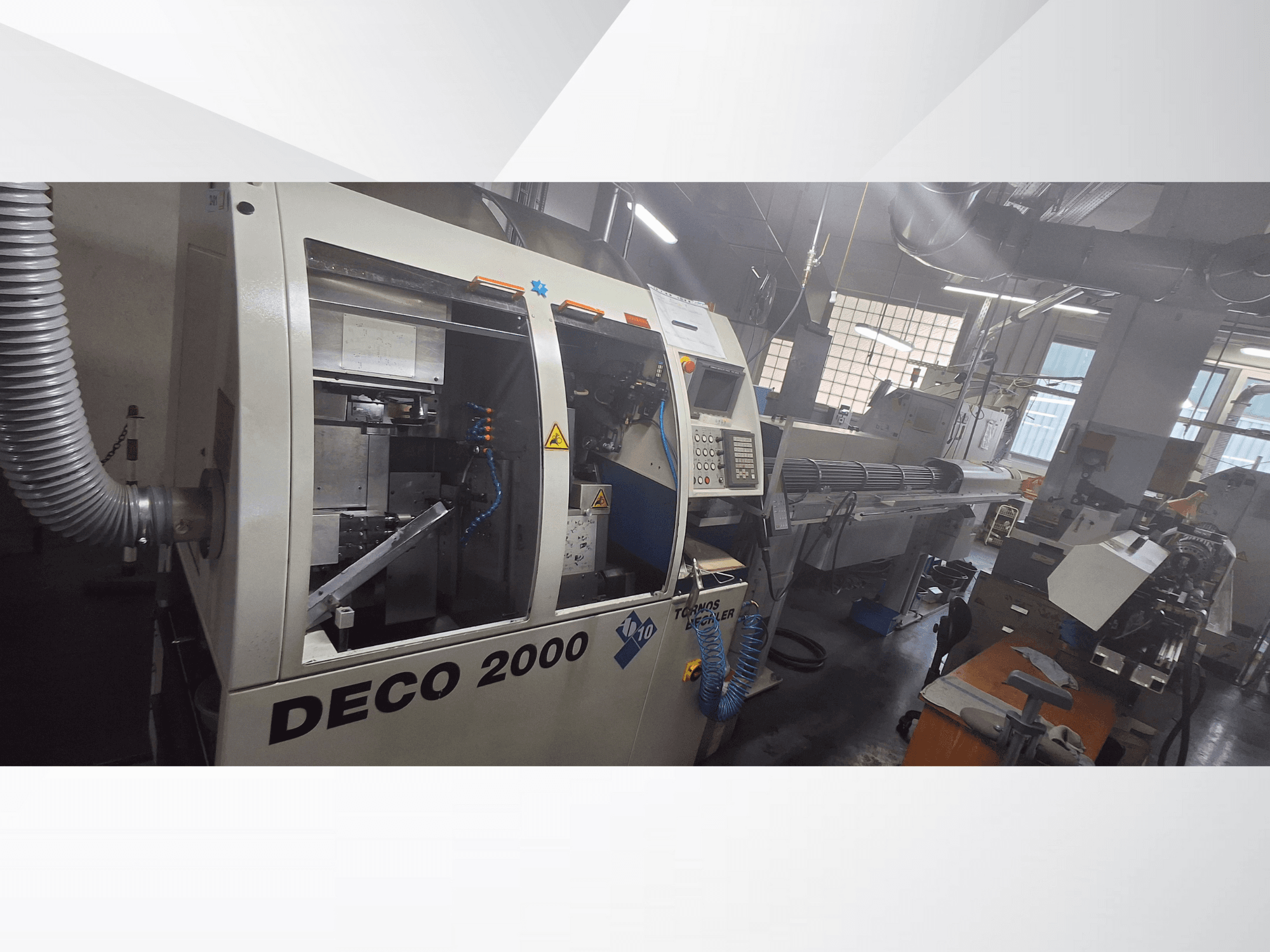

This TORNOS DECO 2000 swiss type turning machine was manufactured in 2000. It features a movable headstock, directional spindle stop, and cross slides with tool holders. Includes an independent counter spindle, lubrication device, and a loading magazine with drum. Equipped with a "HYBRIDE 10+5" drum for bars up to 10 mm and an integrated hydraulic unit. Contact us for more information about this machine.
Overview
- brand: TORNOS
- year: 2000
- MODEL: DECO 2000
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
Technical Information - TORNOS DECO 2000
Technical Specification
- Spindle Speed: 12000 RPM
Additional Information
Additional information
Electrical control box
Motor voltage: 400 V
Control voltage: 24 V
Movable headstock
Cross slide with 4 tool holders T11-T24 with vertical and horizontal movement
Pivoting workpiece holder on the counter spindle
Directional spindle stop S1
3 pre-settable turning tool holders
4 fixed tool holders
"HYBRIDE 10+5" drum with 14 guide tubes for 1-4 mm bars and 14 guide tubes for 4.1-10 mm bars without bar preparation up to 8 mm
Independent counter spindle
Tapping attachment for collet chuck ESX 12
Lubrication device for guide bushing with filter
Loading magazine with drum
Integrated 25-liter hydraulic unit with filter
Front/rear support foot, center height 1100 mm
Optional: Comprehensive package of measuring instruments
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
