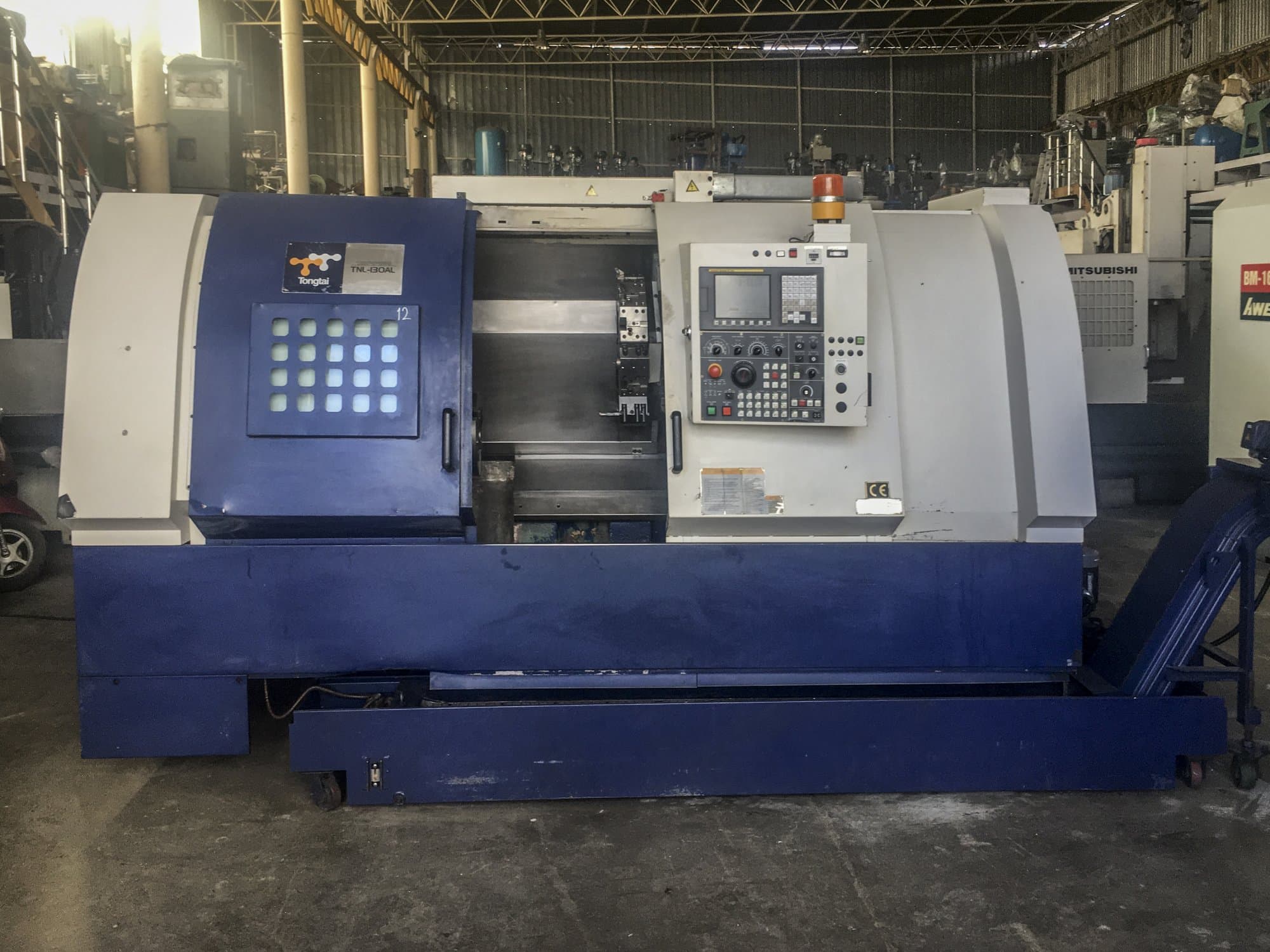

Front view of Tongtai TNL-130 AL Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Tongtai TNL-130 AL

Photo Gallery

Tongtai - TNL-130 ALTR-TUR-TON-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Tongtai TNL-130 AL Lathe

Show in original language

This Tongtai TNL-130 AL Lathe was manufactured in 2008 in Taiwan and has a working record of only 2185 production hours. Operated through a FANUC oi-TC Control unit, this model is able to process workpieces up to big sizes and has mainly worked with steel producing supplies for the automotive and machining industry. The machine is in very good conditions due to its little working hours and incorporates an additional chip conveyor.

Overview

brand: Tongtai
year: 2008
MODEL: TNL-130 AL
production hours: 2185
application type: Turning
Location: Turkey
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Tongtai TNL-130 AL

General Data

Measurements width: 3430 mm
Measurements depth: 1990 mm
Measurements height: 2030 mm
Machine weight: 7000 kg

Control Unit

Brand: FANUC
Model: oi-TC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/min

Movement

X-AXIS Movement: 245 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece drm: 410 mm
Workpiece x: 245 mm
Workpiece z: 975 mm

Turret

Number of turrets: 1

Tools

Max tool diameter: 40 mm

Media

Main electronic connection: 380 V / 3 P
Power consumption: 30 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Chip Conveyer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
