Tongtai H400

Photo Gallery

Tongtai - H400FR-MIL-TON-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

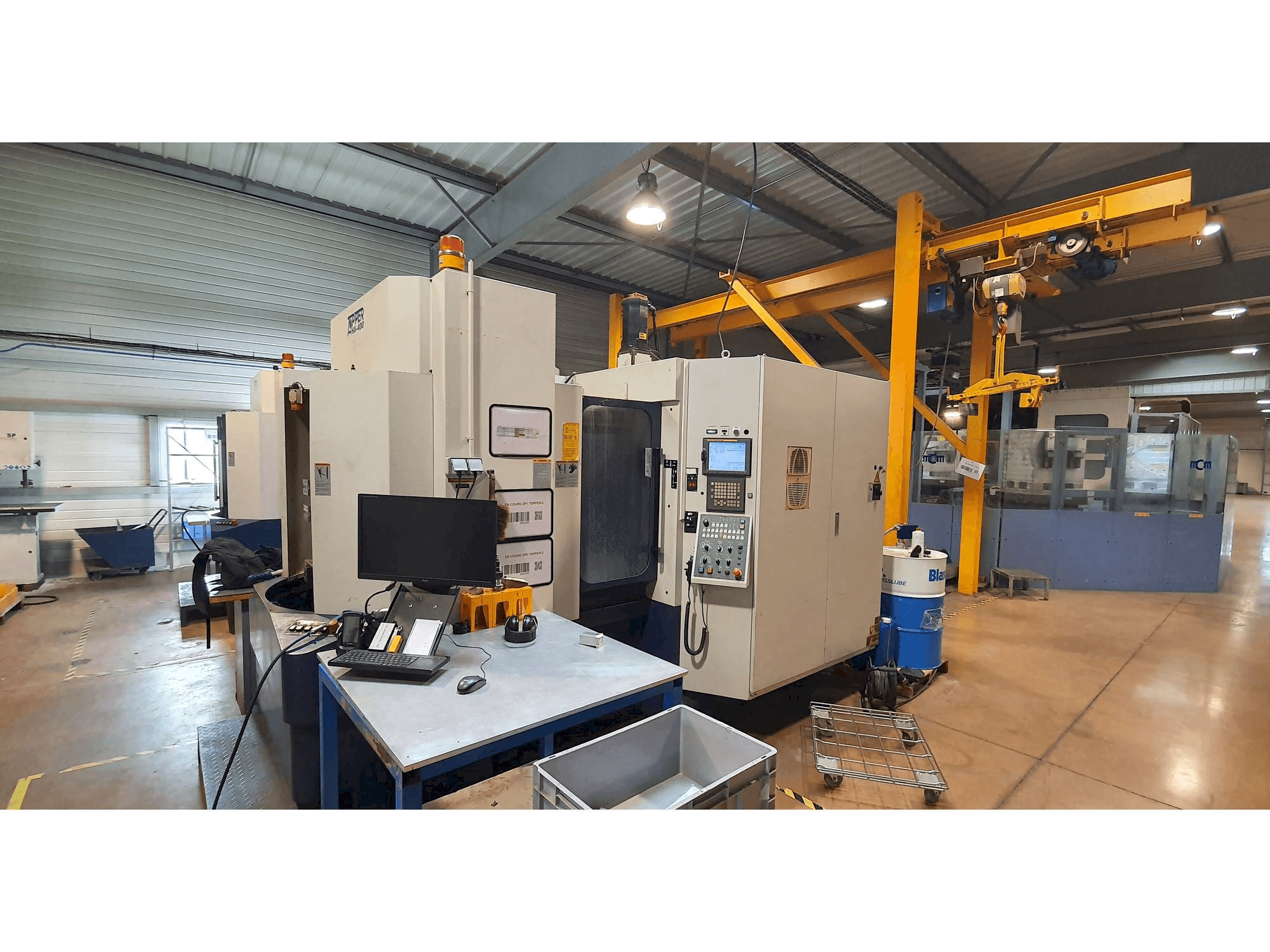

TONGTAI H400 Horizontal Machining center

Show in original language

This TONGTAI H400 Horizontal Machining center was manufactured in the year 2007. It is equipped with a Fanuc 18i-MB control unit. The machine has a spindle speed of 60-12000 rpm. There are 2 exact same units available.

Overview

brand: Tongtai
year: 2007
MODEL: H400
application type: Milling
Location: France
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Tongtai H400

General Data

Measurements width: 2860 mm
Measurements depth: 3700 mm
Measurements height: 2828 mm
Machine weight: 9500 kg

Control Unit

Model: Series 18i-MB
Brand: FANUC

Main drive

Spindle speed range: 60-12000 1/MIN
Spindle motor power: 22/25 kW
Tool taper: 7/24

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 560 mm

Turret

Number of turrets: 2

Tools

Slots in storage: 60
Max weight: 8 kg
Max tool diameter: 70 -140mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Table height: 1100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
