Tekna TK447/4

Photo Gallery

Tekna - TK447/4CZ-MIL-TEK-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

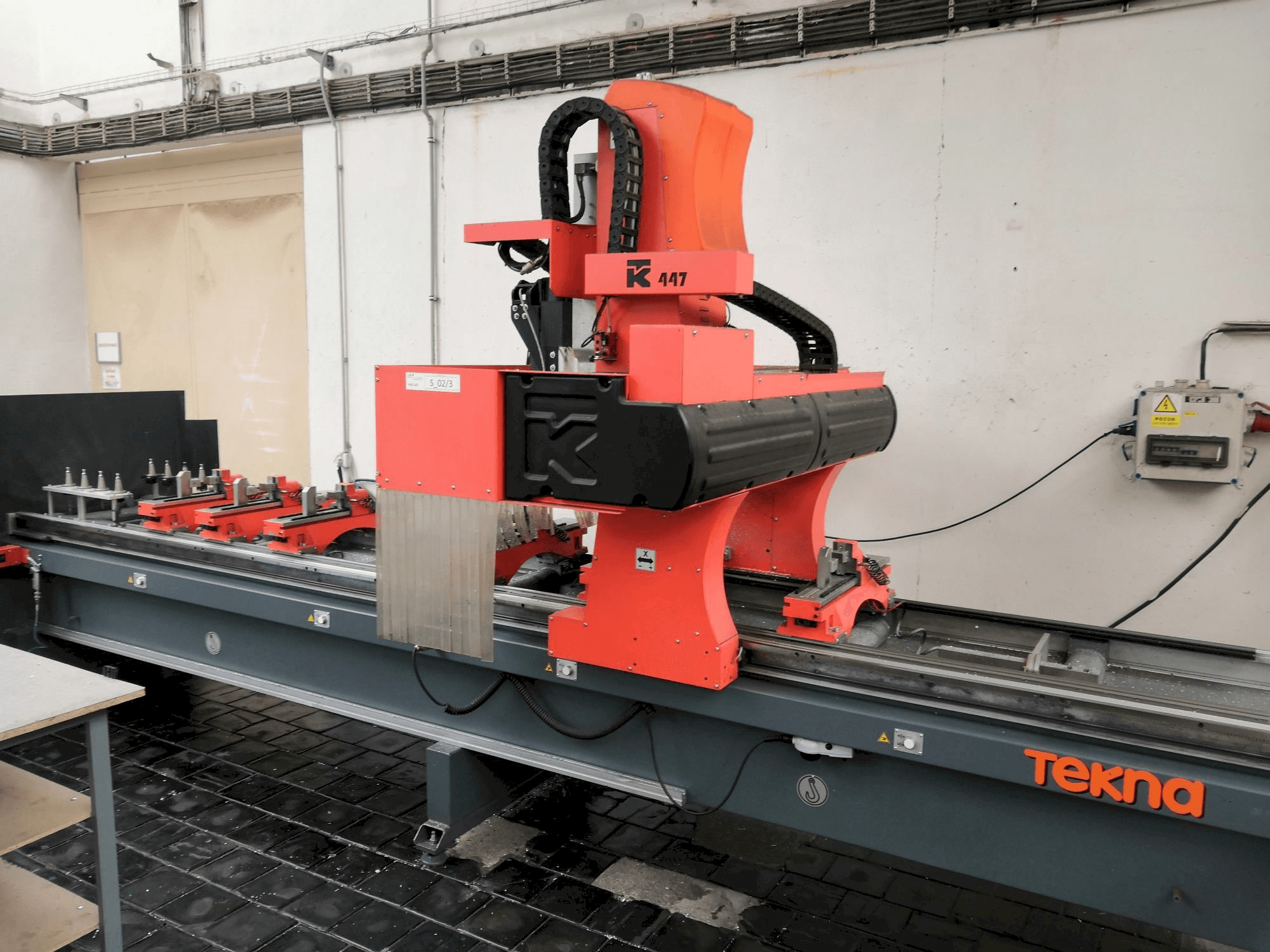

Tekna TK447/4 Vertical Machining center

Show in original language

This Tekna TK447/4 Vertical Machining center was made in Italy in the year 2013. It is operated through a Fagor control unit. This machine works with a spindle speed up to 18000 rpm. This is a 4-axis portal-type CNC machining center designed for drilling, milling and threading up to the size of M10(*) profiles made of aluminum, PVC, light alloys and thin-walled steel (up to 5 mm). It is in very good condition.

Overview

brand: Tekna
year: 2013
MODEL: TK447/4
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: FAGOR

Technical Information - Tekna TK447/4

Control Unit

Control Brand: FAGOR

Dimensions

Machine Weight: 1710 kg

Movement

Number of Axes: 4
X-axis Travel: 4000 mm

Technical Specification

Spindle Power: 9 kW
Spindle Speed: 18000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Includes machine manual
Very good condition
Is a 4-axis portal-type cnc machining center designed for drilling, milling and threading up to the size of m10(*) profiles made of aluminum, pvc, light alloys and thin-walled steel (up to 5 mm).

Technical Machine Benefits

Simultaneous axis operation
C-axis: +/- 90 degrees
C-axis indexation: 0. 01 degress
Max. Feedrate x-axis: 80 m/min
Max. Feedrate y-axis: 30 m/min
Max. Feedrate z-axis: 30 m/min
X-axis (longitudinal axis): 4000 mm • y-axis (transverse axis): 825 mm • z-axis (vertical axis): 400 mm • ° axis positioning accuracy: ±0. 1 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
