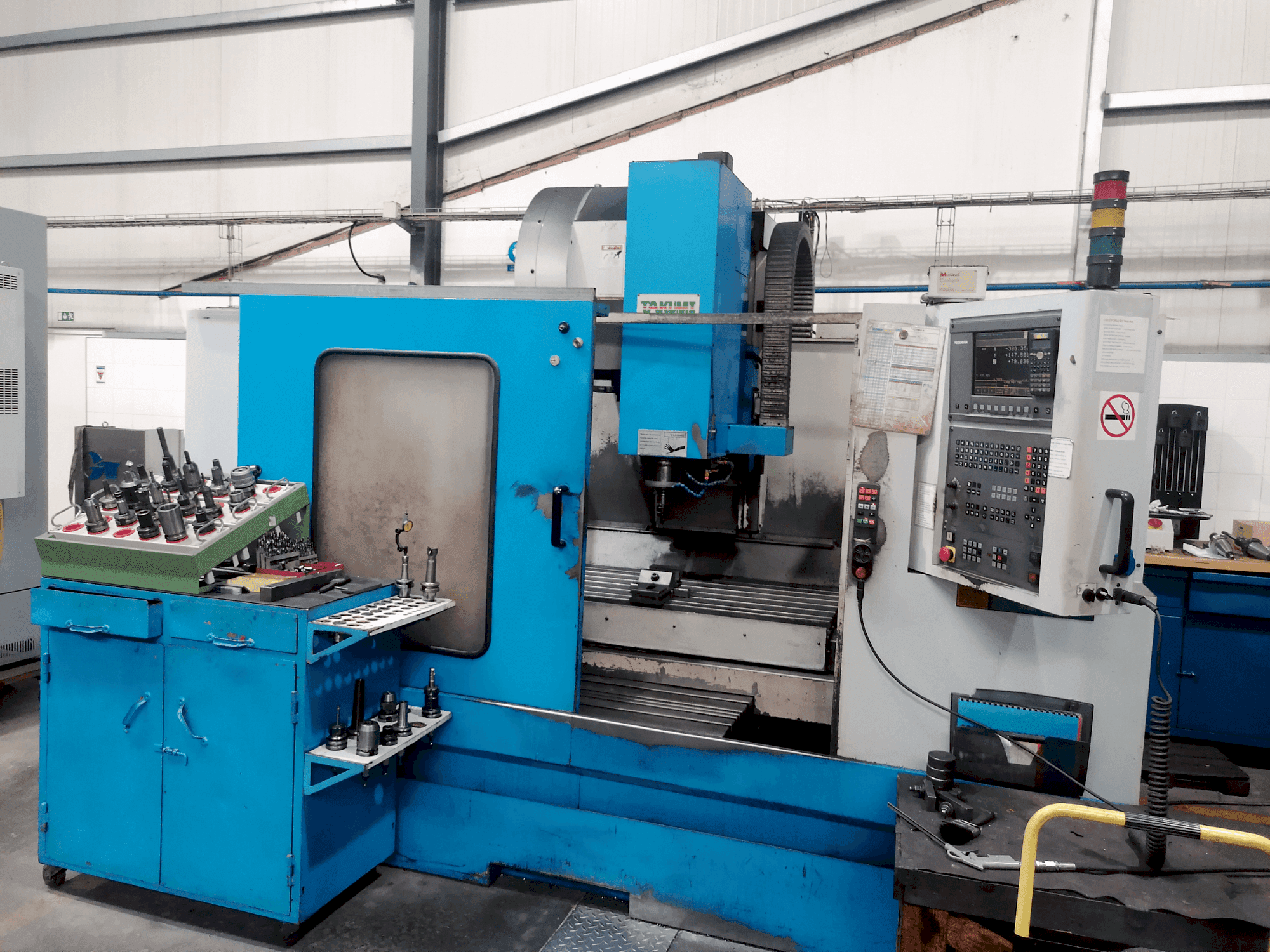

Front view of Takumi V11  machine

Takumi - V11PT-MIL-TAK-1999-00001

Rs. 1,357,500
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Takumi V11 was manufactured in 1999 and features a Heidenhain TNC 426 MA control, a portable electronic steering wheel, and an RS 232 interface. The table supports up to 1090 kg with a surface of 1150x550 mm. It boasts a maximum speed of 12,000 rpm and rapid advances in X and Y at 24000 mm/min. The automatic tool changer accommodates 24 tools. Consider the opportunity to buy this Takumi V11 machining centre. Contact us for more information.

Overview

  • brand: Takumi
  • year: 1999
  • MODEL: V11
  • application type: Milling
  • Location: Portugal
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - Takumi V11

Control Unit

  • Brand: Heidenhain
  • Model: TNC 426 MA

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 11 kW
  • Tool taper: BT40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1100 mm
  • Y-AXIS Movement: 550 mm
  • Z-AXIS Movement: 650 mm

Tools

  • Max weight: 7 kg
  • Max tool diameter: 90 mm/ 180 mm
  • Max tool length: 250 mm

    Additional equipment

    • - Portable electronic steering wheel, RS 232 interface, Automatic Tool Change system.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High spindle speed, rapid advances, precision in positioning and repeatability.
        • - Table surface: 1150x550 mm.
        • - T-slots: 18x5x100 mm.
        • - Allowable weight on table: 1090 kg.
        • - Distances: from spindle to table 150 ~ 800 mm, from center of table to column 550 mm.
      • Qualitative Machine Benefits:
        • - Robust construction and precision engineering.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
