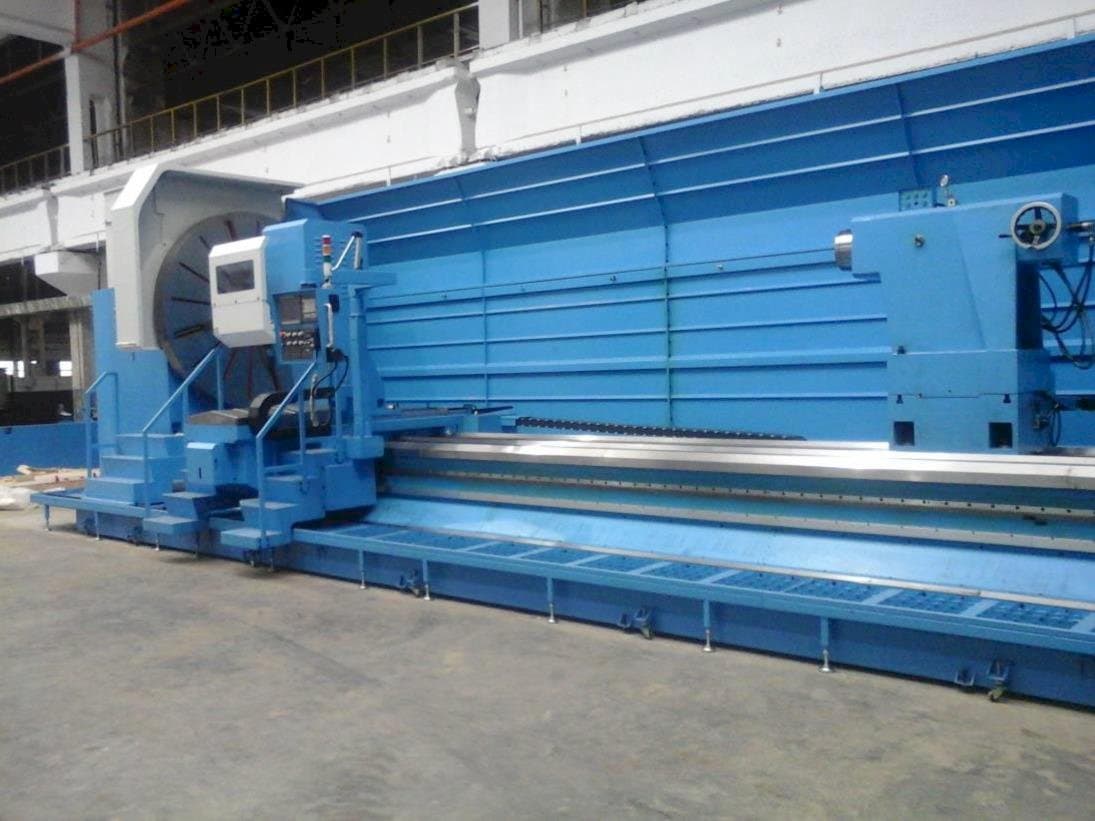

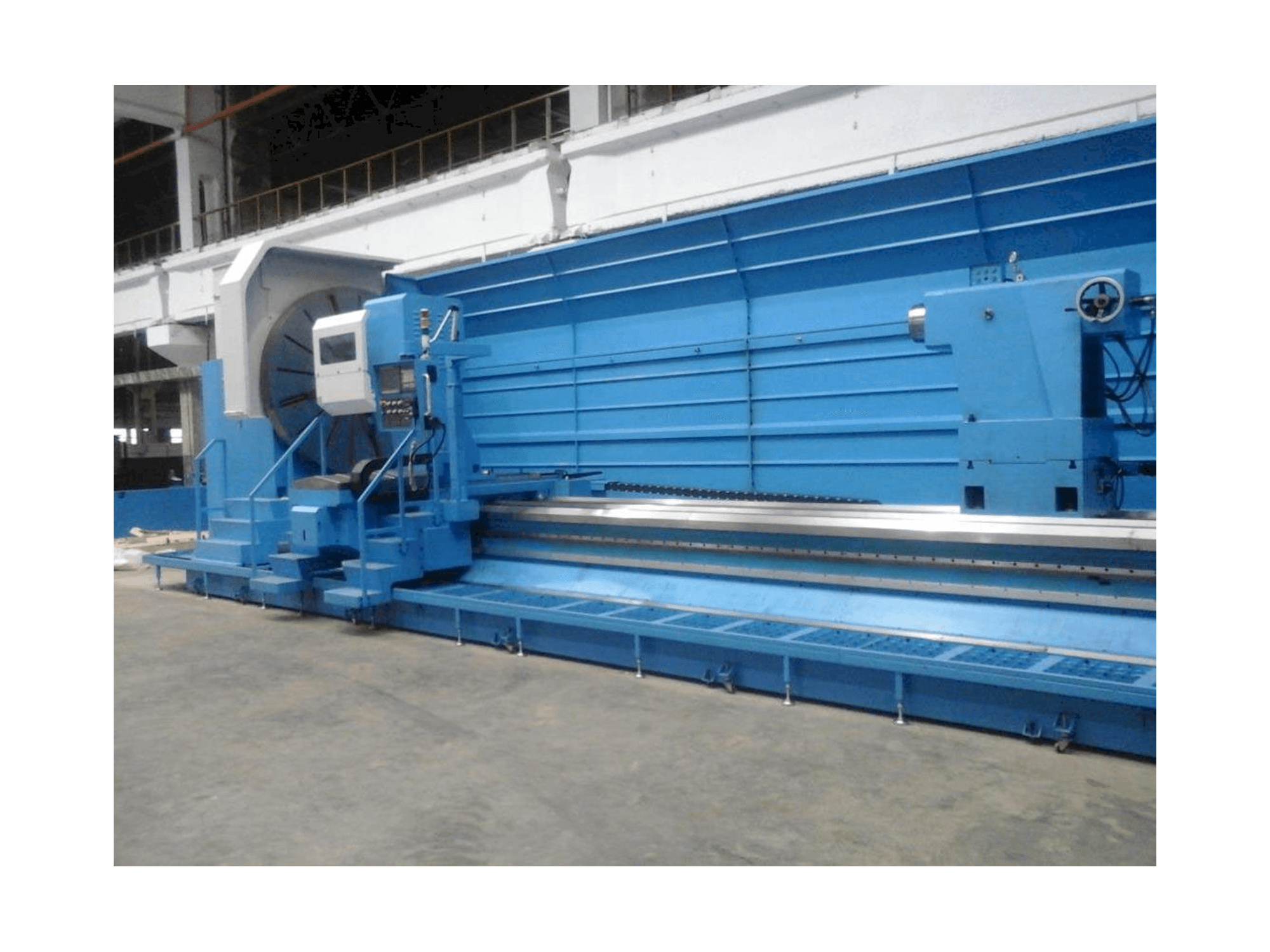

Front view of Takang FB100Nx7600 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Takang FB100Nx7600

Takang - FB100Nx7600RO-TUR-TAK-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Takang FB100Nx7600 Lathe

Show in original language

This Takang FB100Nx7600 Lathe was made in 2014. It is equipped with a Fanuc 0i CNC control unit. The machine has a spindle speed of 150 rpm.

Overview

brand: Takang
year: 2014
MODEL: FB100Nx7600
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Takang FB100Nx7600

Control Unit

Model: 0i CNC
Brand: FANUC

Main drive

Spindle speed range: 150 1/MIN

Media

Main electronic connection: 3X380V/ 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing diameter above the guide ways: 2500 mm
- - Maximum swing diameter above the saddle: 2100 mm
- - Distance between centers: 7600 mm
- - Maximum weight between centers: 20 t
- - Faceplate diameter: Ø2200 mm
- - Main motor power: 60/75 kw
- - C axis: continue 360°
- - Milling spindle motor power: 11/15 kw
- - Heidenhain linear scales
- - Faceplate, 1 piece
Qualitative Machine Benefits:
- - Tool turret with 12 posts for milling tools, 1 piece
- - Partial enclosure with chip conveyor
- - Centralized hydraulic and lubrication unit
- - Levelling devices for foundation, 1 set

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
