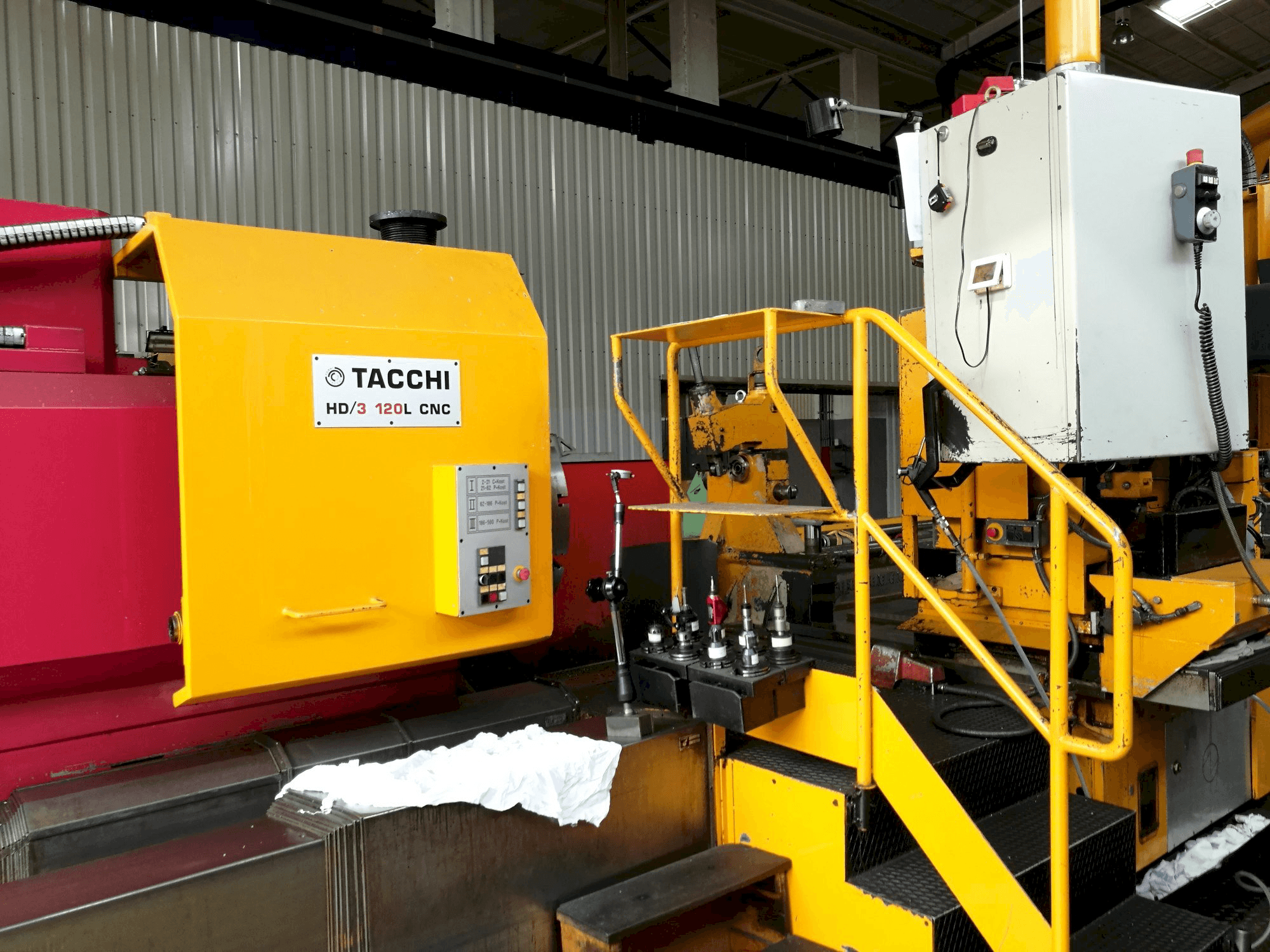

Front view of Tacchi Giacomo HD/3 120 L CNC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TACCHI GIACOMO HD/3 120 L CNC

Photo Gallery

TACCHI GIACOMO - HD/3 120 L CNCAT-TUR-TAC-1996-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Tacchi Giacomo HD/3 120 L CNC Lathe

Show in original language

This Tacchi Giacomo HD/3 120 L CNC Lathe was manufactured in the year 1996 in Italy and has been working for 22000 hours. Equipped with a Siemens Sinumerik 840D Control unit, this machine incorporates 1 turrets.

Overview

brand: TACCHI GIACOMO
year: 1996
MODEL: HD/3 120 L CNC
production hours: 22000
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - TACCHI GIACOMO HD/3 120 L CNC

General Data

Measurements width: 17500 mm
Measurements depth: 3000 mm
Measurements height: 3000 mm
Machine weight: 59500 kg

Control Unit

Model: Sinumerik 840D
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 560 rpm 1/MIN

Movement

X-AXIS Movement: 750 mm
Z-AXIS Movement: 11000 mm

Workpiece

Workpiece drm: 1450/1000 mm
Workpiece z: 11000 mm
Workpiece weight: 16000 kg

Turret

Number of turrets: 1

Tools

Type of tool holder: Milling ISO SK 50

Media

Main electronic connection: 400 V
Power consumption: 160 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Little working hours

Technical Machine Benefits

11000mm long working area
Very stable machine
Turning & milling operations

Machine History

Industries

Petrochemical

End product

Pipes

Material type

Mangan austhentitic steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
