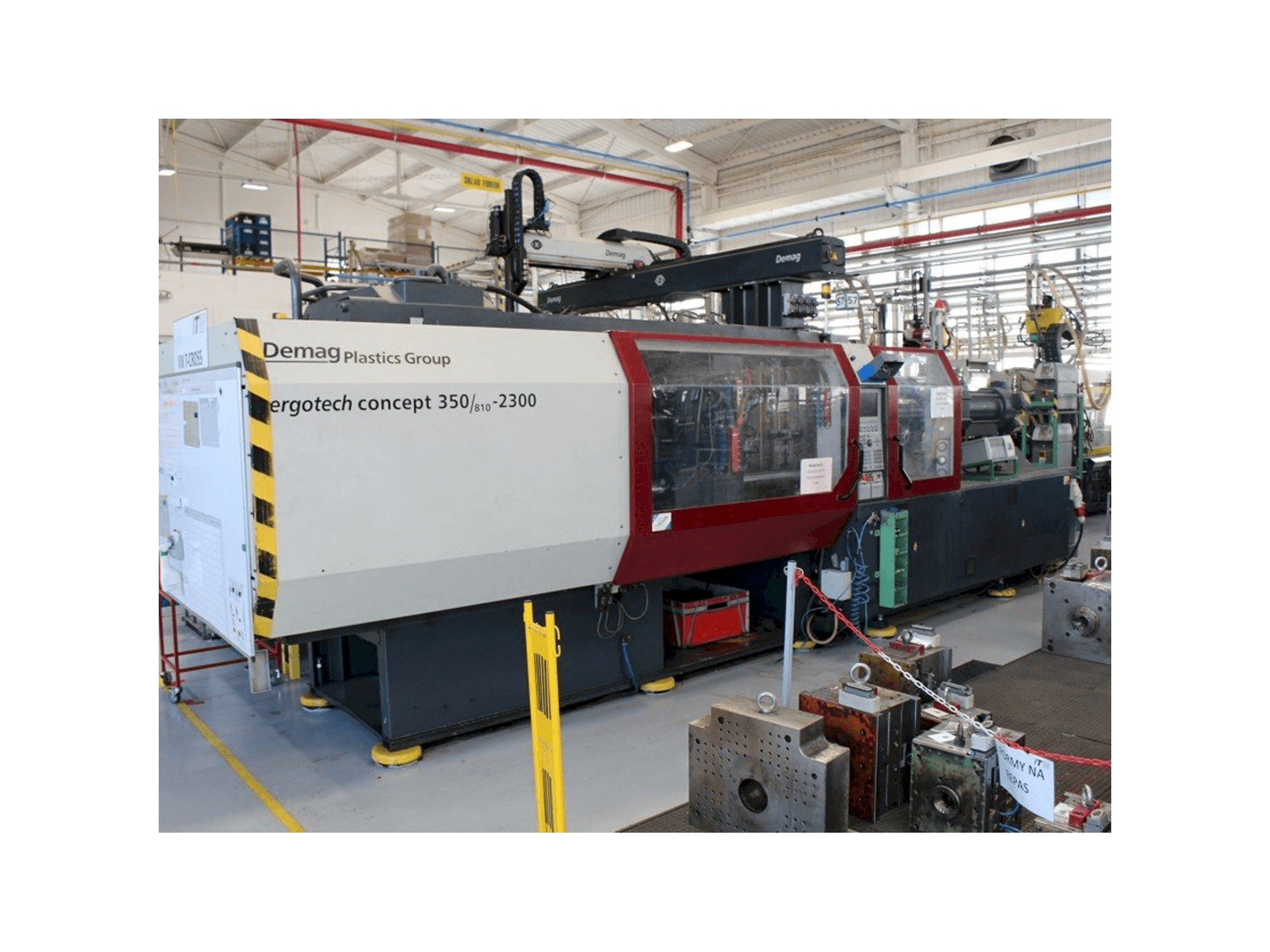

Left side view of DEMAG Ergotech 350/810-2300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SUMITOMO SHI DEMAG Ergotech 350/810-2300

Photo Gallery

SUMITOMO SHI DEMAG - Ergotech 350/810-2300CZ-INJ-DEM-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
DEMAG Ergotech 350/810-2300 Injection moulding machine

Show in original language

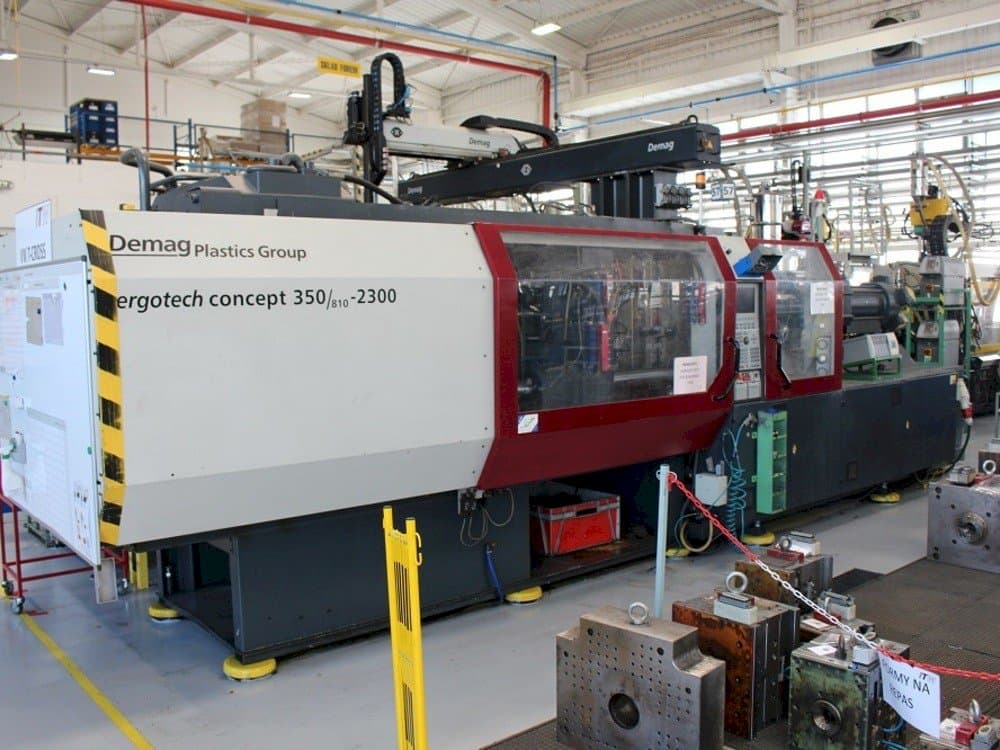

This DEMAG Ergotech 350/810-2300 Injection moulding machine was made in the year 2003 in Germany and has 86200 pump hours. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 3500 kN and has an integrated Demag DR631-0399 robot.

Overview

brand: SUMITOMO SHI DEMAG
year: 2003
MODEL: Ergotech 350/810-2300
production hours: 86200
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG Ergotech 350/810-2300

Dimensions

Machine Depth: 2200 mm
Machine Height: 4500 mm
Machine Weight: 20000 kg

Technical Specification

Clamping Force: 3500 kN
Max. Shot Weight: 1090 g
Screw Diameter: 70 mm

Additional Information

Additional equipment

The machine has an integrated Demag DR631-0399 robot.
Robot interface: Euromap E 67

Machine Benefits

Technical Machine Benefits

Tie bar spacing (h): 810 mm
Tie bar spacing (v): 710 mm
Platen length: 1200 mm
Platen width: 1100 mm
Number of cores: 2
Opening of the press: 710 mm
Mould size: 380

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
