➤ Used Star SR-32J For Sale | gindumac.com

Show in original language

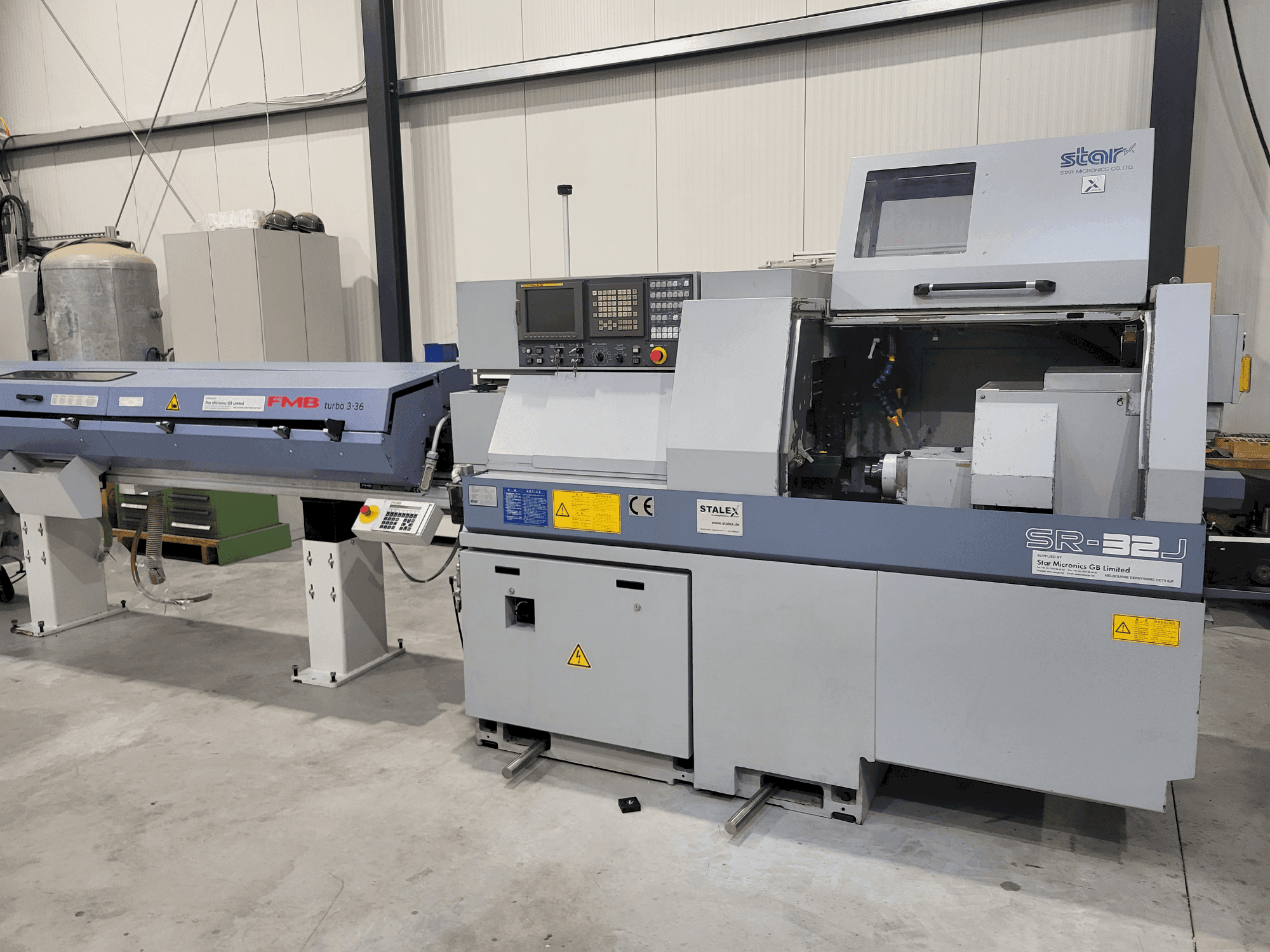

This 3-axis Star SR-32J swiss type turning machine was manufactured in 2007. It features a FANUC control system, FMB bar loader, and a maximum machining diameter of 32mm. The machine offers a rapid feed rate of 24m/min and a main spindle speed up to 7,000min. Ideal for high precision turning, it includes a coolant tank capacity of 174 liters. Contact us for more information about this machine.

Overview

brand: Star
year: 2007
MODEL: SR-32J
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
availability: Immediately

Technical Information - Star SR-32J

General Data

Measurements width: 1275 mm
Measurements depth: 2711 mm
Measurements height: 1705mm

Main drive

Spindle speed range: 7000 1/MIN
Spindle motor power: 5.5kw
Stroke: 310 mm
Number of axis: 3

Movement

X-AXIS Rapid traverse: 24m/min
Y-AXIS Rapid traverse: 24m/min
Z-AXIS Rapid traverse: 24m/min

Additional equipment

- With FMB bar loader

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum machining diameter: 32mm
- - Number of tools: 4~15 tools (including op)
- - Tool shank dimensions: 6mm x 95~155mm
- - Maximum drilling capability: 13mm
- - Maximum tapping capability: m12xp1. 75
- - Maximum die cutting capability: m10xp1. 5
- - Power-driven attachment maximum drilling capability: 8mm
- - Maximum tapping capability with power-driven attachment: m6xp1. 0
- - Maximum milling capability: 10mm
- - Main spindle indexing angle: c-axis control (15* : op)

Extra information

- Coolant Tank Capacity: 174 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
