Star SB12 RG

Photo Gallery

Star - SB12 RGDE-TUR-STA-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Star SB12 RG Swiss Type Turning

Show in original language

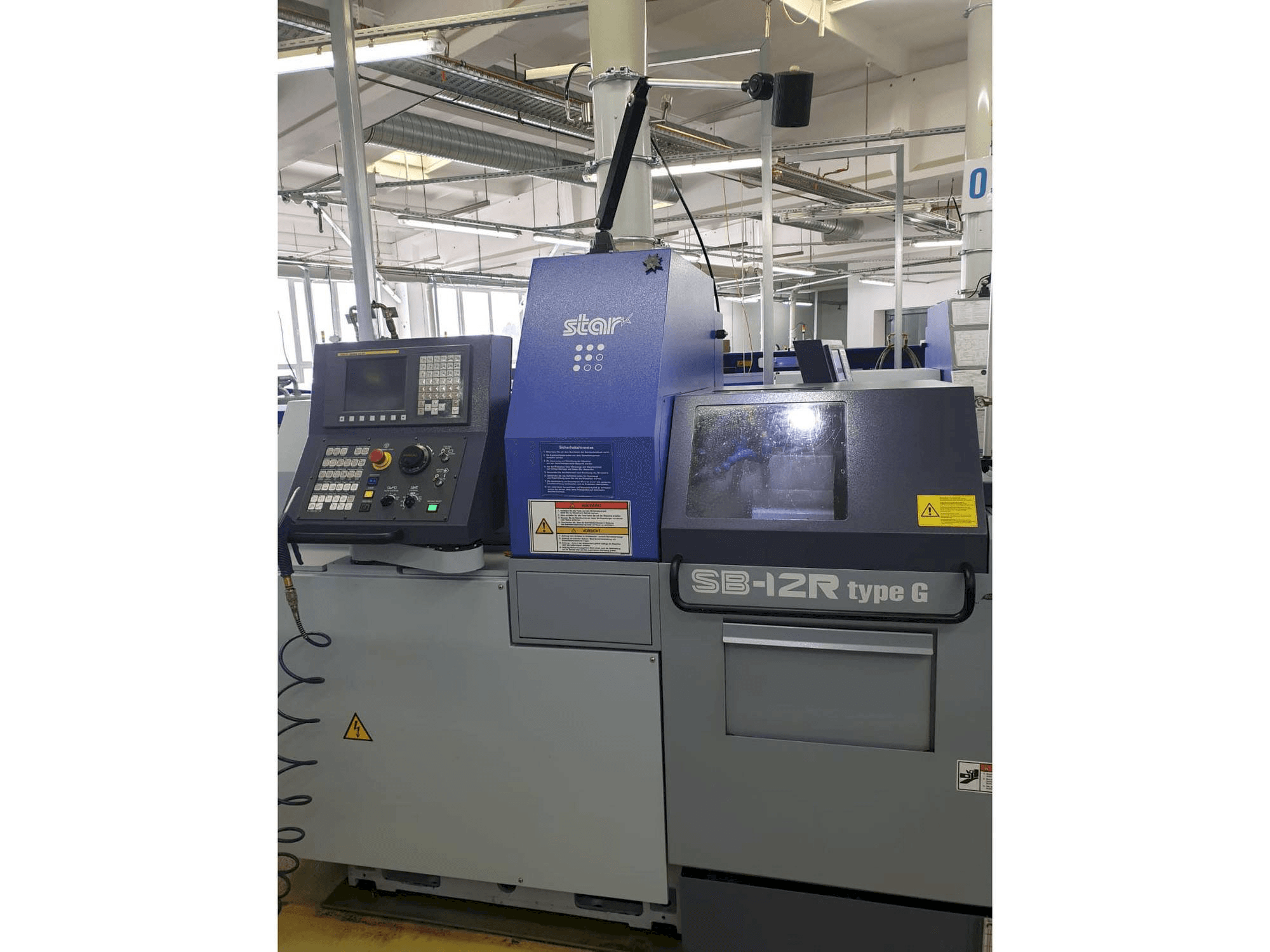

This Star SB12 RG Swiss Type Turning was made in 2021 in Japan. It is equipped with a Fanuc Series Oi-TF control unit and has 7 axis. The machine has a spindle speed of 15000 rpm. In total it operated 6620h switch-on hours and 2393h feed hours.

Overview

brand: Star
year: 2021
MODEL: SB12 RG
production hours: 2393
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Star SB12 RG

General Data

Measurements width: 2070 mm
Measurements depth: 1177 mm
Measurements height: 1760 mm
Machine weight: 1750 kg

Control Unit

Brand: FANUC
Model: Series oi-TF

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 3.7kW
Number of axis: 7

Additional Information

Additional equipment

Without a high-pressure system, not prepared for high pressure (only equipped with spindle flushing through the coolant supply

Machine Benefits

Qualitative Machine Benefits

Switch-on hours 6620h
Feed hours 2393h

Technical Machine Benefits

Diameter 12mm / 13mm (option)
Headstock stroke 205 mm / 30 mm (short turner)
7-fold turning tool holder on linear slide
4 (5) + α driven tools for transverse machining on linear slides
4-fold drilling unit including drilling fixtures (front/rear)
4 + α tools for backside processing including drilling holders with drive
Max rapid traverse speed35 m/min
Coolant tank capacity 180 liters

Extra Information

bar loader not included, but for sale if interested

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
