SPINNER - TC800 DE-TUR-SPI-2009-00001

Rs. 7,462,031
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

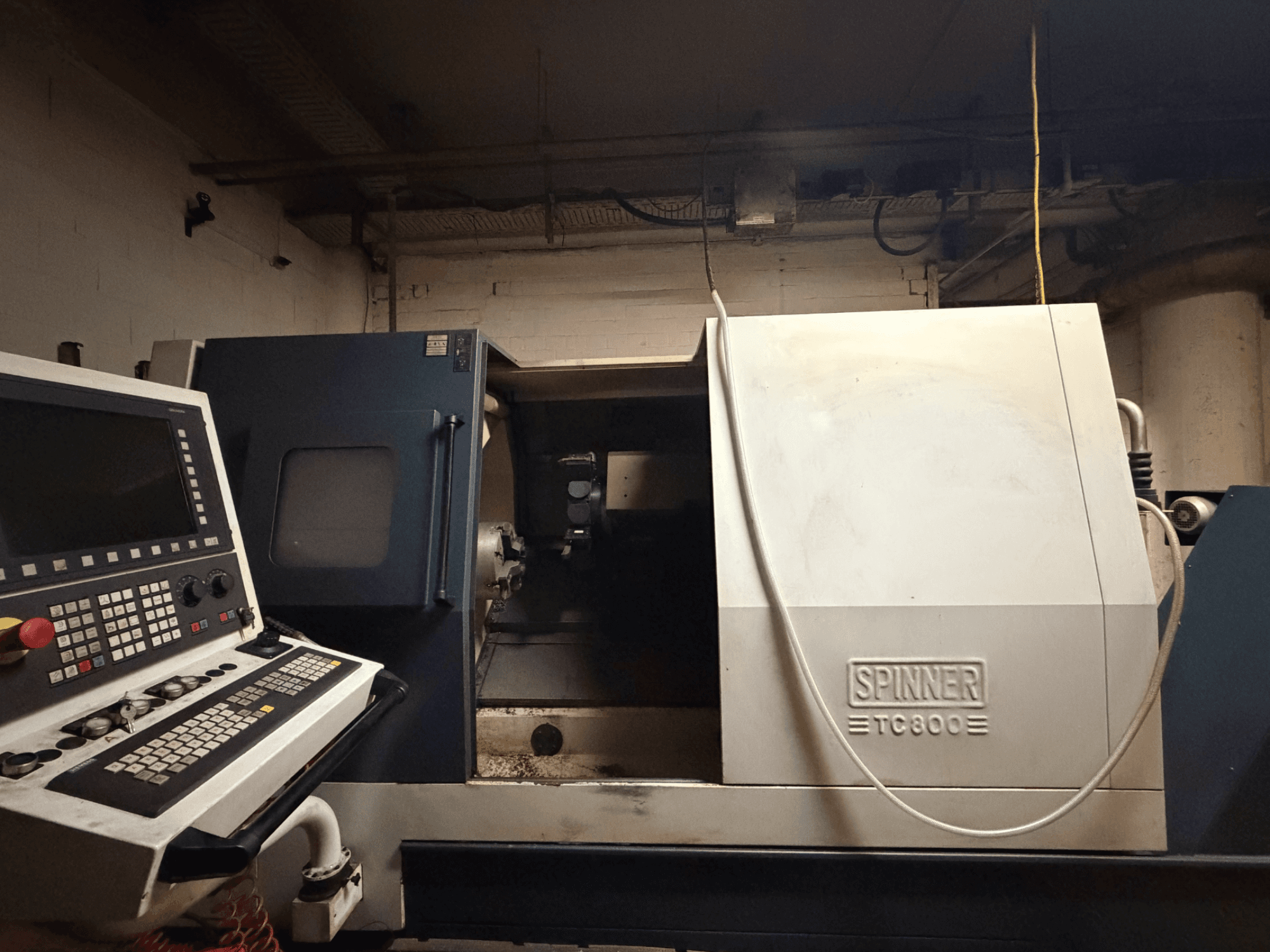

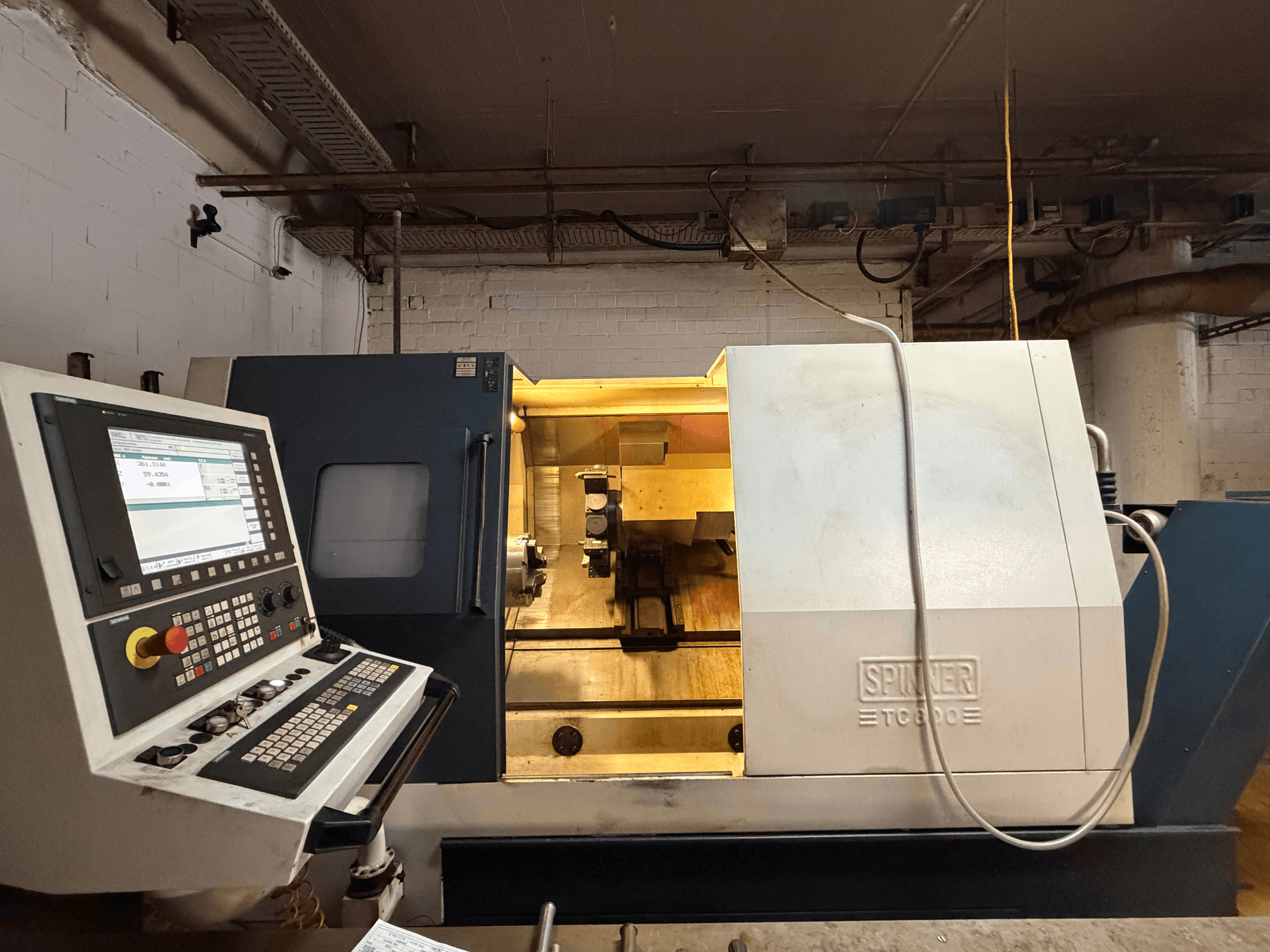

This 4-axis SPINNER TC800 was manufactured in 2009. It features a radial turret and is equipped with Siemens control, ensuring reliable operation. With approximately 1,000 operating hours, this machine has been barely used. If you are looking to get high-quality turning capabilities, consider the SPINNER TC800 horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: SPINNER
  • year: 2009
  • MODEL: TC800
  • production hours: 1000
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • control unit brand: SIEMENS

Technical Information - SPINNER TC800

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840D Solution Line

Movement

  • Number of Axes: 4
  • X-axis Travel: 360 mm
  • Z-axis Travel: 980 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes

Additional Information

  • Control: Siemens 840D Solution Line

  • X-axis travel: approx. 360 mm

  • Z-axis travel: approx. 980 mm

  • Rapid traverse X-axis: approx. 18 m/min

  • Rapid traverse Z-axis: approx. 24 m/min

  • Main spindle speed: up to approx. 4000 rpm

  • Main spindle power: approx. 24 kW (100%)

  • Main spindle power: approx. 33 kW (40%)

  • Spindle nose: A8

  • Bar capacity: approx. 77 mm

  • Counter spindle: Yes

  • Counter spindle speed: up to approx. 5000 rpm

  • Counter spindle power: approx. 15 kW

  • Counter spindle spindle nose: A6

  • Counter spindle bar capacity: approx. 52 mm

  • Tool turret type: VDI 50

  • Number of tool stations: 12

  • Driven tools: Yes

  • Number of driven tools: up to 12

  • Driven tool speed: up to approx. 4000 rpm

  • Maximum turning diameter: approx. 500 mm

  • Maximum swing over bed: approx. 800 mm

  • Maximum turning length: approx. 800 mm

  • Tailstock: Yes

  • Tailstock taper: MK4

  • Tailstock stroke: approx. 100 mm

  • Tailstock force: approx. 8500 N

  • Voltage: 400 V

  • Frequency: 50/60 Hz

  • Control voltage: 24 V DC

  • Compressed air pressure: approx. 6–10 bar

  • Hydraulic pressure: approx. 70 bar

  • Chip conveyor: Yes

  • Coolant system: Yes

  • Hydraulic unit: Yes

  • Electrical cabinet: Yes

  • Radial turret

  • No quill

  • Barely used, approximately 1,000 operating hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
