SPINNER TC600

Photo Gallery

SPINNER - TC600DE-TUR-SPI-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER TC600 For Sale | gindumac.com

Show in original language

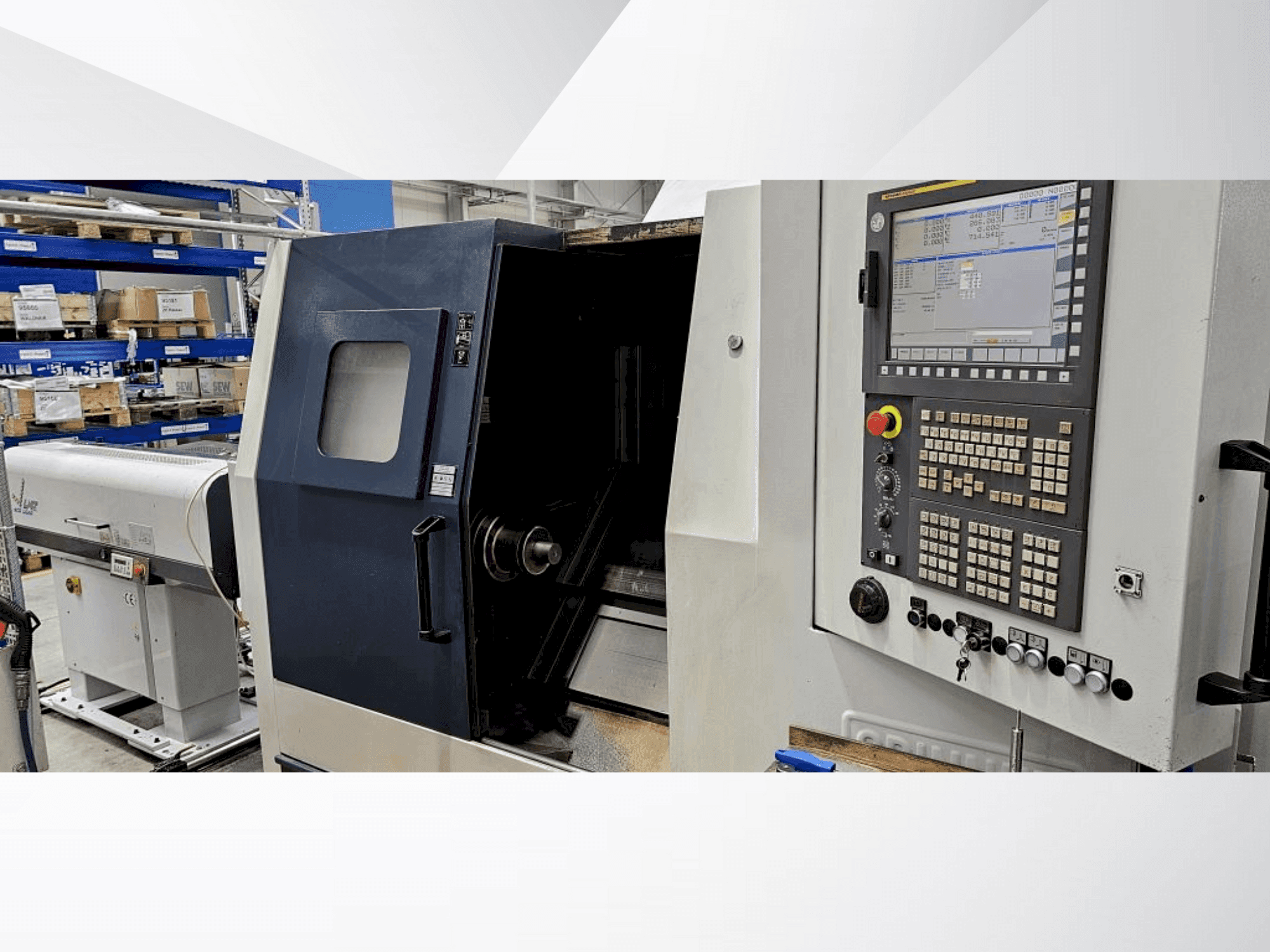

This 3-axis SPINNER TC600 horizontal turning machine was manufactured in 2007. It features a GE Fanuc 31iTA control system, a 16-position revolver, and a spindle speed of up to 4,000 rpm with a power output of 22kW. The travel range is X=275mm, Y=700mm. It includes a high-pressure pump, tool setter, and a chip conveyor, enhancing its operational efficiency. If you are looking to get high-quality turning capabilities consider the SPINNER TC600 machine we have for sale. Contact us for more information.

Overview

brand: SPINNER
year: 2007
MODEL: TC600
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SPINNER TC600

Control Unit

Control Brand: FANUC
Control Model: 31iTA

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Includes software options for side machining and turning operations
Turret: 16-position revolver for tool holders according to DIN69830/30mm / 16 tool stations for milling and drilling operations
Tail Stock: CNC Tailstock Kir TC600 series
Approximately 30 different VDI30 tools included
Tool setter for TC600
Hydraulic hollow clamping cylinder with infinitely adjustable clamping forces
Electrical interface for connection of bar feeders
Full splash guard and coolant system
Work area light and pneumatic extraction system

Machine Benefits

Technical Machine Benefits

Chip conveyor for tg800
High-pressure pump, 13 bar
Two-tone paint ral 7035/5008
Documentation includes manuals in paper and digital forms
