SPINNER TC600-65-MCY

Photo Gallery

SPINNER - TC600-65-MCYDE-TUR-SPI-2022-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER TC600-65-MCY Lathe For sale | gindumac.com

Show in original language

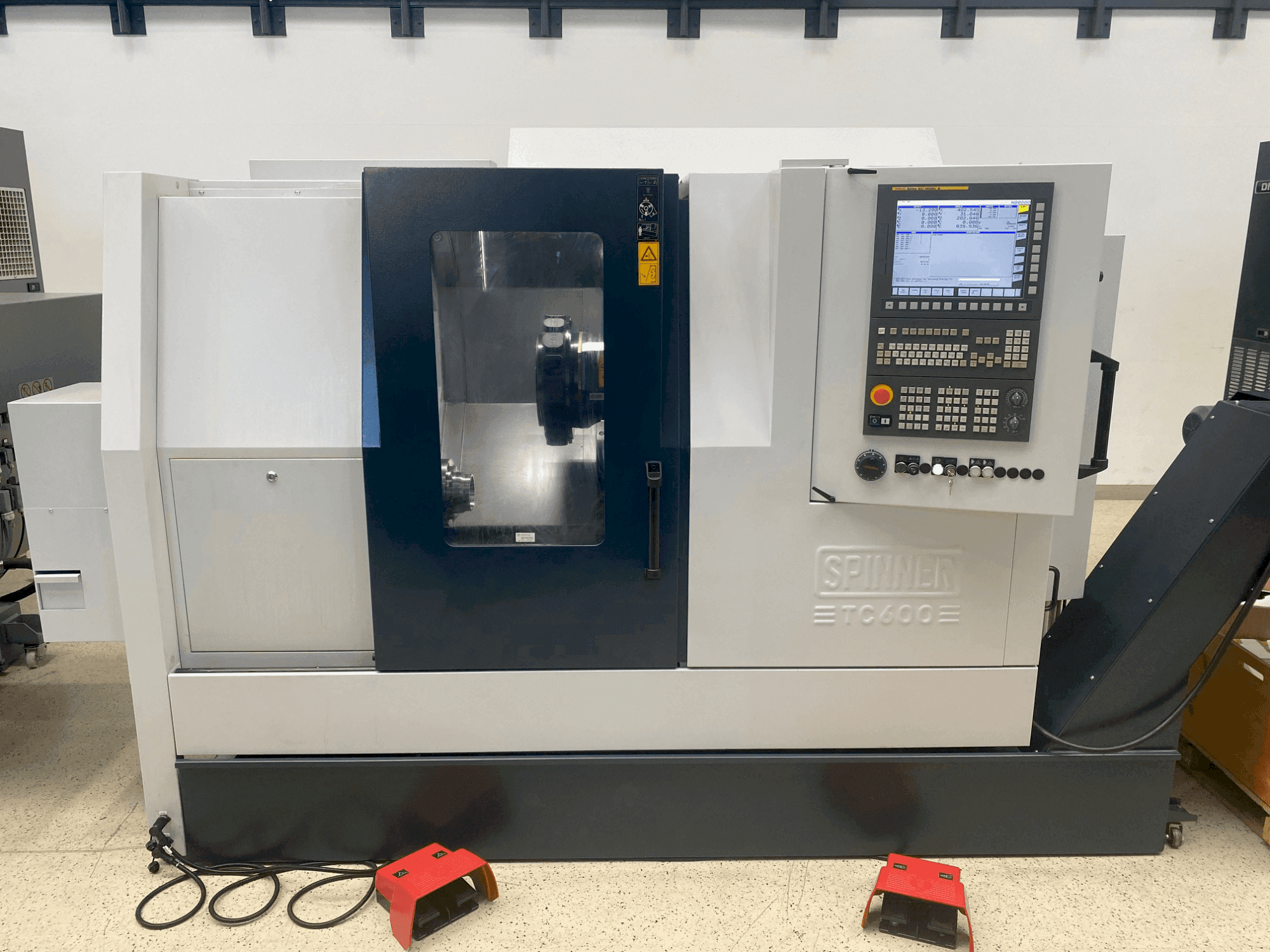

This 4-axis SPINNER TC600-65-MCY lathe was manufactured in 2022. Equipped with a Fanuc 32i TB control system, it features a main and counter spindle speed up to 4000 rpm, driven tools at 6000 rpm, and a 16-position tool turret. It supports a bar passage of 65mm and has a maximum turning length of 650mm. Ideal for precision tasks, the SPINNER TC600-65-MCY machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: SPINNER
year: 2022
MODEL: TC600-65-MCY
production hours: 223
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SPINNER TC600-65-MCY

Control Unit

Control Brand: FANUC
Control Model: 32i TB

Dimensions

Machine Weight: 5800 kg

Movement

X-axis Travel: 700 mm
Y-axis Travel: 50 mm
Z-axis Travel: 275 mm

Additional Information

Additional equipment

Hainbuch Spanntop Mini Axzug 65 A8 collet chuck
Chip conveyor
16-position tool turret
Tailstock
Foot switch
15 bar high-pressure pump

Machine Benefits

Qualitative Machine Benefits

Low operational hours, high-pressure pump for efficient operations

Technical Machine Benefits

Spindle speed range: 4000 rpm (main/counter spindle), 6000 rpm (driven tools)
High spindle speeds, advanced control system, robust build

Extra Information

Traverse paths: Y +50/-40, X 700, Z 275 Bar passage: 65mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
