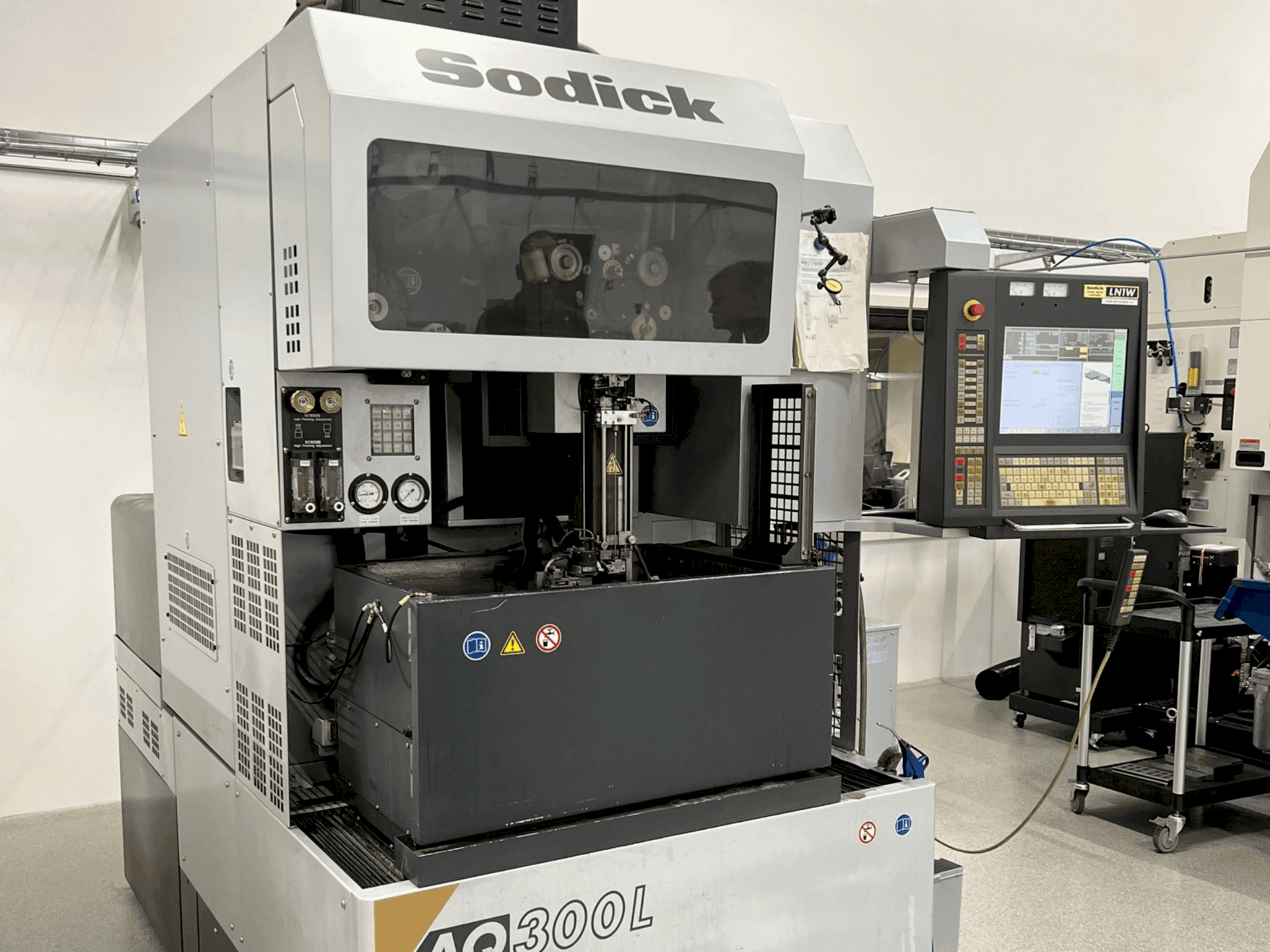

Front view of Sodick AQ300L  machine

Sodick - AQ300LDK-EDM-SOD-2007-00001

Rs. 2,674,150
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Sodick AQ300L wire EDM machine was manufactured in 2007. It features a travel range of 300 mm x 200 mm on the X and Y axes, and a Z-axis travel of 200 mm. The machine can handle workpieces up to 300 kg and offers a taper angle of ±20°. Ideal for precision machining with wire diameters ranging from 0.15 to 0.3 mm. If you are looking to get high-quality EDM capabilities, consider the Sodick AQ300L machine we have for sale. Contact us for more information.

Overview

  • brand: Sodick
  • year: 2007
  • MODEL: AQ300L
  • application type: EDM
  • Location: Denmark
  • machine type: Wire EDM Machine
  • availability: Immediately

Technical Information - Sodick AQ300L

General Data

  • Measurements width: 2400 mm
  • Measurements depth: 1300 mm
  • Measurements height: 2210 mm
  • Machine weight: 2700 kg

Main drive

  • Number of axis: 5

Movement

  • X-AXIS Movement: 300 mm
  • Y-AXIS Movement: 200 mm
  • Z-AXIS Movement: 200 mm
  • V-Axis Movement: 80 mm
  • U-Axis Movement: 80 mm

Workpiece

  • Workpiece weight: 300 kg

    Additional equipment

    • - Electric Tank External Dimensions (W x D x H): 1300 mm x 900 mm x 2186 mm
    • - Electric Tank Weight (Empty): 550 kg
    • - Electric Tank Capacity: 380 liters
    • - Electric Tank Deionizer: Ion-exchange resin (10-liter type)
    • - Electric Tank Filtering System: 2 replaceable paper filters (internal-pressure type)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum height of workpiece: 200 mm (general), 180 mm (submerge)
        • - Work table size (w x d): 536 mm x 337 mm
        • - Work tank dimensions (w x d): 750 mm x 500 mm
        • - Distance from floor to table top: 1000 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
